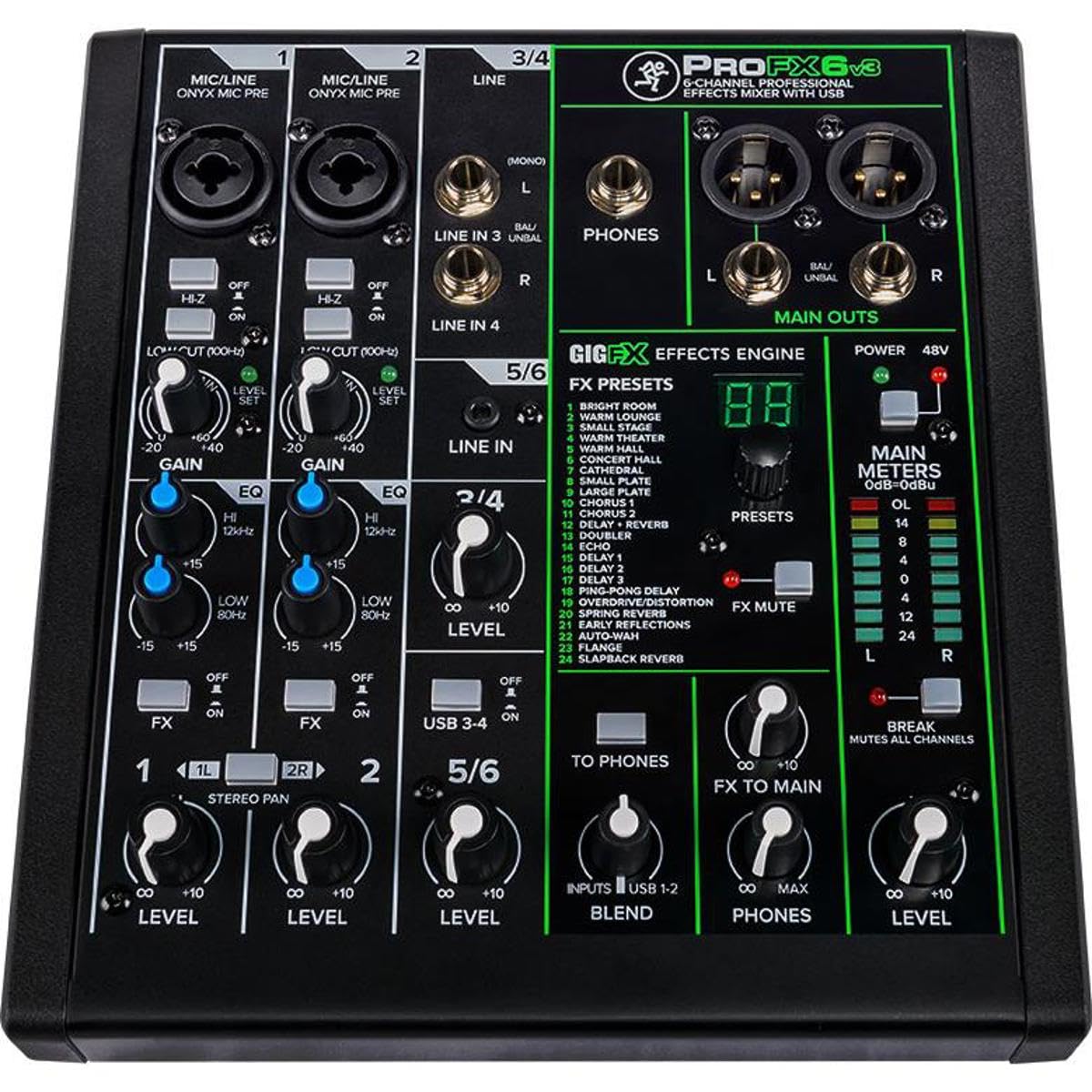

Mackie ProFX6v3 6-Channel Analog USB Mixer

The Mackie ProFX6v3 is a compact 6-channel analog mixer with a built-in USB audio interface for small live systems, desktop recording, streaming, and content production. It brings microphones, instruments, stereo line sources, and computer playback into a single hands-on control surface. This format suits solo performers, podcasters, musicians, and creators who need straightforward source control without a large mixer.

Channels 1 and 2 use Mackie Onyx microphone preamps with up to 60 dB of gain. Each accepts a microphone or line-level source through its combo input, and switchable Hi-Z operation lets a guitar or bass connect directly by 1/4-inch cable. The preamps are designed for clean gain staging across voice, acoustic instruments, and direct instrument sources.

The mixer uses 2-band shelving EQ on channels 1 and 2, with low control centered at 80 Hz and high control centered at 12 kHz. A 100 Hz low-cut filter on the mic channels helps reduce low-frequency rumble before it reaches the main mix. Global 48V phantom power supports compatible condenser microphones connected to the mic inputs.

Its USB 2.0 interface operates at 24-bit resolution and supports 44.1, 48, 96, and 192 kHz sample rates. The 2x4 USB design records a stereo mix to a Mac or PC while providing two stereo computer-return paths. A dedicated blend control allows headphones to mix live inputs with computer playback for direct, latency-free monitoring.

The built-in GigFX processor supplies 24 effects presets, including room, hall, plate, delay, chorus, echo, flange, and more. Balanced XLR and 1/4-inch main outputs can feed powered speakers, amplifiers, or other line-level equipment. With its small 7.5-inch-wide footprint, the ProFX6v3 works well as the front end of a compact PA, recording desk, or streaming station.

Key Features

• Two Onyx Mic Preamps: Delivers up to 60 dB of gain for microphones and low-level sources.
• Switchable Hi-Z Inputs: Lets guitars and basses connect directly to channels 1 and 2.
• 24-Bit/192 kHz USB: Supports high-resolution stereo recording and computer playback.
• GigFX Effects Engine: Provides 24 onboard effects presets without requiring external processing.
• Direct Monitoring Blend: Mixes live signals and DAW playback in headphones without monitoring latency.
• 100 Hz Low-Cut Filter: Helps reduce rumble and unwanted low-frequency buildup on mic channels.

Design & Installation

The ProFX6v3 is a desktop-format analog mixer measuring 7.5 inches wide, 8.4 inches deep, and 2.9 inches high. Channel controls use compact rotary level controls rather than long-throw faders, keeping the layout efficient for close-range operation. Two eight-segment main meters provide left/right level indication from -24 dBu through overload.

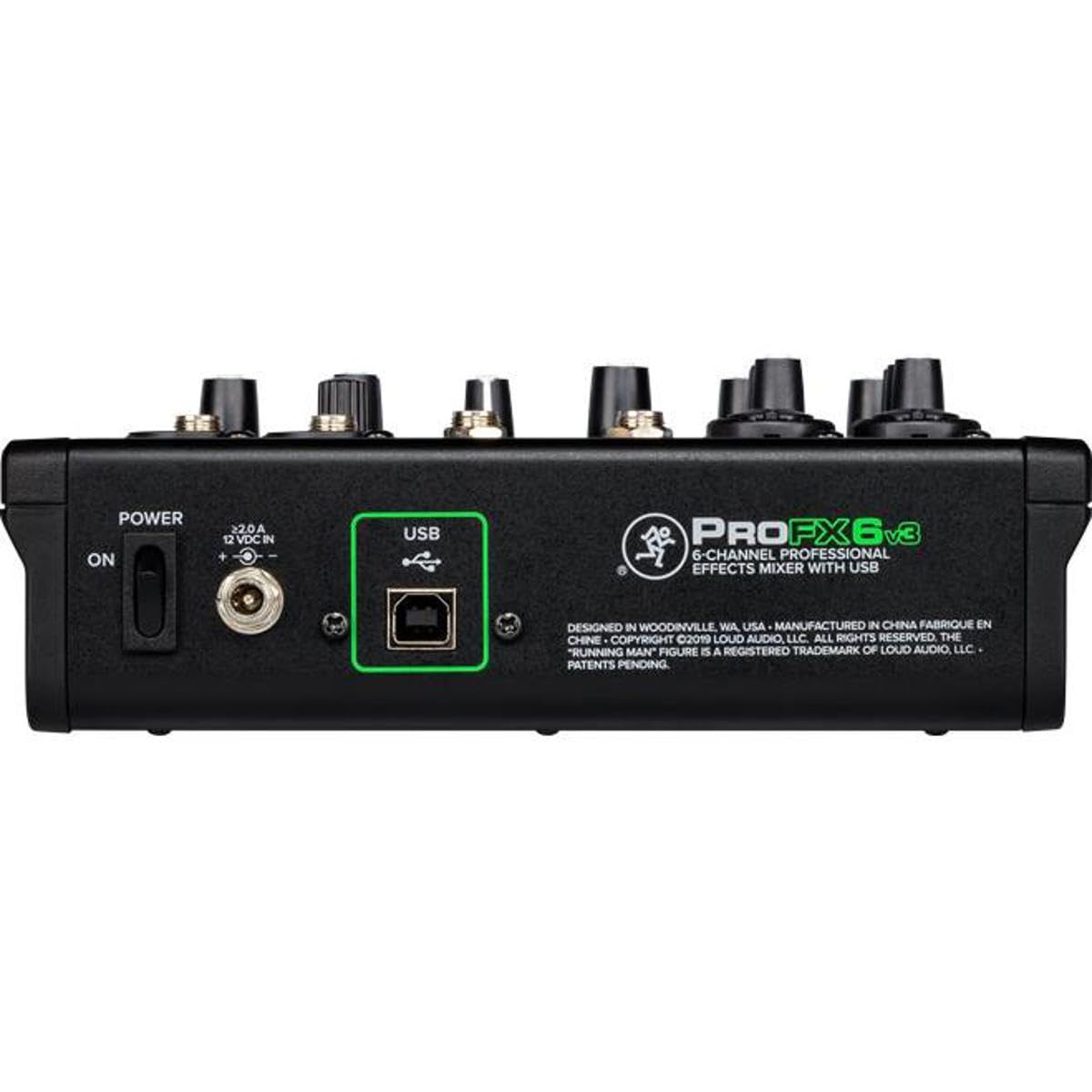

Connect microphones, line-level gear, or Hi-Z instruments to channels 1 and 2, then connect a stereo source to the 1/4-inch inputs or 1/8-inch stereo input as needed. Run the balanced main outputs to powered speakers, an amplifier, or other line-level equipment, and connect a computer through USB for recording and playback. The mixer uses a locking 12V DC, 2A external wall-mount power adapter and can be fitted to a microphone stand with the optional Atlas AD-11B adapter and specified mounting hardware.
