Emb PX2 1000W 10 Channel Power Mixer Console W/Dsp Effects, Bluetooth, Record

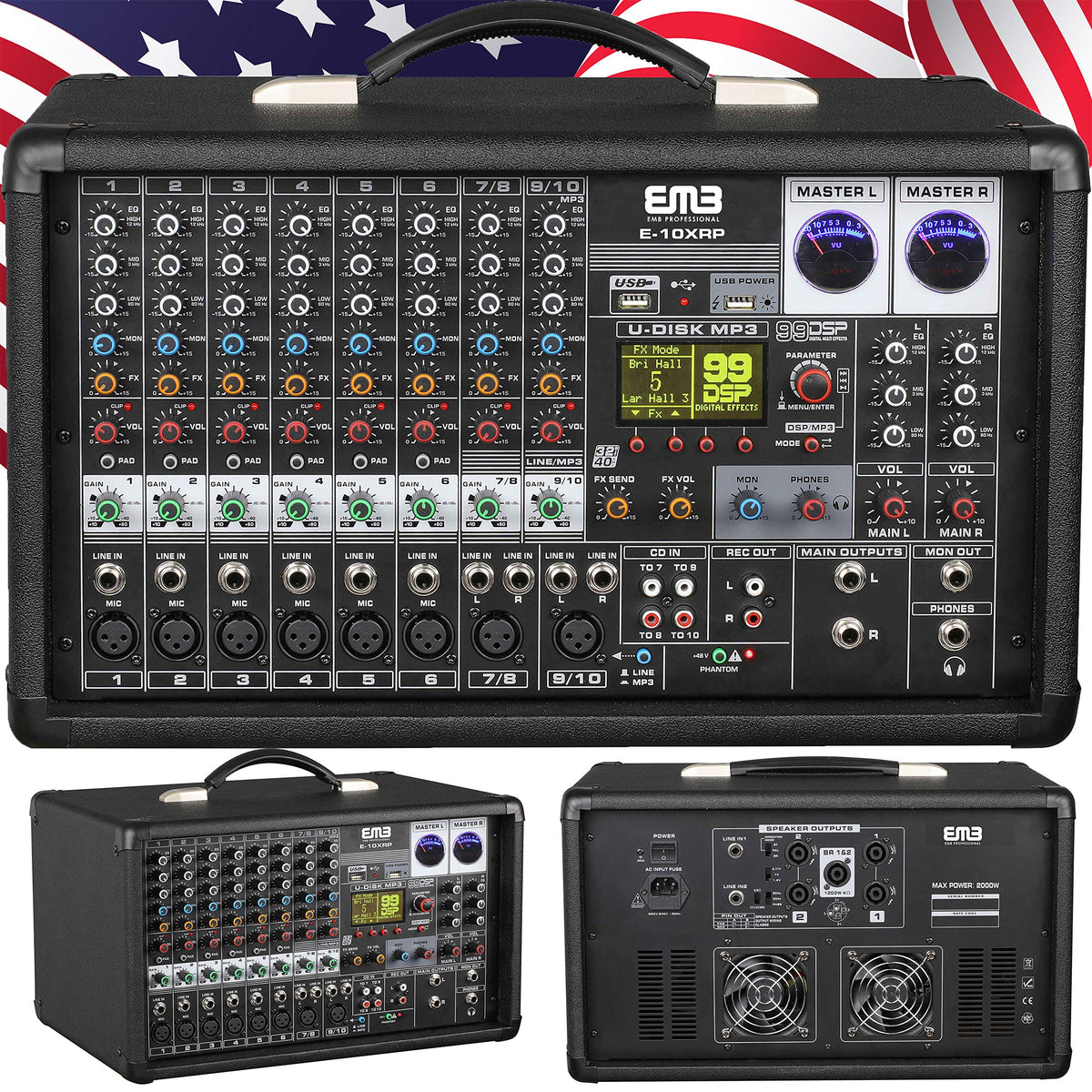

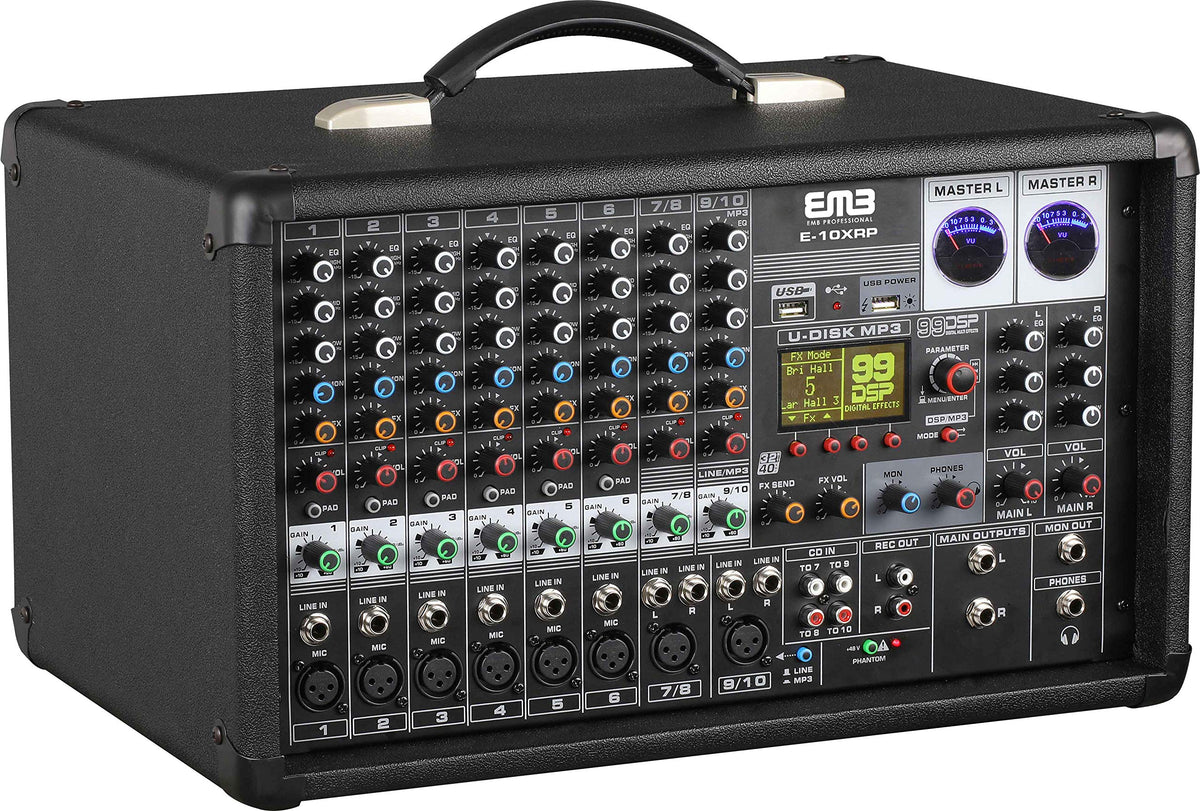

The EMB E-10XRP is a 10-channel powered mixer designed to combine source mixing, signal control, playback, and amplified speaker output in one console. Its built-in amplifier is rated at 500 watts per channel, providing a practical foundation for compatible passive-speaker PA systems. This makes it suited to small live sound setups, rehearsals, presentations, and home recording applications.

Each setup can accommodate multiple microphones and line-level sources through the mixer’s 10-channel format. A +48V phantom-power supply supports compatible condenser microphones, while channel EQ controls provide tonal adjustment before the signal reaches the main mix. Insert points for mono channels and the main output allow external processing to be added where needed.

The E-10XRP includes an internal DSP effects processor for adding effects to a mix without requiring a separate rack processor. Its listed EQ section includes 3-band channel EQ and dual 7-band EQ for additional system tuning. Visual level monitoring is provided for the main output, helping the operator keep an eye on output level during use.

Bluetooth playback and USB MP3 playback give the mixer convenient options for background music, backing tracks, and program material. A digital display supports the onboard MP3 section, and the unit includes MP3 recording capability. A headphone monitor output provides a dedicated listening point for checking the mix.

As a powered console, the E-10XRP can serve as the control center of a compact passive-speaker sound system. AUX outputs with selectable pre/post-fader operation expand routing options for monitor mixes or external effects processors. It is a practical choice for users who need microphone support, playback functions, effects, and amplification in a single mixer.

Key Features

• 500W x 2 Amplification: Built-in two-channel power amplification for compatible passive speakers.
• 10-Channel Mixing: Provides connection and level control for multiple audio sources.
• +48V Phantom Power: Supports compatible condenser microphones without an external phantom supply.
• DSP Effects Processor: Adds onboard effects processing without a separate effects unit.
• Bluetooth and USB MP3: Enables wireless playback and MP3 playback from a USB drive.
• Recording Capability: Supports MP3 recording for capturing a mix.

Design & Installation

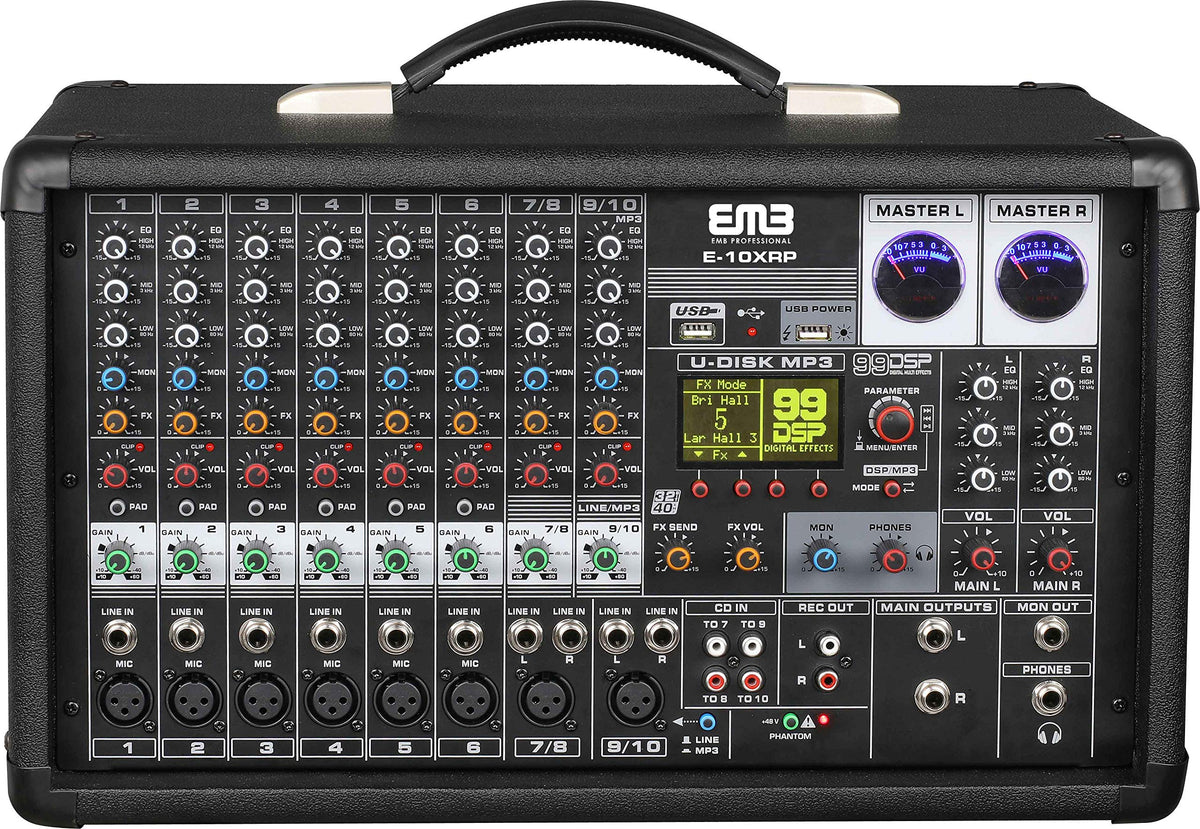

The E-10XRP uses a console-style layout with dedicated channel controls, main-output level monitoring, a digital display, and onboard effects controls. Its powered design combines the mixer and amplifier stages in one unit, reducing the number of separate components needed for a basic PA system. An overload warning lamp is included to indicate overload conditions.

Connect microphones and line-level sources before powering the system, then connect compatible passive speakers to the powered outputs according to the mixer documentation. Use the AUX outputs for monitor or external-processing routing, selecting pre- or post-fader operation as required. The package is listed with a power adapter and manual; review the manual before applying phantom power or connecting speakers.
