Emb MX12BT 99 DSP 12-Channel Audio Mixer Mixing Console MP3 Sound Desk With Bluetooth

The EMB Professional MX12BT is a compact 12-channel audio mixing console for combining microphones, instruments, playback sources, and other line-level audio into a controlled stereo mix. It gives performers, small venues, rehearsal spaces, and content creators hands-on level and tone control without requiring a car stereo or receiver. Connect the mixer to powered speakers, a PA amplifier, or another compatible audio system for sound reinforcement or monitoring.

Its control layout is centered on eight mic/line combo-input channels, each with its own gain, equalization, level, and channel-mode controls. This makes it practical for managing several vocal microphones and instrument sources at once while keeping each source independently adjustable. Stereo input capability expands the mixer’s usefulness for playback devices and other stereo sources.

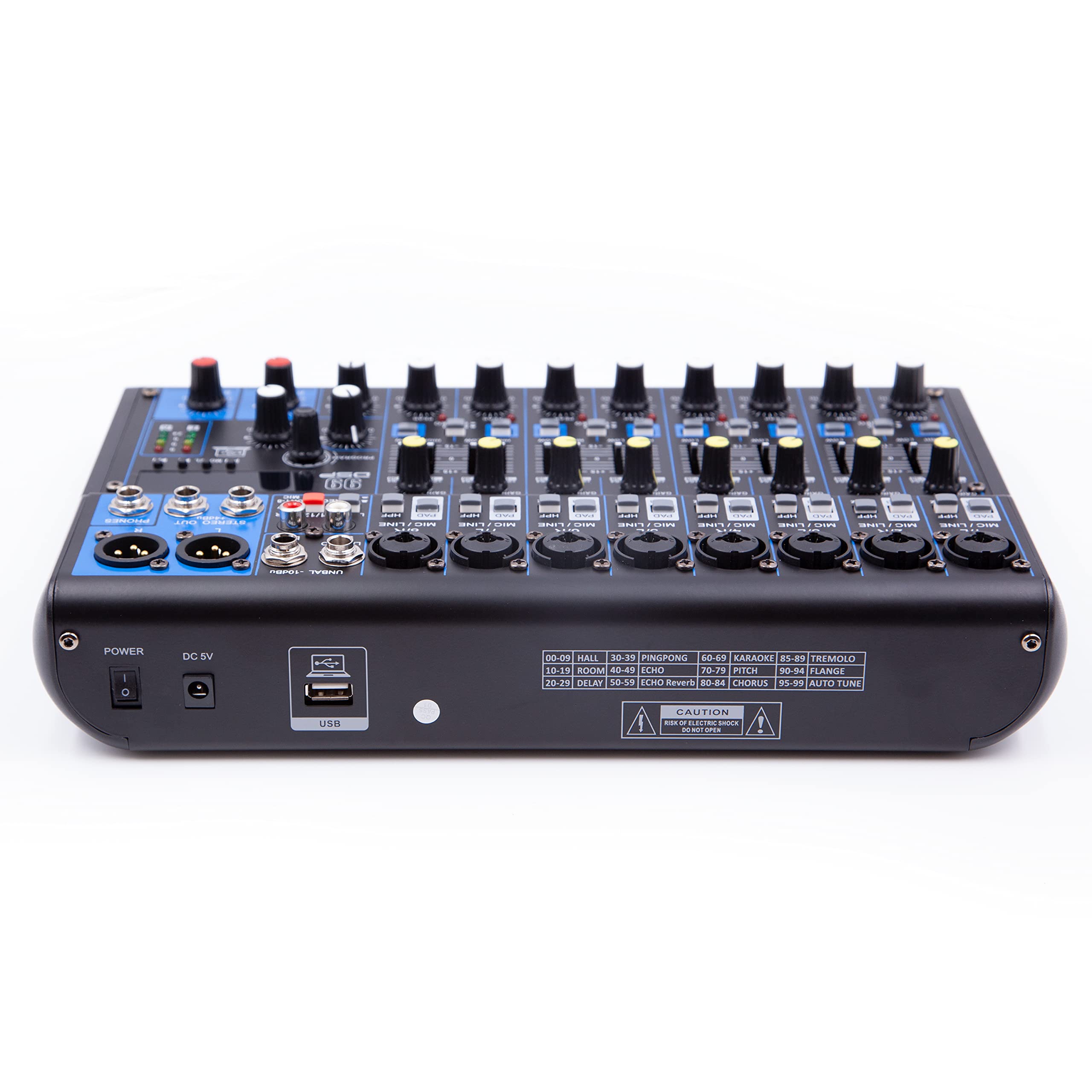

The MX12BT includes a built-in 99-program DSP effects processor for adding selectable ambience and modulation effects to a mix. Effect families printed on the console include hall, room, delay, ping-pong delay, echo, karaoke, pitch, chorus, tremolo, flange, and auto effects. This provides an onboard effects option for vocals and instruments without adding a separate external effects unit.

Bluetooth connectivity and the USB MP3 player section provide convenient playback options for rehearsal tracks, intermission music, or background audio. The USB section includes an LED display and front-panel transport controls for direct operation. A headphone control and stereo LED level meter help the operator monitor signal level while mixing.

For a complete system, pair the MX12BT with microphones, appropriate audio cables, and powered PA speakers or a separate power amplifier and passive speakers. Its XLR main outputs support connection to compatible professional audio equipment, while 48V phantom power is available for compatible condenser microphones. It is a standalone pro-audio mixer rather than an in-dash automotive head unit.

Key Features

• 12-Channel Mixing: Provides a compact console format for managing multiple audio sources.
• Eight Mic/Line Inputs: Combo input channels accommodate microphones and compatible line-level sources.
• 99 DSP Programs: Built-in selectable effects add processing without an external effects unit.
• Bluetooth Playback: Stream compatible wireless audio to the mixer for convenient playback.
• USB MP3 Player: Play compatible USB media using the onboard display and controls.
• 48V Phantom Power: Supports compatible condenser microphones connected through XLR inputs.

Design & Installation

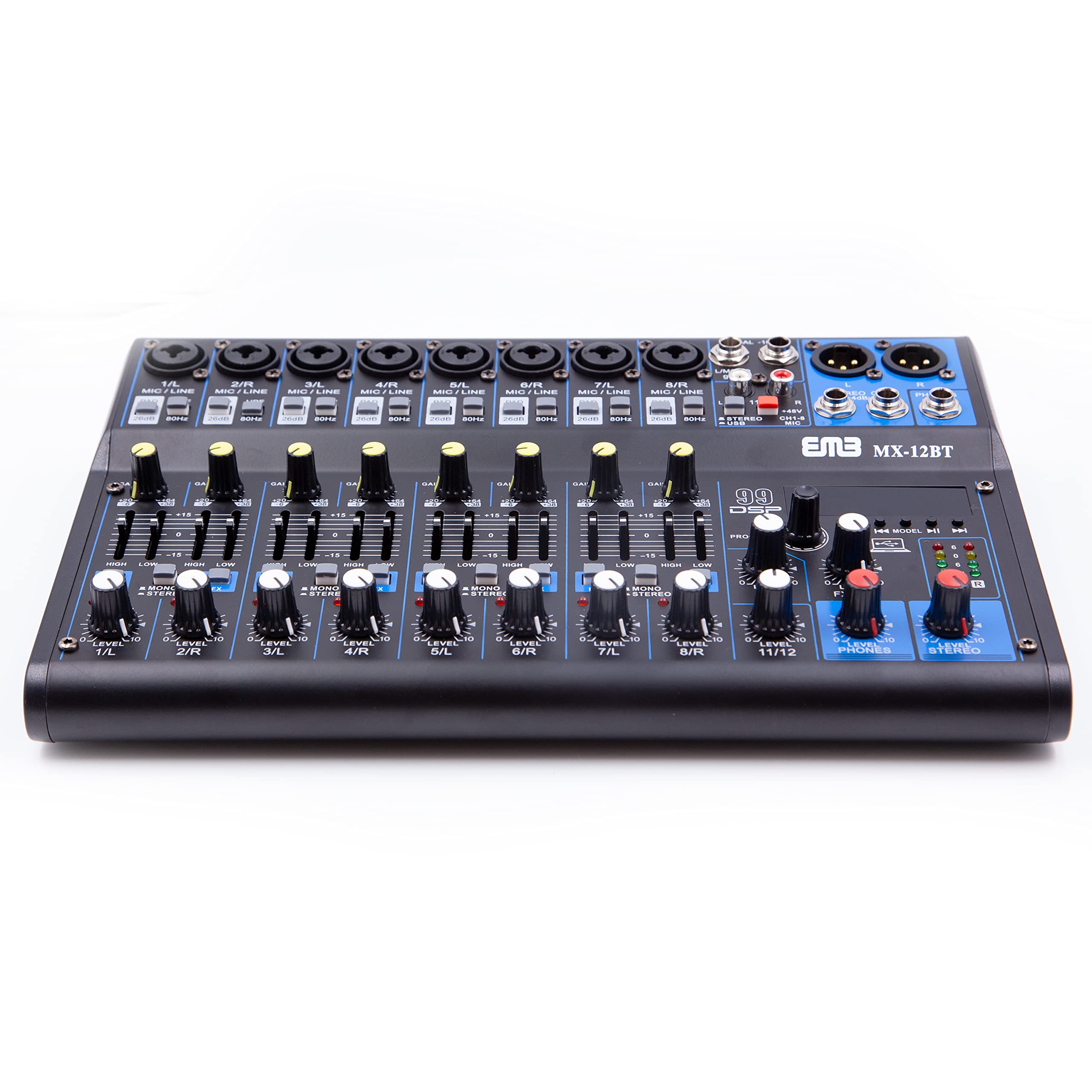

The MX12BT uses a compact desktop-console layout with a black enclosure, clearly grouped input connectors, rotary controls, illuminated display sections, and individual channel controls. Its front panel provides dedicated gain, high/low EQ, level, and mono/stereo controls across the mic/line channels. A stereo LED meter and physical master, headphone, and effects controls keep important operating functions within reach.

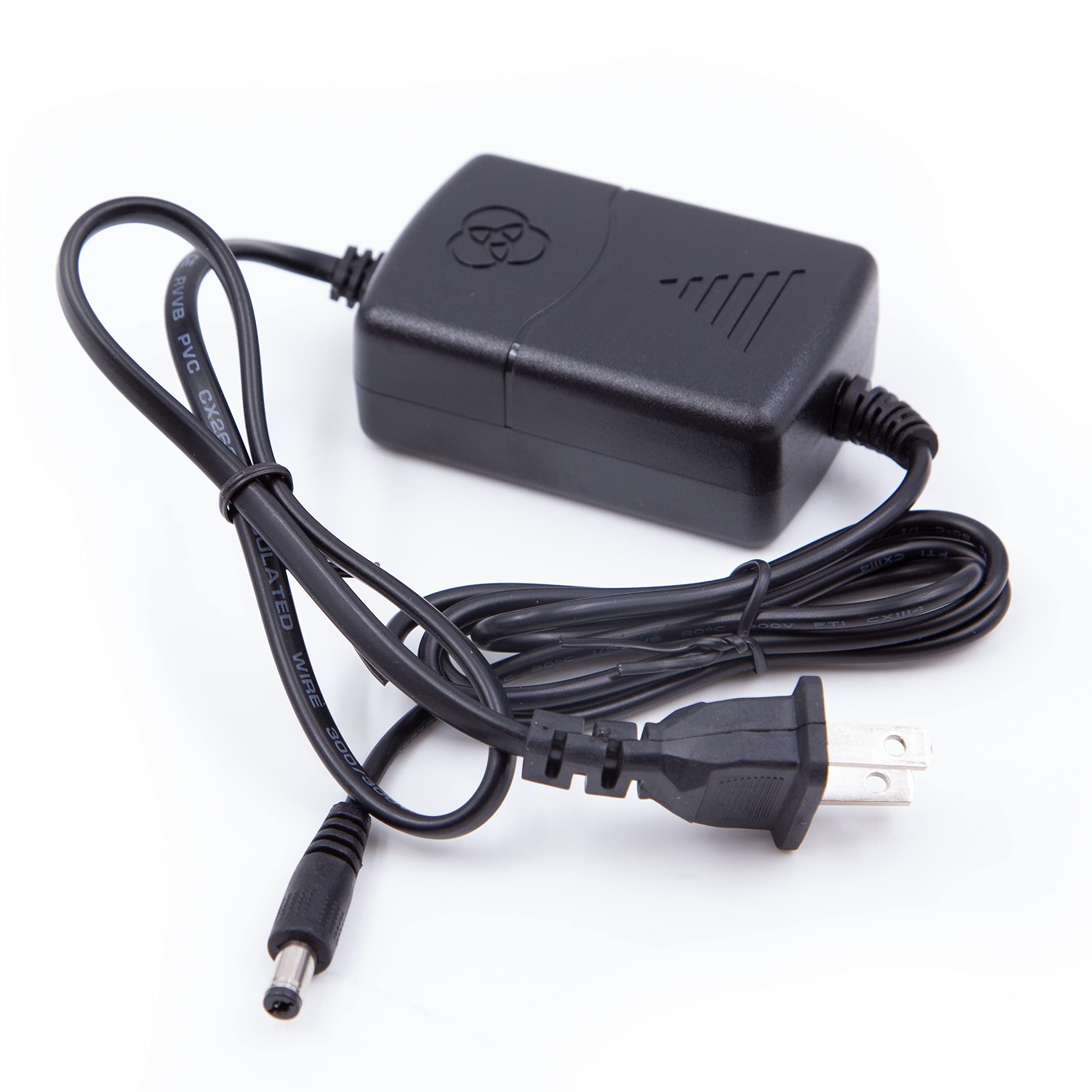

Place the mixer on a stable, ventilated surface near the rest of the sound system. Connect microphones and instruments before linking the main XLR outputs to compatible powered speakers, PA amplification, or recording equipment; lower channel and master levels before powering the system. Confirm the supplied power adapter and its voltage requirements with the seller or product documentation before use, because published listing power details conflict with the rear-panel label shown in product imagery.
