Emb TX6P 600W 6 Channel Power Mixer Console W/Dsp Effects, Bluetooth, Record

The EMB TX-6P, also identified as E-6XP, is a six-channel powered mixer designed to combine microphones and other audio sources while supplying amplification for a compact sound system. Its rated output is 300 watts per channel, for a stated maximum of 600 watts. This makes it a practical central control point for small live-sound, rehearsal, karaoke, and recording setups.

Six microphone inputs and six line inputs provide connection capacity for vocalists, instruments, and playback sources. The mixer is suited to front-of-house use, stage applications, home recording, and live sound where several sources need independent level control. Bluetooth playback and USB-drive MP3 playback add convenient music-source options without requiring a separate player.

Each channel includes a three-band EQ section for shaping the tone of connected sources. The mixer also includes dual seven-band EQ processing for broader system adjustment. An overload indicator and multi-segment level displays help the operator monitor levels during setup and use.

A built-in DSP digital-effects processor provides onboard effects processing, listed as 16/99 DSP effects. The TX-6P supports +48V phantom power for compatible condenser microphones and includes insert points for mono channels and the main output. Switchable pre/post-fader AUX outputs allow connection to external processors or monitor-related routing.

For systems that need recording or playback support, the mixer offers MP3 recording, a digital MP3 display, Bluetooth playback, and USB MP3 input. A headphone monitoring output is provided for monitoring recorded audio. The included power adapter, PC USB cable, and manual support initial setup with compatible speakers, microphones, and source equipment.

Key Features

• Six-Channel Format: Supports up to six microphone and six line-input sources.
• 600W Powered Output: Rated at 300 watts per channel for speaker-system amplification.
• +48V Phantom Power: Supports compatible condenser microphones that require phantom power.
• Built-In DSP Effects: Adds onboard digital effects processing without separate hardware.
• Bluetooth And MP3 Playback: Plays compatible wireless and USB-drive music sources.
• MP3 Recording: Provides onboard MP3 recording capability for compatible use cases.

Design & Installation

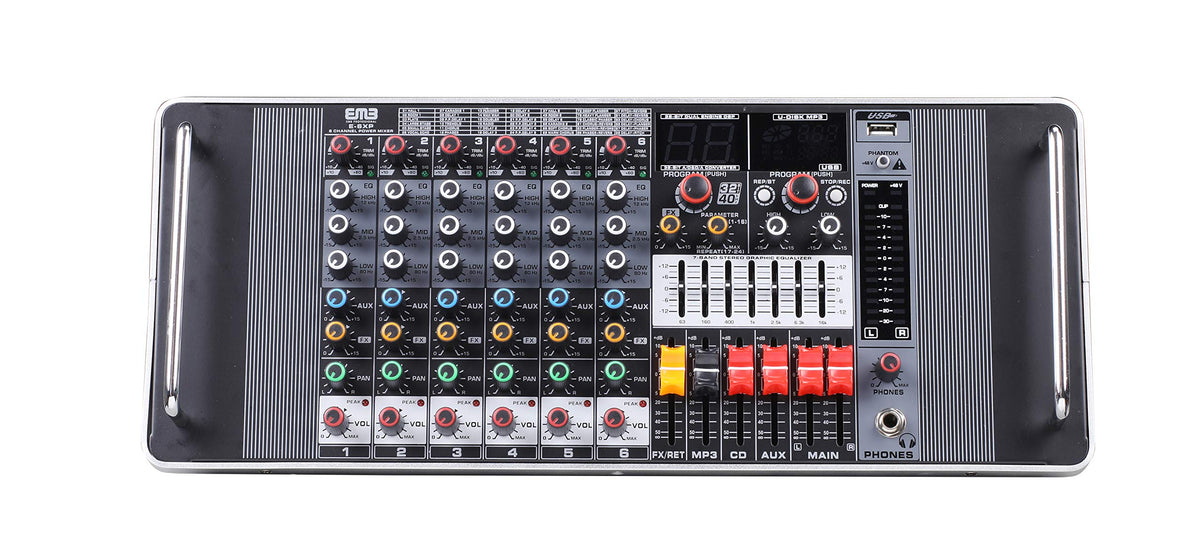

The TX-6P combines source mixing, tone adjustment, effects processing, monitoring, and power amplification in one console. Its control layout includes channel EQ, dual seven-band EQ, level indication, AUX routing, insert points, and a digital MP3 display. This integrated format can reduce the number of separate components required in a small audio rig.

Connect microphones and line-level sources to the six available input channels, then connect compatible passive speakers to the powered output section. Use +48V phantom power only with compatible condenser microphones, and connect external processing through the AUX outputs or insert points when needed. Bluetooth, USB MP3 input, recording functions, and headphone monitoring can be used as part of a live-sound or basic recording workflow.
