Emb MX06BT 99 DSP 6-Channel Audio Mixer Mixing Console MP3 Sound Desk With Bluetooth

The EMB Professional MX-06BT is a compact 6-channel audio mixer for combining microphones, instruments, playback audio, and other compatible sources into a controlled stereo mix. It is suited to small live-sound, karaoke, practice, podcast, and home-recording setups where several sources need level adjustment in one place. The mixer provides dedicated channel and master controls rather than relying on source-device volume alone.

Its control layout supports two mic/line combo inputs plus additional microphone and stereo input connections. Individual channel sections provide level adjustment, while the first two channels include gain, high/low EQ, FX send, pad, and high-pass-filter controls. This makes it practical to balance vocals, instruments, and playback sources before sending the mix to a compatible powered speaker system or recording destination.

The MX-06BT includes a built-in DSP section with 99 selectable effect programs. Effect groups printed on the mixer include hall, room, delay, ping pong, echo, echo reverb, karaoke, pitch, chorus, tremolo, flange, and auto tune. An effects return control lets the processed signal be blended back into the main mix.

Bluetooth streaming and USB MP3 playback add convenient music-source options without occupying a microphone channel. The onboard LED display and transport controls provide direct access to the playback section. A headphone output with its own level control supports local monitoring during setup and use.

For system integration, the MX-06BT provides balanced XLR main outputs alongside 1/4-inch stereo outputs. A +48V phantom-power switch is provided for compatible condenser microphones connected to the designated microphone inputs. Its compact desktop format is well suited to portable setups where a full-size mixing console would be unnecessary.

Key Features

• Six-Channel Mixing: Combines microphones, instruments, and stereo playback sources in one compact console.
• 99 DSP Programs: Provides selectable built-in effects for vocals and instruments.
• Bluetooth Playback: Streams compatible wireless audio to the mixer.
• USB MP3 Player: Plays MP3 content from a connected USB storage device.
• +48V Phantom Power: Supports compatible condenser microphones on the mixer’s mic inputs.
• Balanced Main Outputs: Sends the stereo mix through left and right XLR main outputs.

Design & Installation

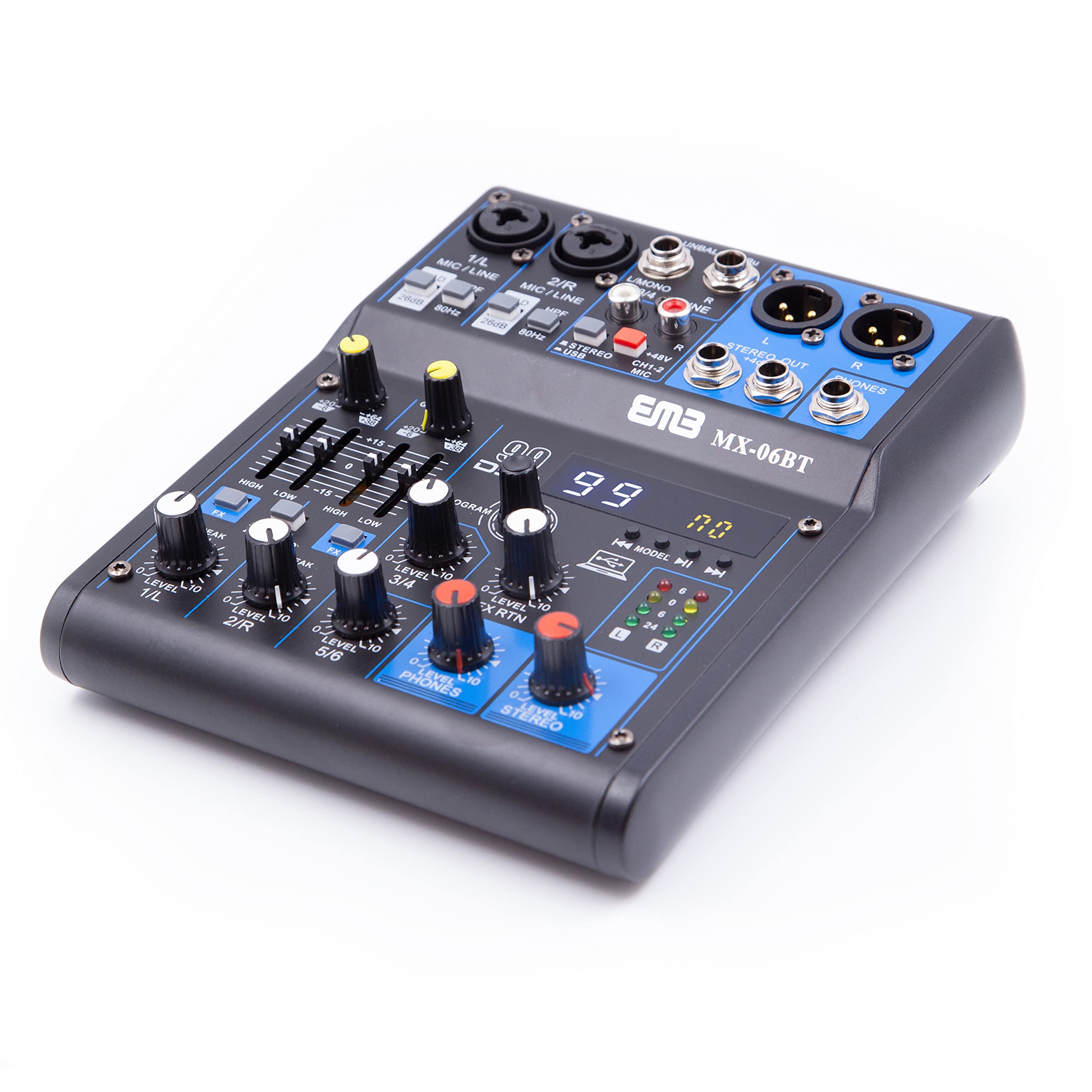

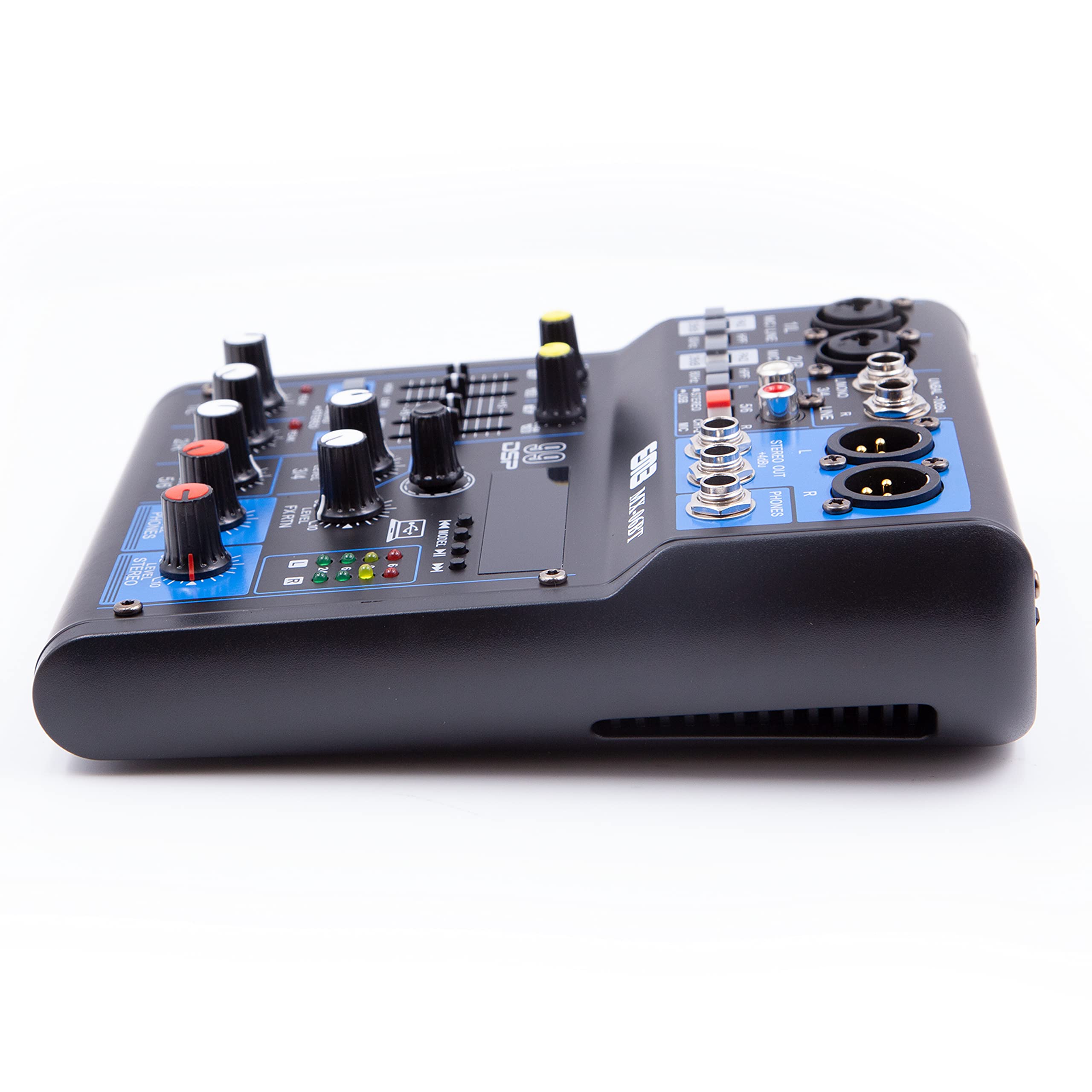

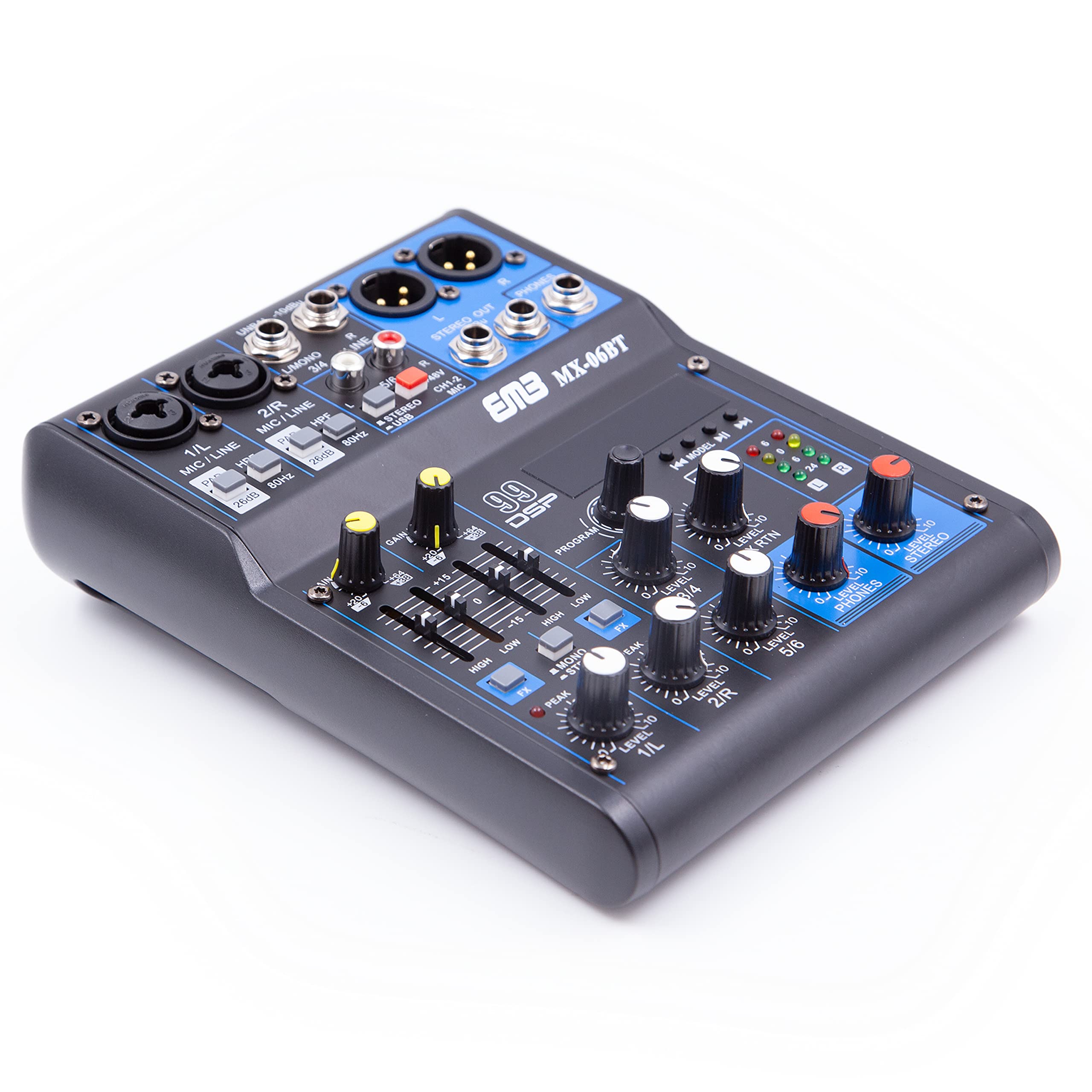

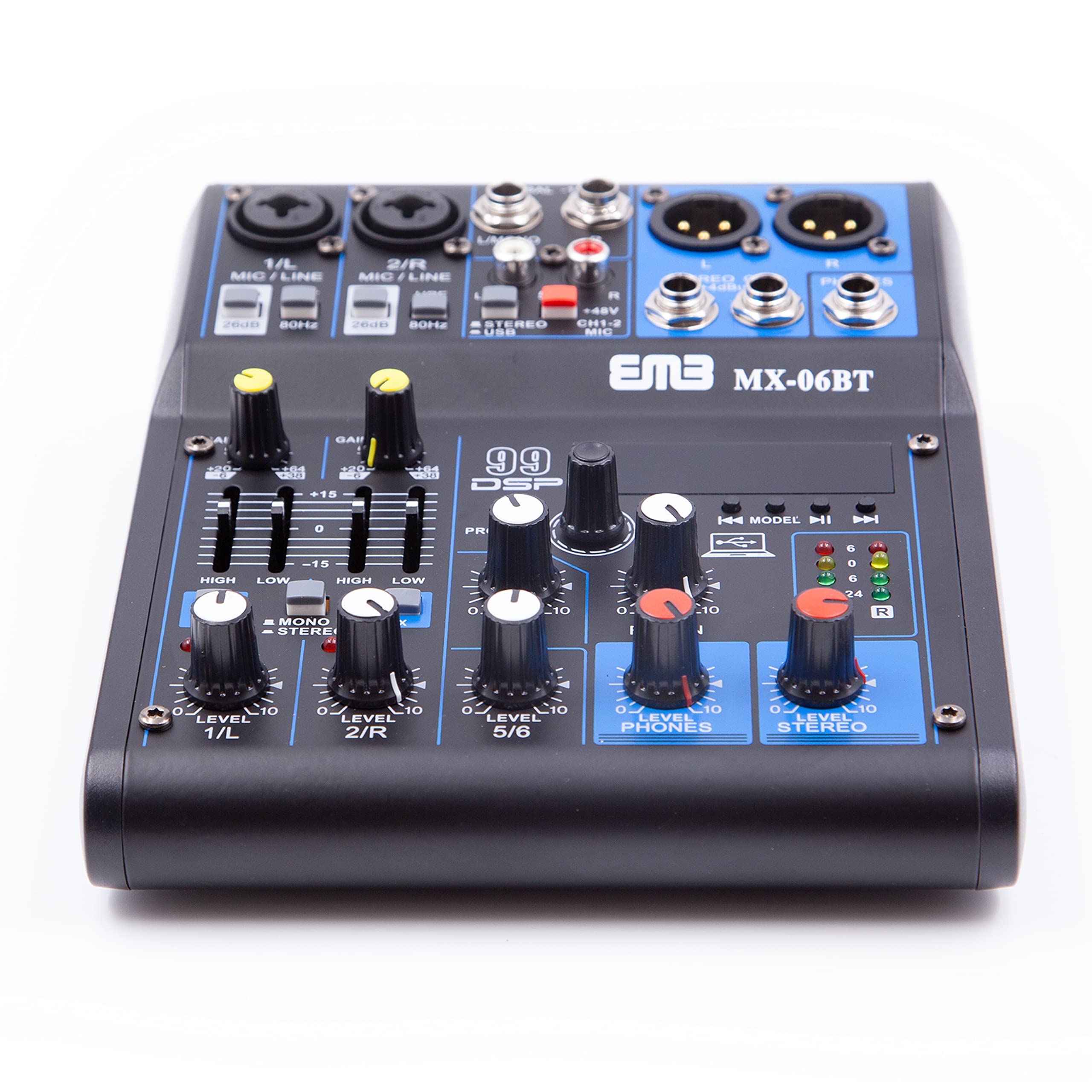

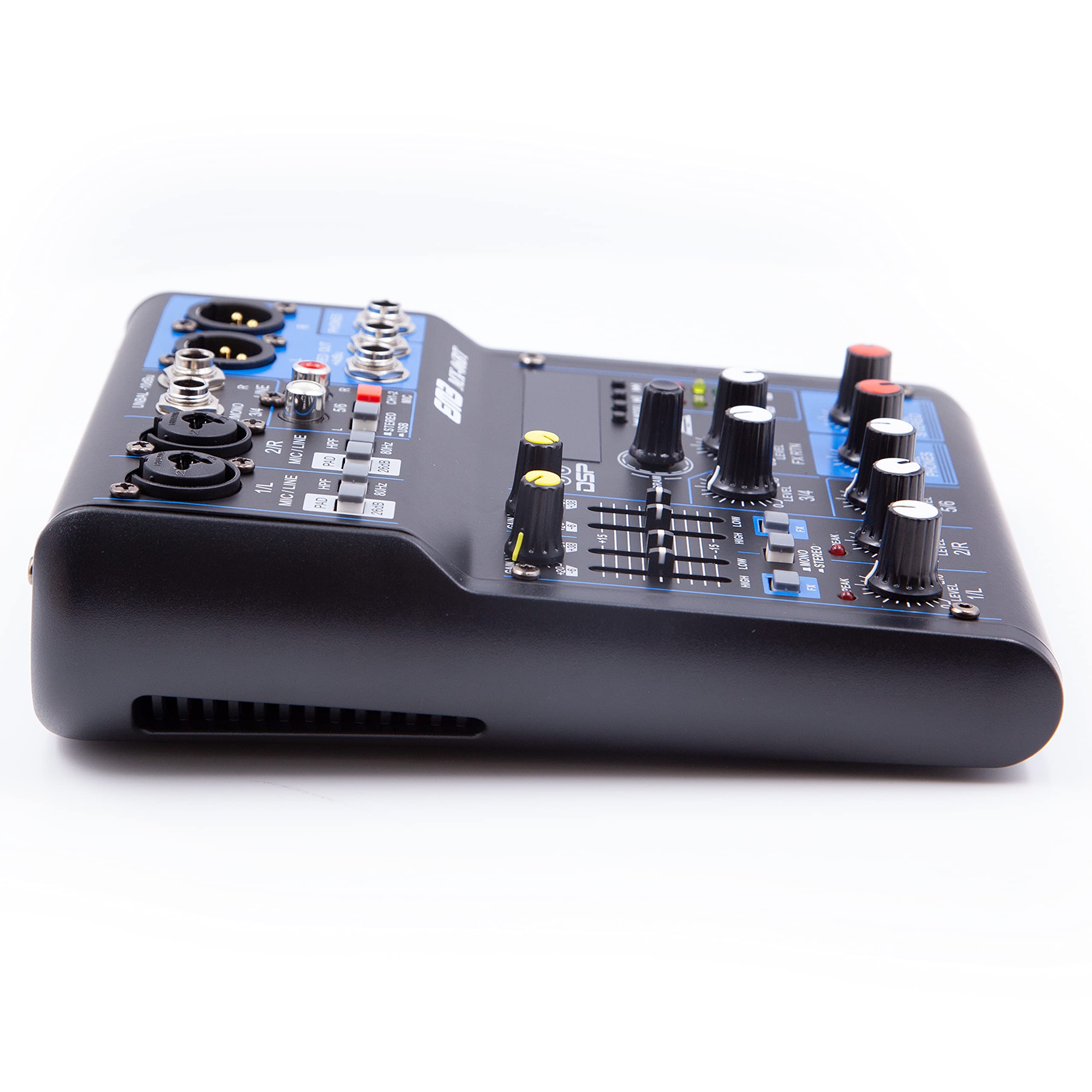

The MX-06BT uses a compact enclosed tabletop housing with a dark exterior, blue-labeled control surface, rotary controls, switches, LED indicators, and a central digital-effects display. Input and output connectors are grouped along the upper and rear areas for a tidy working surface. The printed panel labels identify channels, playback controls, effect groups, output connections, and power connection.

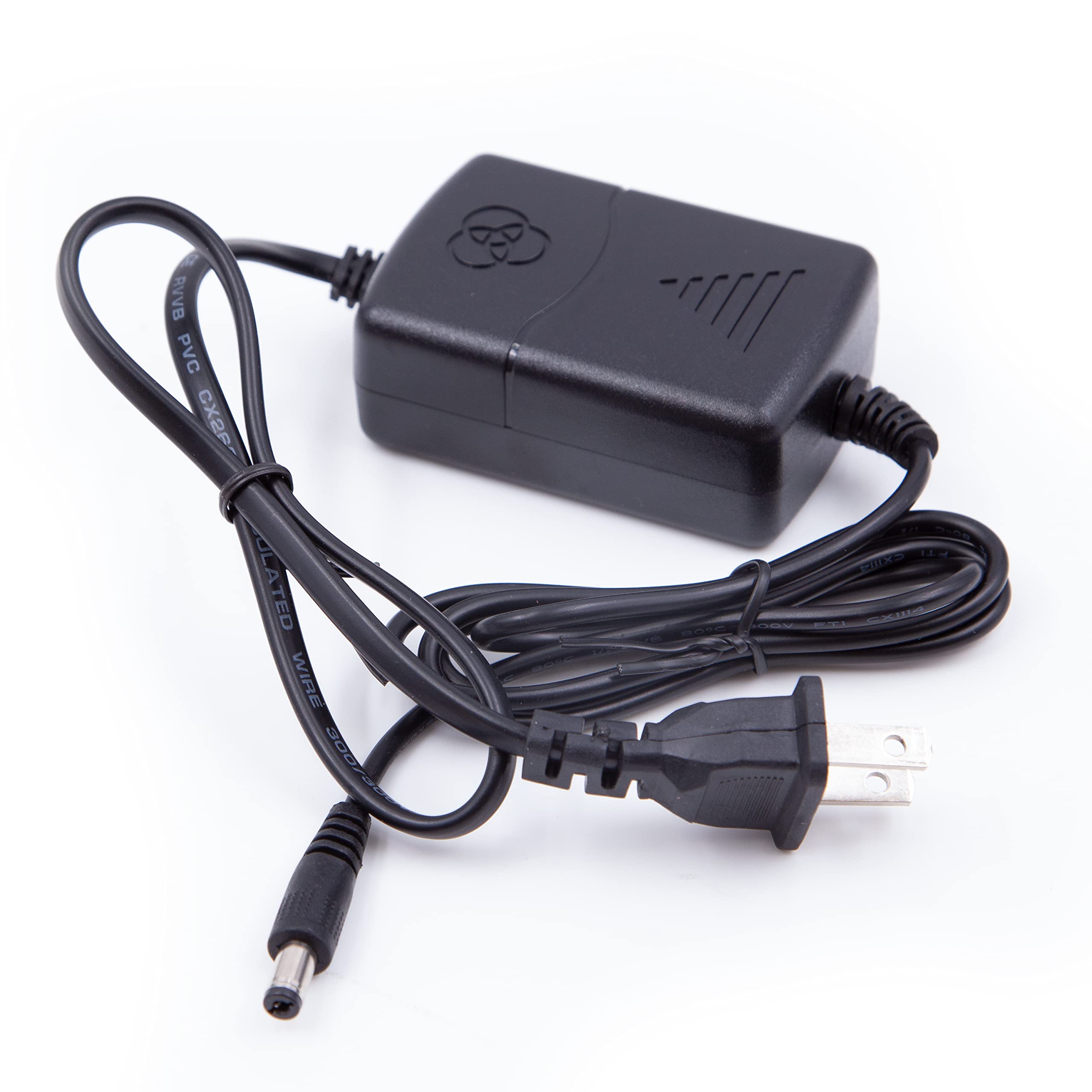

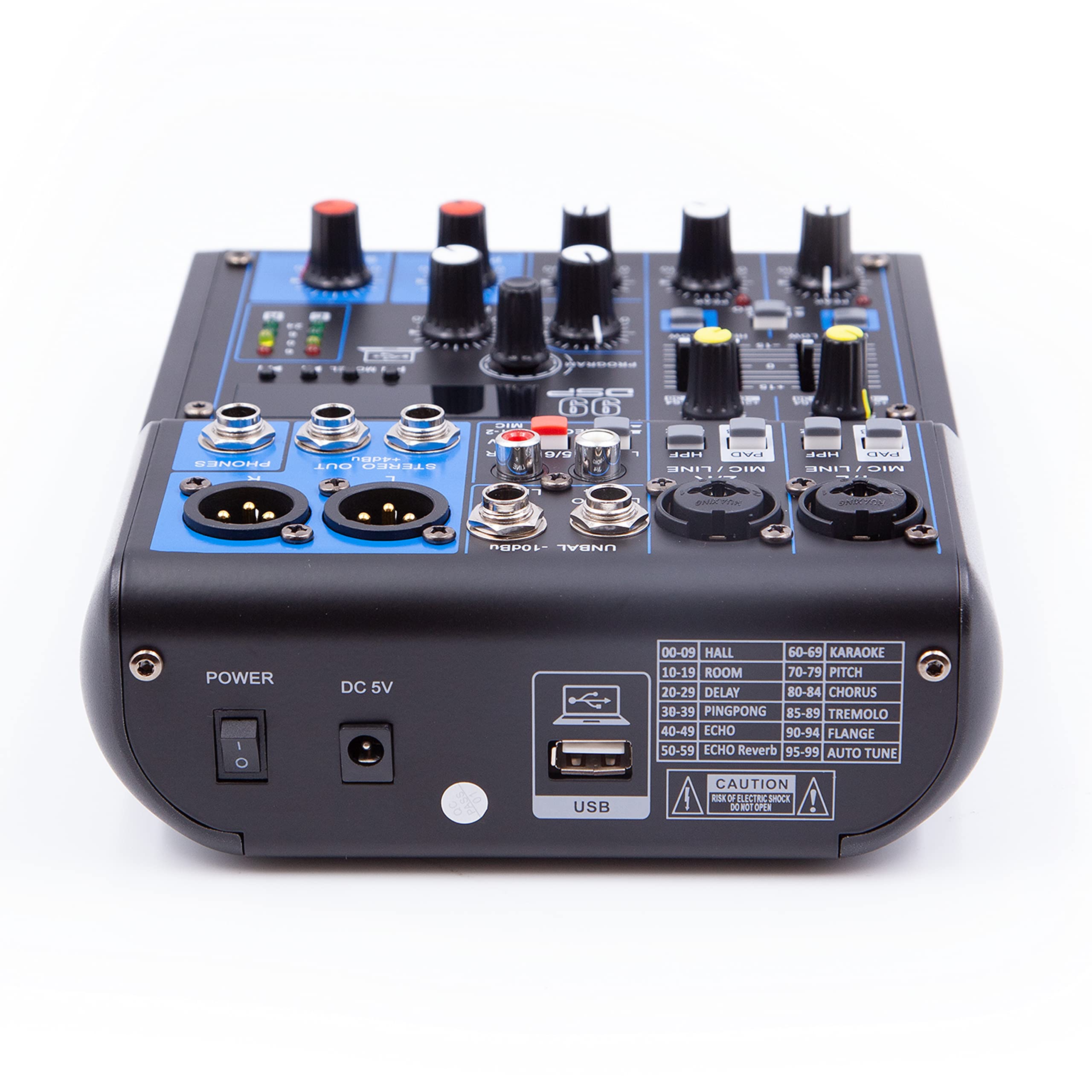

Place the mixer on a stable, ventilated surface within reach of source devices and the destination sound system. Connect microphones and instruments before connecting the main outputs to compatible powered speakers, an amplifier, or another line-level destination; set levels low before powering on and raise them gradually. Use +48V phantom power only when required by a compatible condenser microphone, and use the rear-panel DC 5V power input with the supplied adapter.
