Mackie Mix5 5-Channel Compact Mixer, Black

The Mackie Mix5 is a compact analog audio mixer built for combining microphones, instruments, media players, and other line-level sources into one manageable stereo mix. It provides five total input channels in a space-saving format, making it suitable for small recording setups, podcasts, livestreams, rehearsals, presentations, and simple PA systems. Its straightforward control layout helps users set levels and route sound without the complexity of a larger console.

Channel 1 accepts either a microphone or line-level source, while channels 2/3 and 4/5 provide stereo 1/4-inch line inputs for keyboards, music players, interfaces, and similar equipment. Dedicated stereo RCA tape inputs and outputs add convenient playback and recording connections. Main left/right outputs provide the final mix for powered speakers, an amplifier, or another recording device.

The Mix5 is designed around a high-headroom, low-noise signal path for clean operation with a variety of audio sources. Its mic/line channel uses a gain control, pan control, level control, and two-band EQ for practical adjustment of a vocal, instrument, or mono source. High and low shelving EQ controls let users shape brightness and bass response without adding unnecessary processing.

Its XLR microphone input supplies fixed +15V phantom power for compatible condenser microphones. The mixer also supports balanced or unbalanced 1/4-inch line connections, helping it integrate with professional and consumer audio gear. Stereo RCA connections make it easy to bring in playback audio or send the main mix to a recorder with appropriate analog inputs.

For monitoring, the Mix5 includes a dedicated stereo headphone output with its own level control and LED level metering. The compact metal-chassis design is intended for portable use while remaining practical for a desktop or small equipment rack shelf. It is an analog mixer rather than a car stereo or vehicle-specific audio component, so it requires an external AC outlet and compatible audio equipment.

Key Features

• Five-Channel Format: Combines one mono mic/line channel with two stereo line-input channels.
• Mic/Line Input: Supports an XLR microphone or 1/4-inch line-level source on channel 1.
• Two-Band EQ: Adjusts high and low frequencies on the mono input channel.
• Fixed Phantom Power: Provides +15V phantom power at the Mix5 XLR input.
• RCA Tape I/O: Adds stereo playback and recording connections for compatible analog devices.
• Headphone Monitoring: Offers a stereo headphone output with separate volume control.

Design & Installation

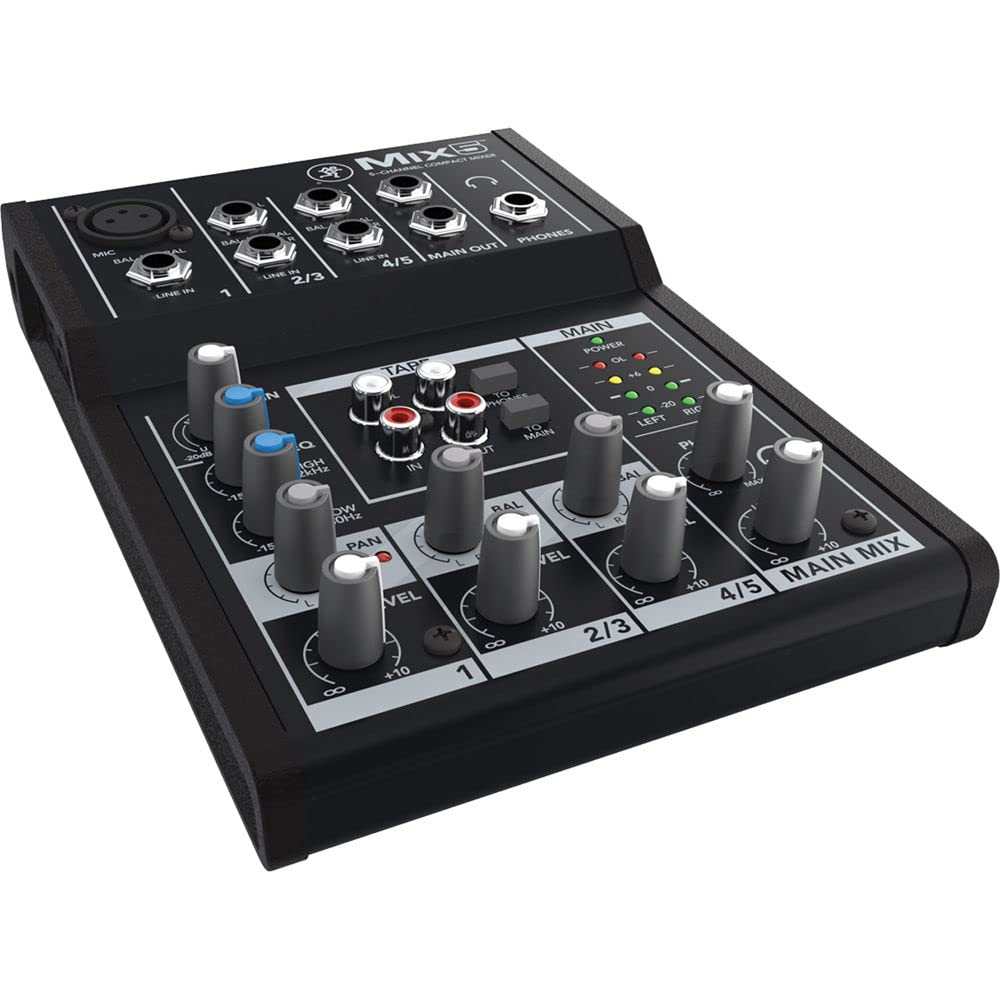

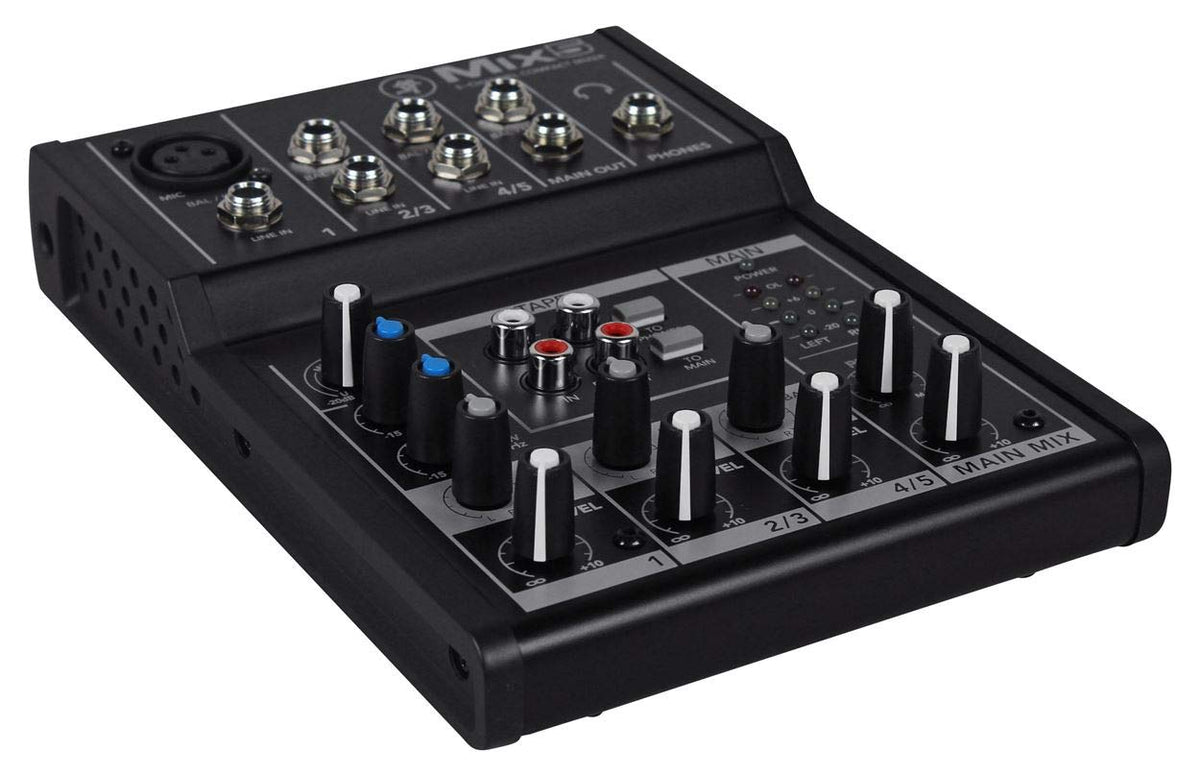

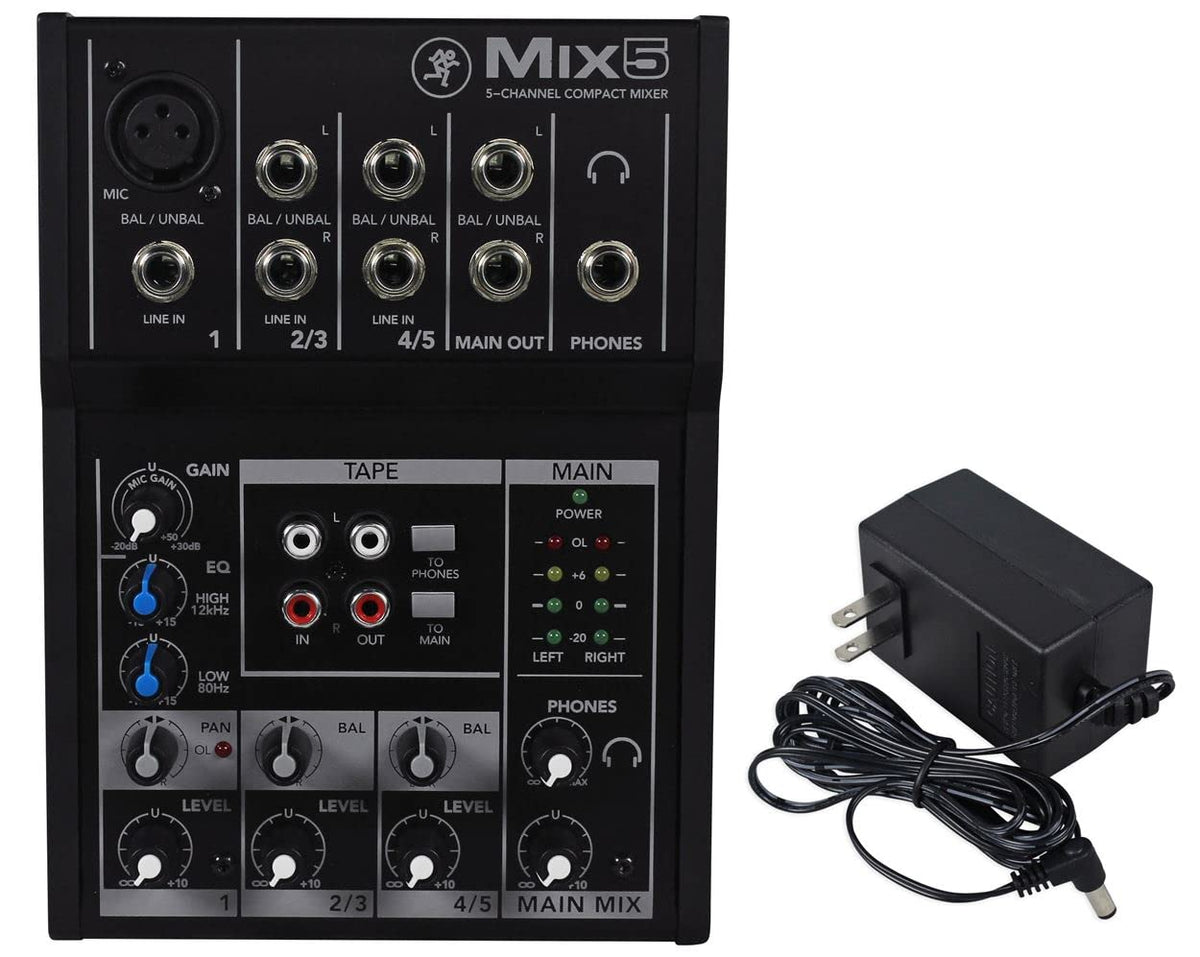

The Mix5 uses a rugged metal chassis with a compact angled-console layout for accessible knobs and connections. Its controls include input gain, EQ, pan, channel levels, main mix level, and headphone level, while LED meters provide visual level monitoring. At 5.5 inches wide and 7.7 inches deep, it takes up little desktop space and is convenient to transport.

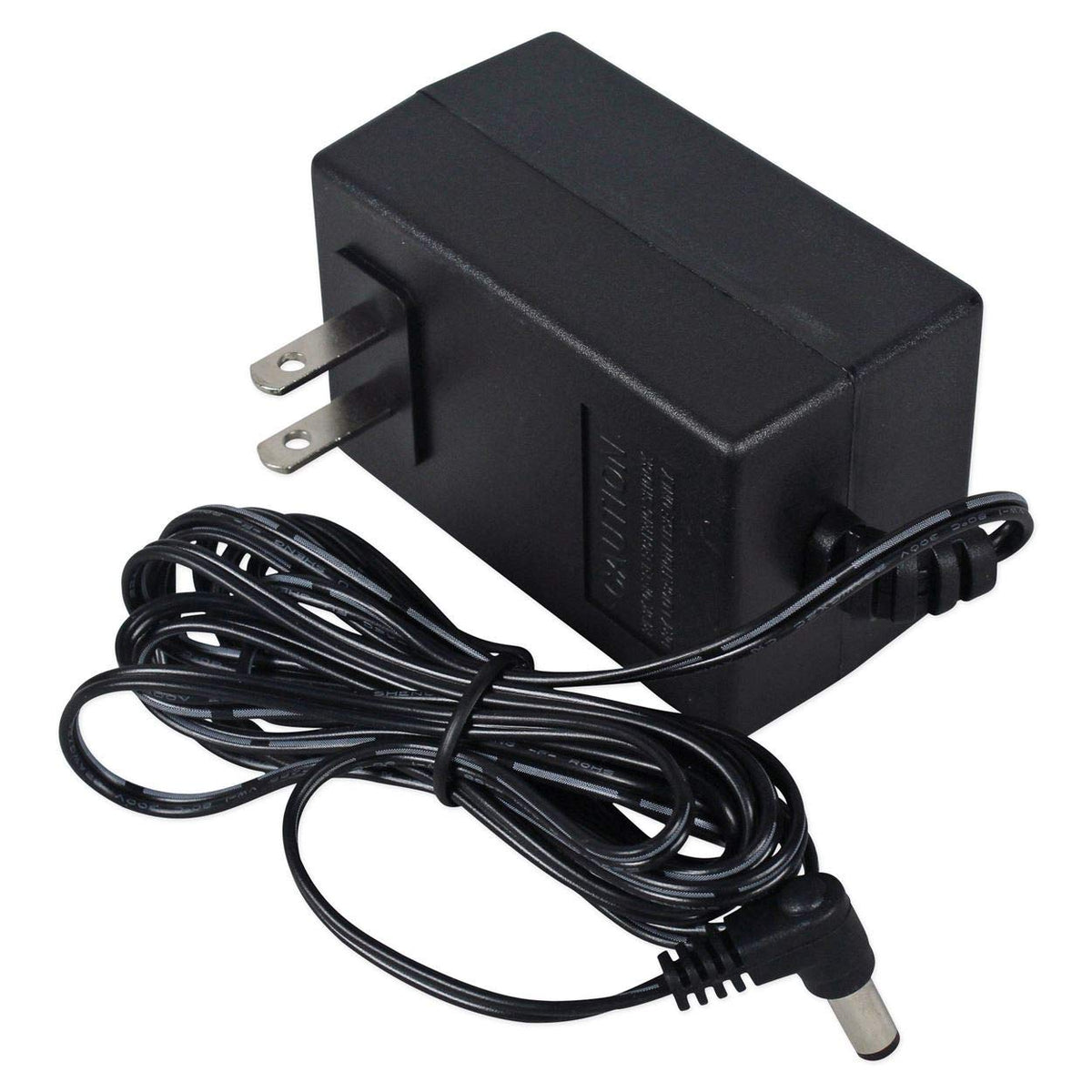

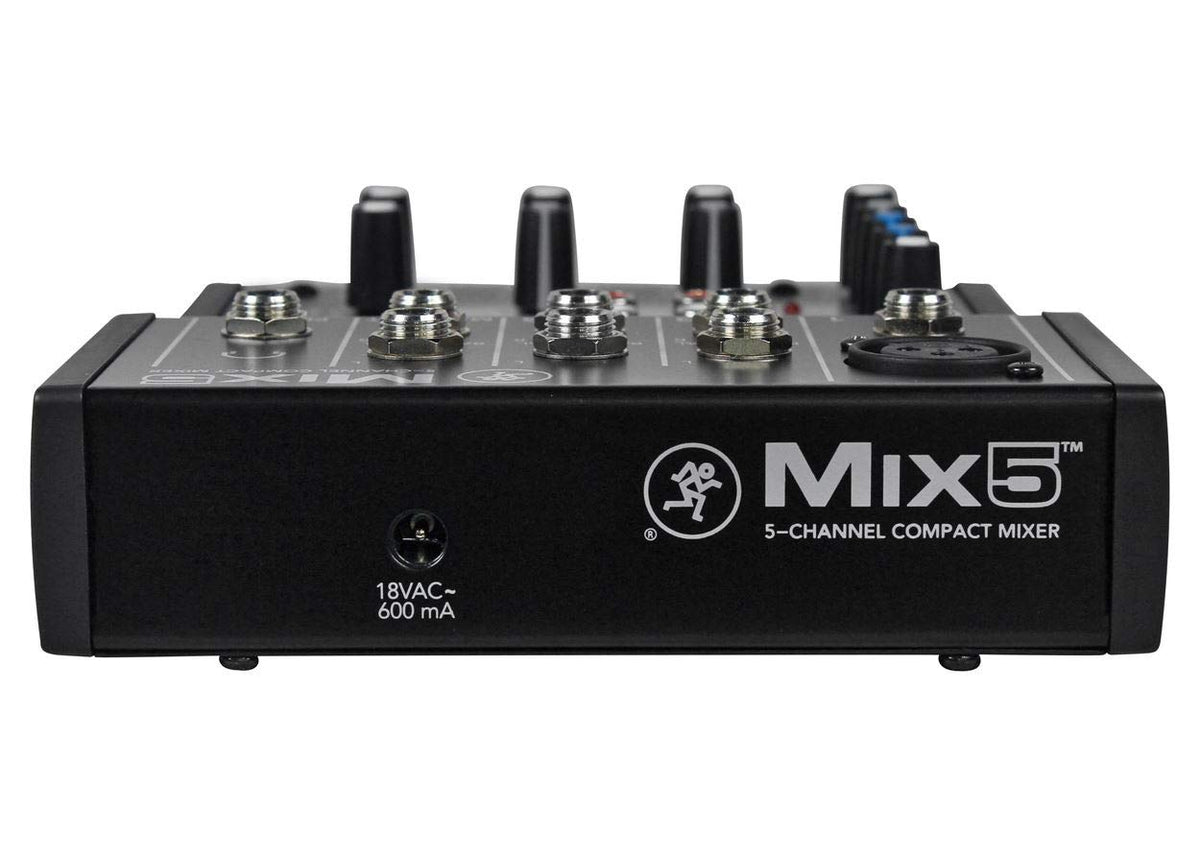

Connect the supplied external AC power supply to the mixer before connecting it to a properly rated AC outlet; the unit powers on automatically when connected. Use the XLR or 1/4-inch input on channel 1 for one mono source, connect stereo sources to the paired 1/4-inch inputs, and feed powered speakers or an amplifier from the main L/R outputs. Use standard 1/4-inch headphone adapters where needed, and lower the headphone level before connecting headphones.
