Emb MX08BT 99 DSP 8-Channel Audio Mixer Mixing Console MP3 Sound Desk With Bluetooth

The EMB Professional MX-08BT is a compact 8-channel audio mixing console for combining microphones, instruments, playback sources, and other line-level signals into a controlled stereo output. It provides a practical central point for small live-sound, karaoke, rehearsal, streaming, and recording-adjacent setups. Individual input level controls help users balance multiple sources before sending the mix onward to compatible powered speakers, amplifiers, or recording equipment.

This mixer is suited to users who need more hands-on control than a simple Bluetooth receiver or single-input interface can provide. Four mic/line combo inputs support microphone and line-source connections, while the stereo input sections expand options for playback devices and additional sources. A dedicated musical-instrument input function is also specified for sources such as guitar, bass, and aerophone.

For sound shaping, the MX-08BT provides per-channel gain control and three-band EQ controls on its mono input channels, along with 80 Hz low-cut switches. Its integrated effects processor offers 99 preset programs, including hall, room, delay, echo, reverb-oriented, karaoke, pitch, chorus, tremolo, flange, and auto-tune effect groups. This allows users to add ambience or character without requiring a separate outboard effects unit.

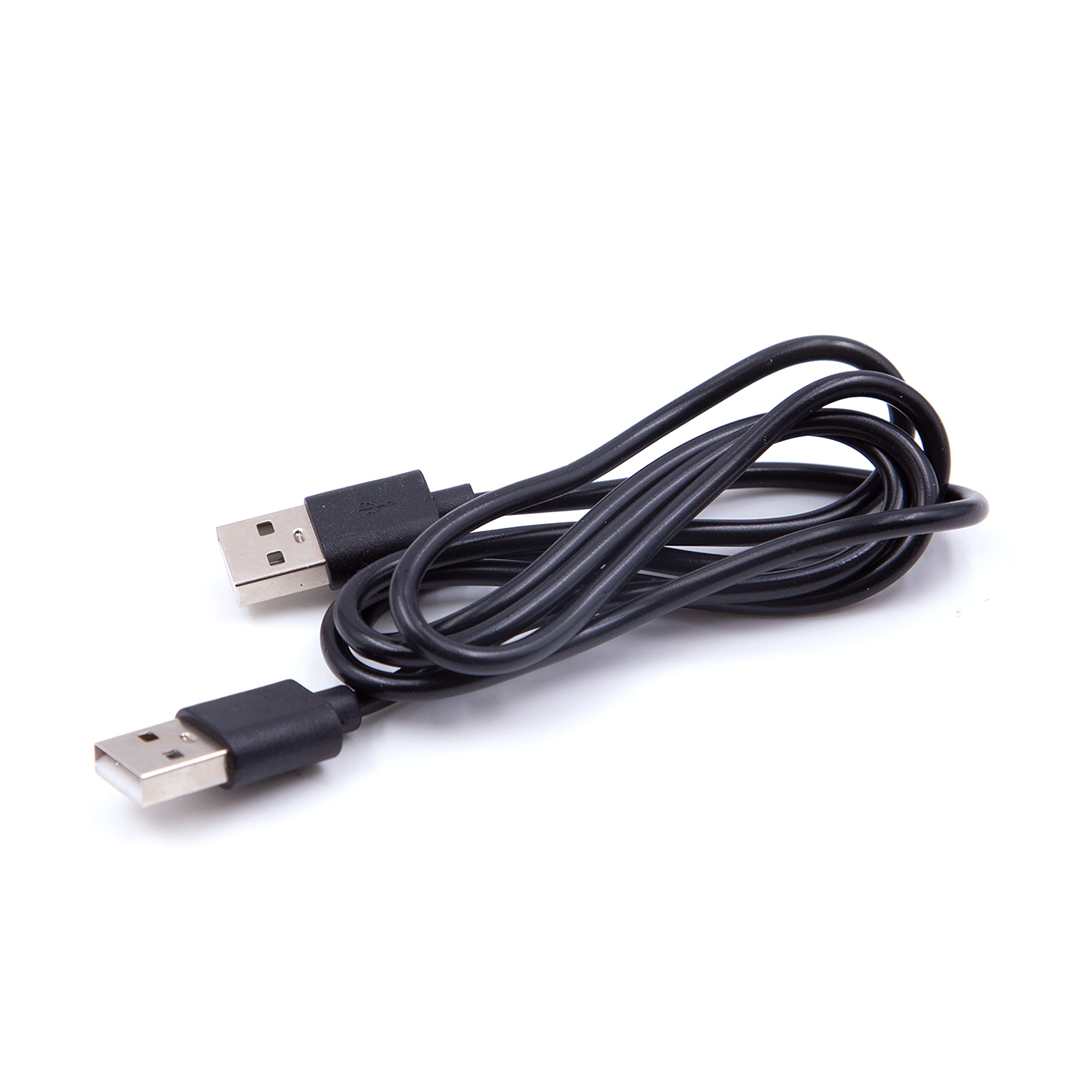

Bluetooth and USB MP3 playback make the mixer useful for background music, break music, practice tracks, or playback from compatible devices. The built-in USB MP3 player includes an LED display and transport controls. A stereo LED level meter provides a visual reference for monitoring output level during setup and operation.

The MX-08BT can serve as the front end of a compact PA system, with main XLR outputs and additional 1/4-inch stereo outputs shown on the mixer. A headphone output supports close monitoring, while the 48V phantom-power function accommodates compatible condenser microphones. Its compact tabletop format and included external power adapter make it appropriate where a full-size rack mixer would be unnecessary.

Key Features

• 8-Channel Mixing: Combines multiple microphone, instrument, and playback sources.
• 99 DSP Presets: Adds selectable effects without separate processing hardware.
• Bluetooth Playback: Streams compatible wireless audio into the mixer.
• USB MP3 Player: Plays MP3 files with onboard LED display.
• 48V Phantom Power: Supports compatible condenser microphone operation.
• 80 Hz Low Cut: Helps reduce low-frequency rumble on mono channels.

Design & Installation

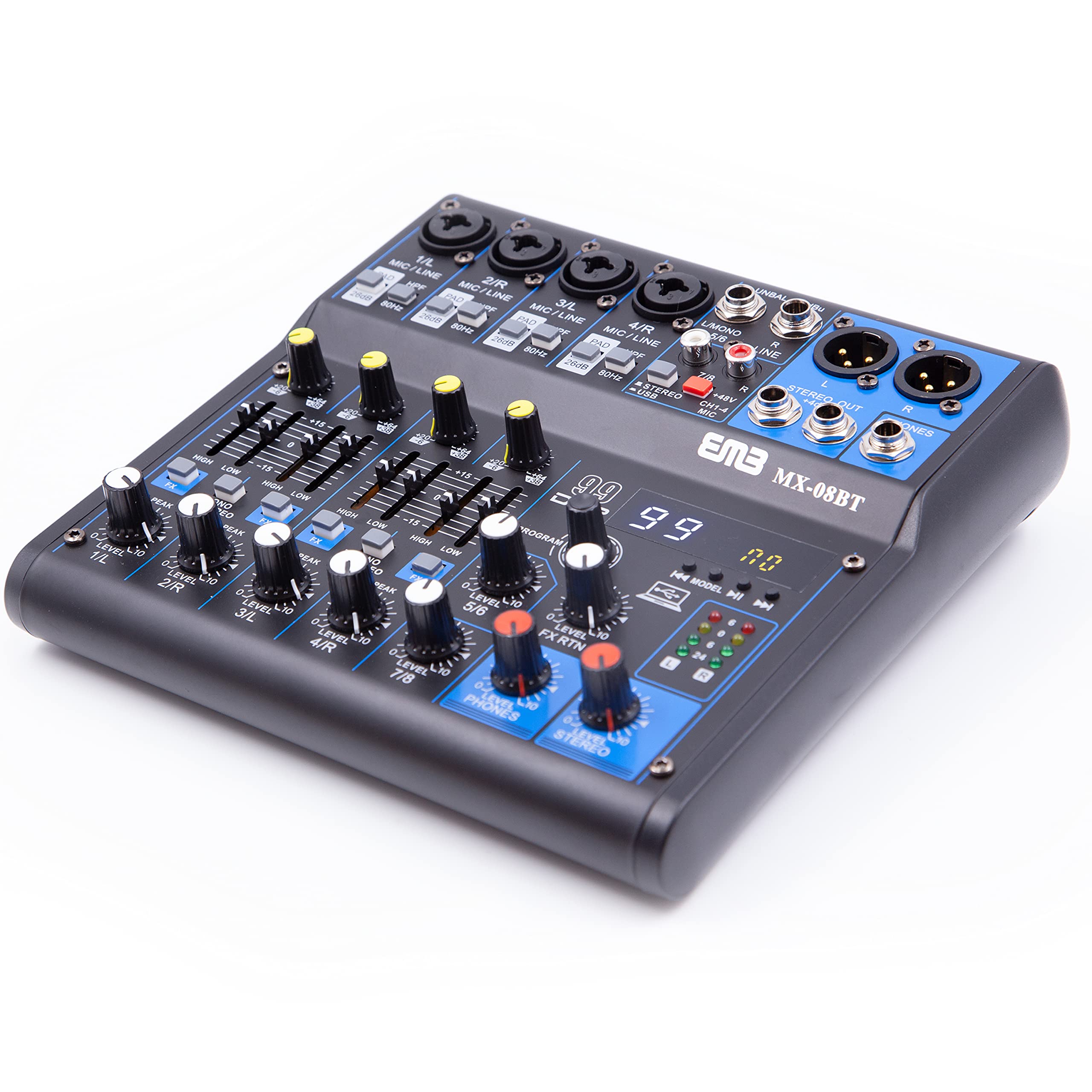

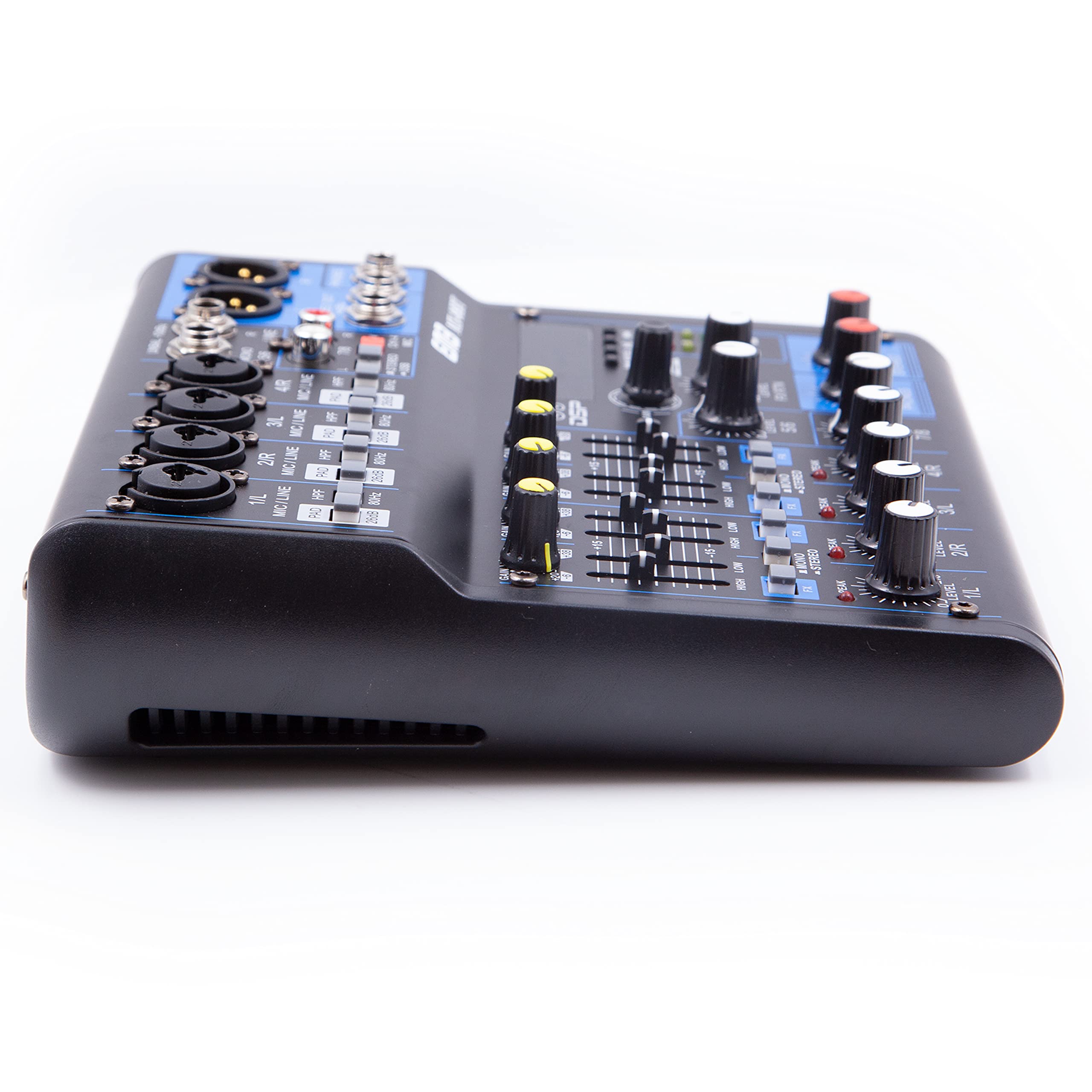

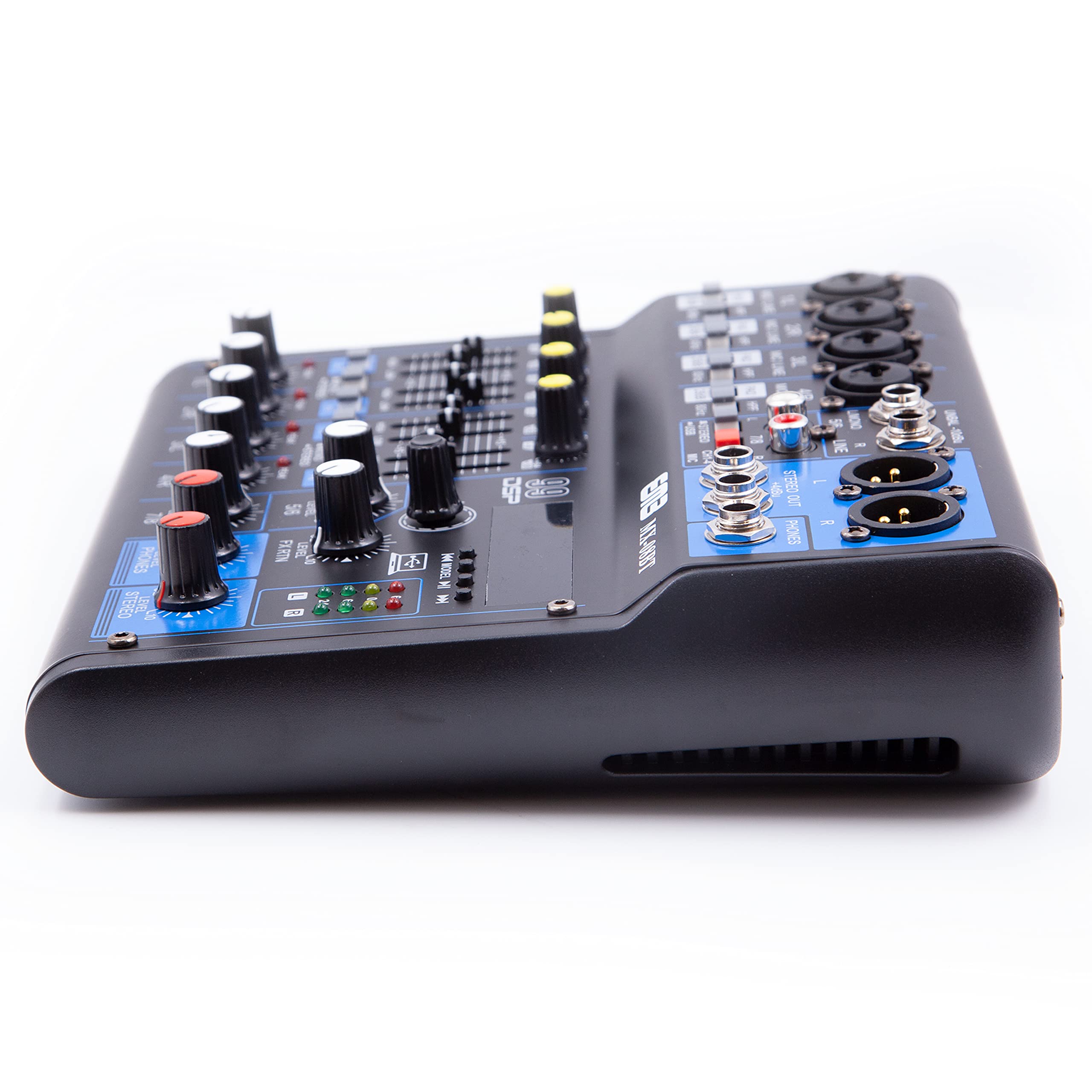

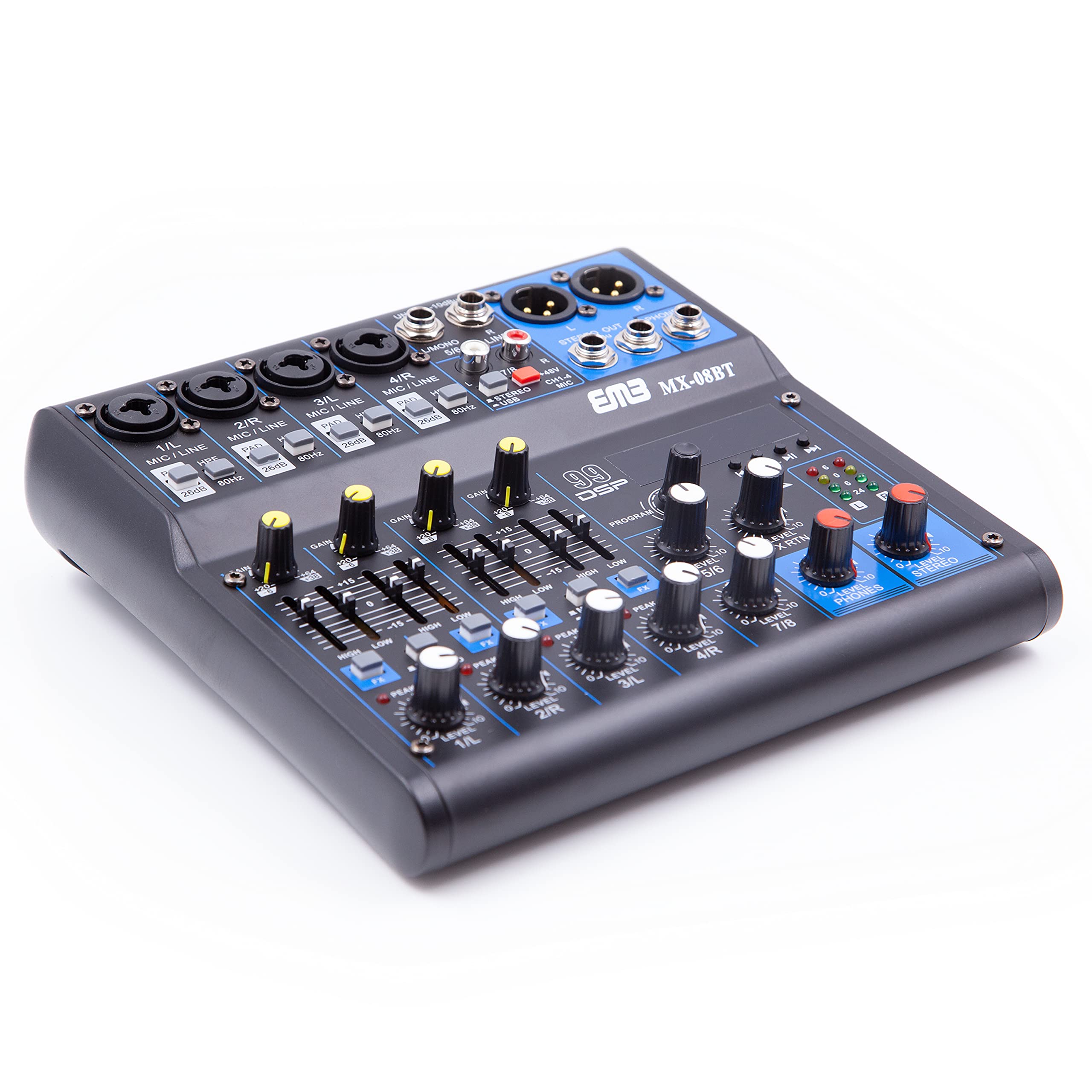

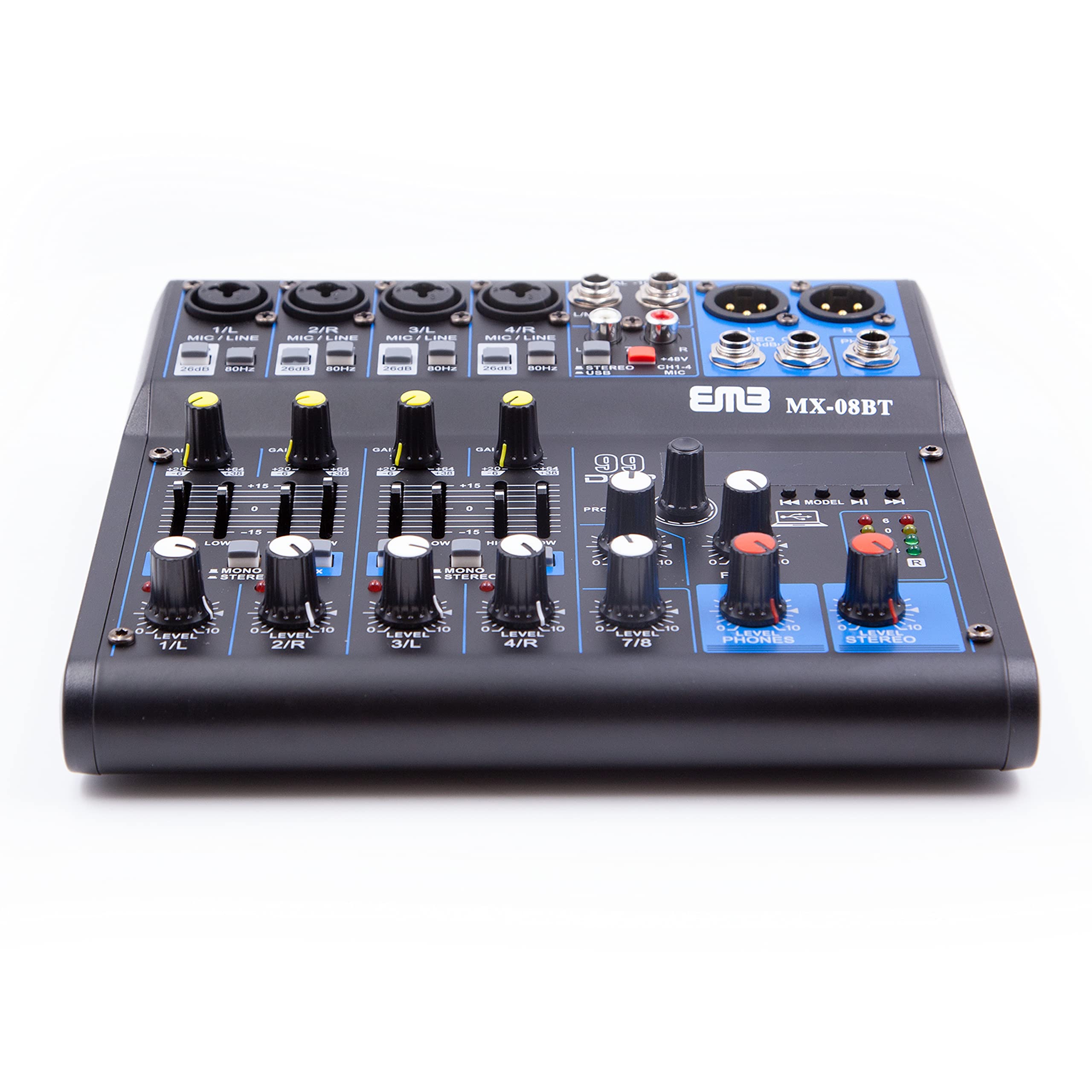

The MX-08BT uses a compact tabletop control layout with rotary level controls, vertical EQ sliders, illuminated status indicators, a front-panel display, and top-mounted connection points. The manufacturer does not publish an enclosure-material specification, but product images show a rigid, molded tabletop chassis with recessed side ventilation. Clearly grouped input, output, effects, playback, and monitoring controls support straightforward operation in small-system environments.

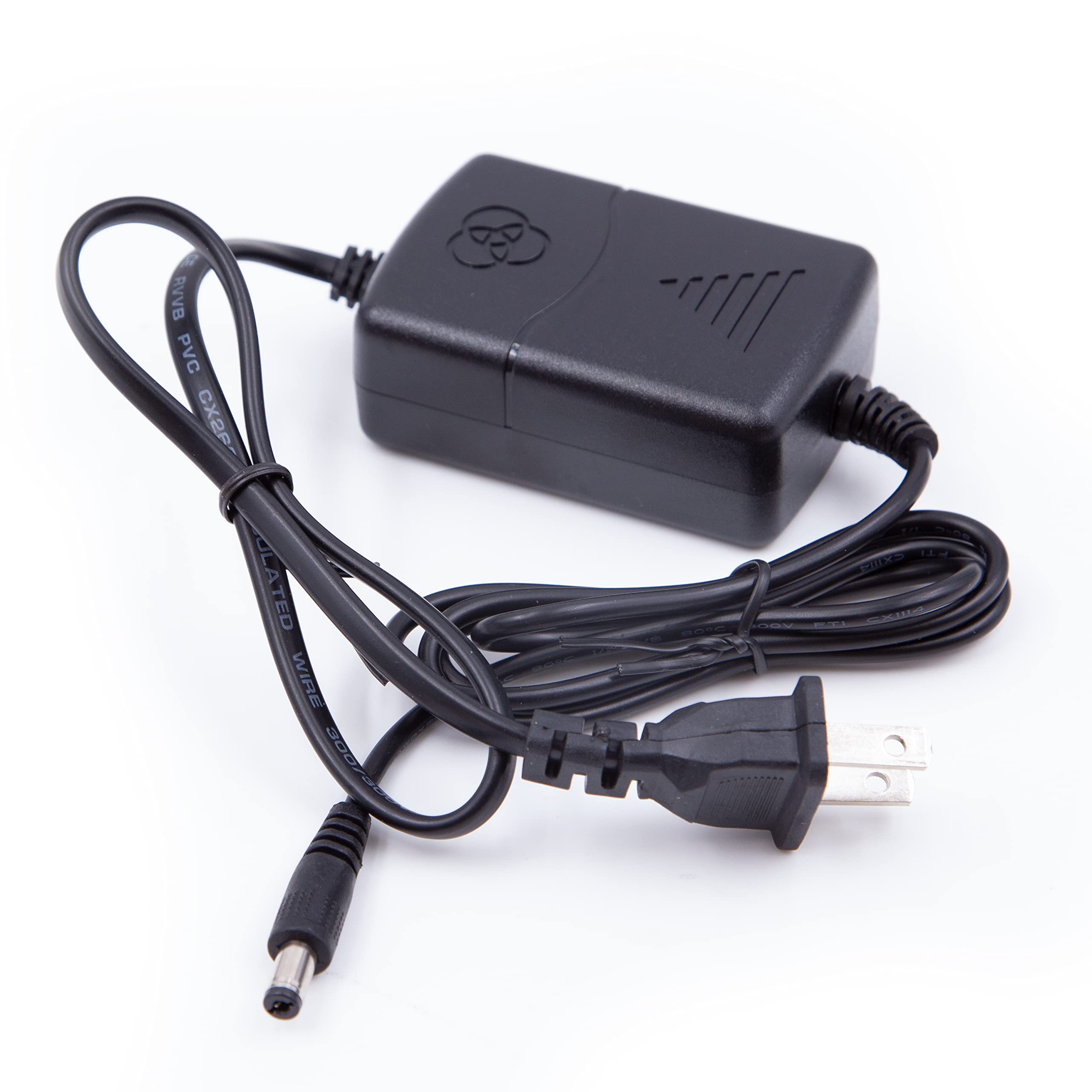

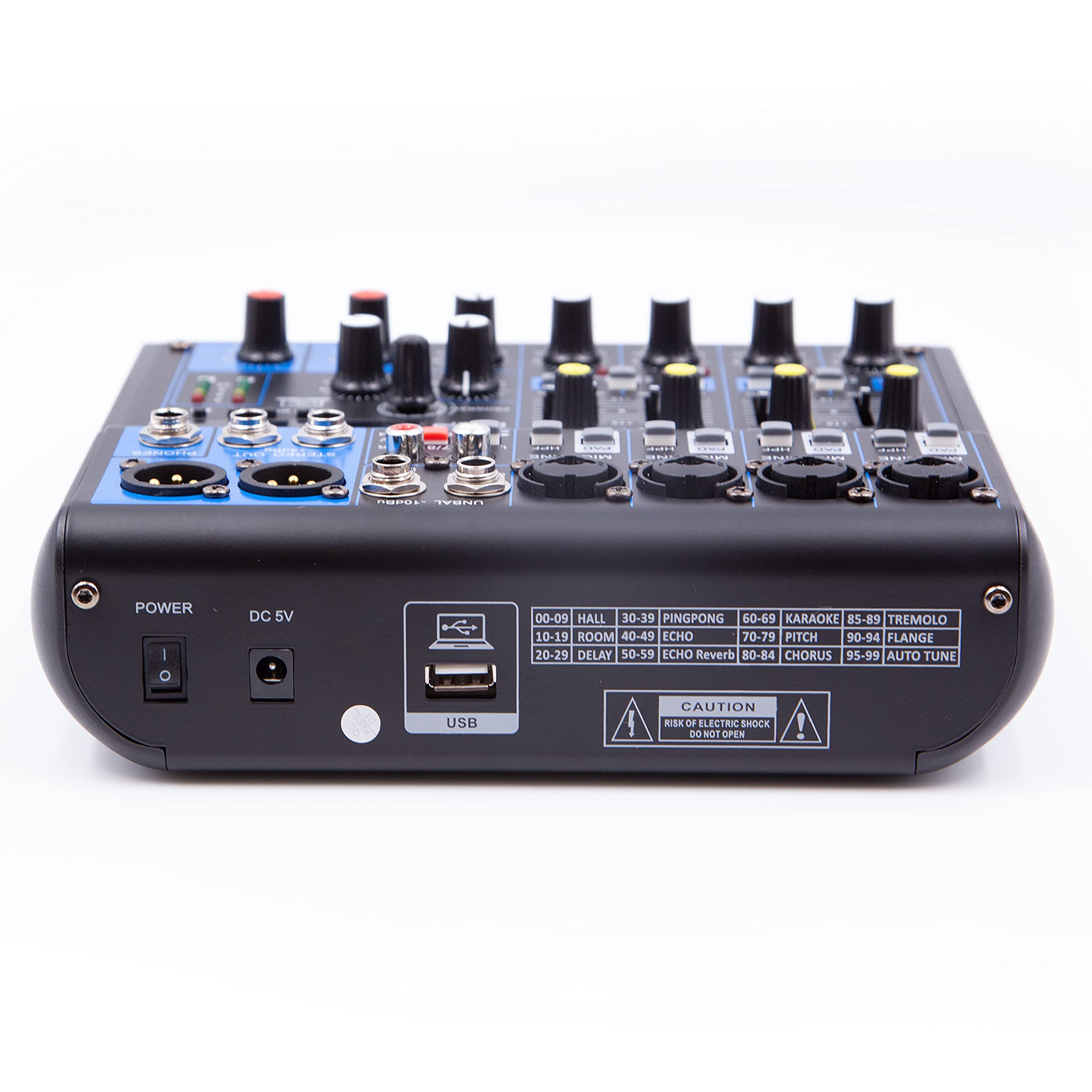

Place the mixer on a stable, ventilated surface and connect its external adapter to the rear DC 5V input. Connect microphones and line sources before routing the main XLR or 1/4-inch stereo outputs to compatible powered speakers, amplifiers, or other line-level equipment; enable 48V phantom power only for microphones that require it. Set channel and master levels low before powering the connected sound system, then raise levels gradually while watching the stereo LED meter.
