Emb MX10BT 99 DSP 10-Channel Audio Mixer Mixing Console MP3 Sound Desk With Bluetooth

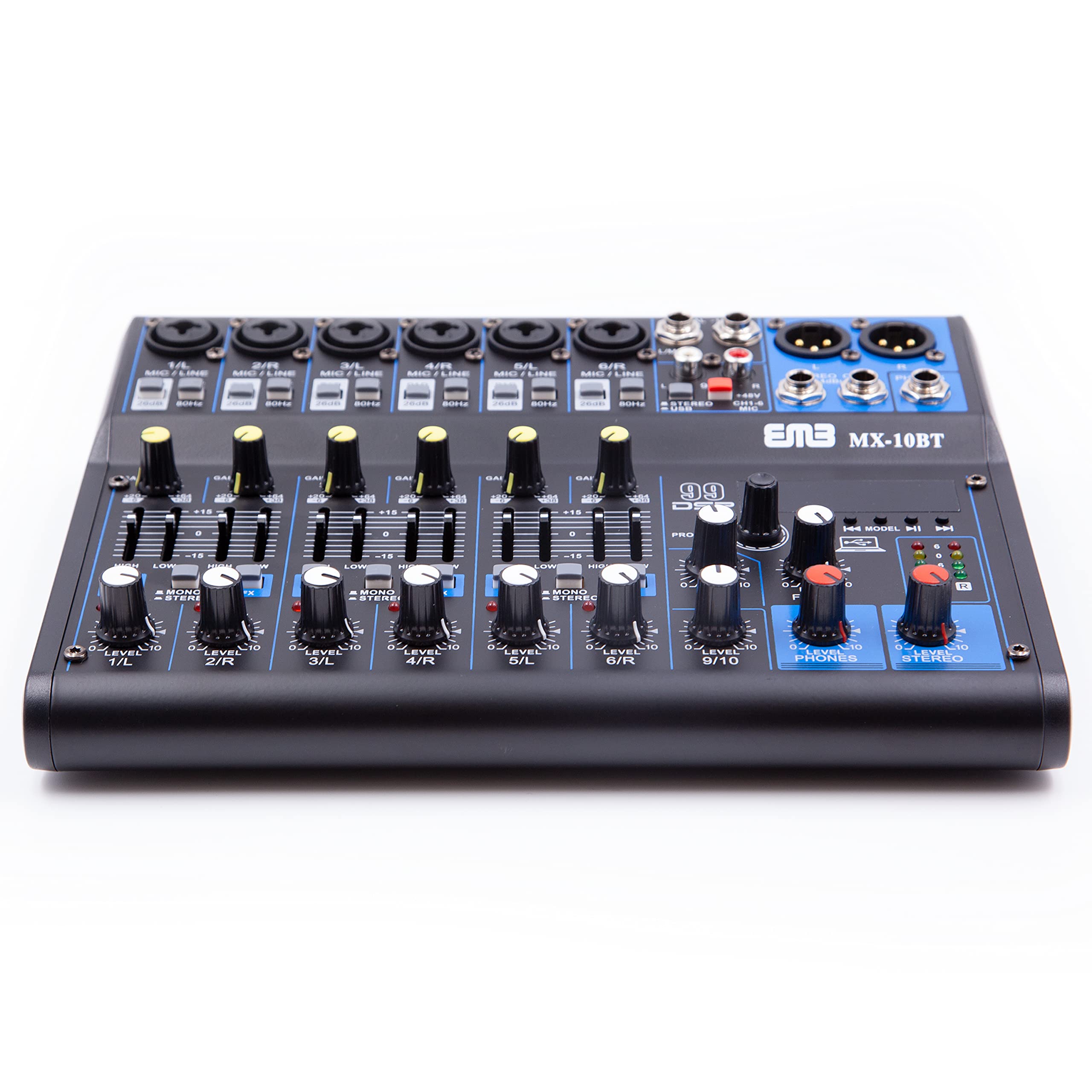

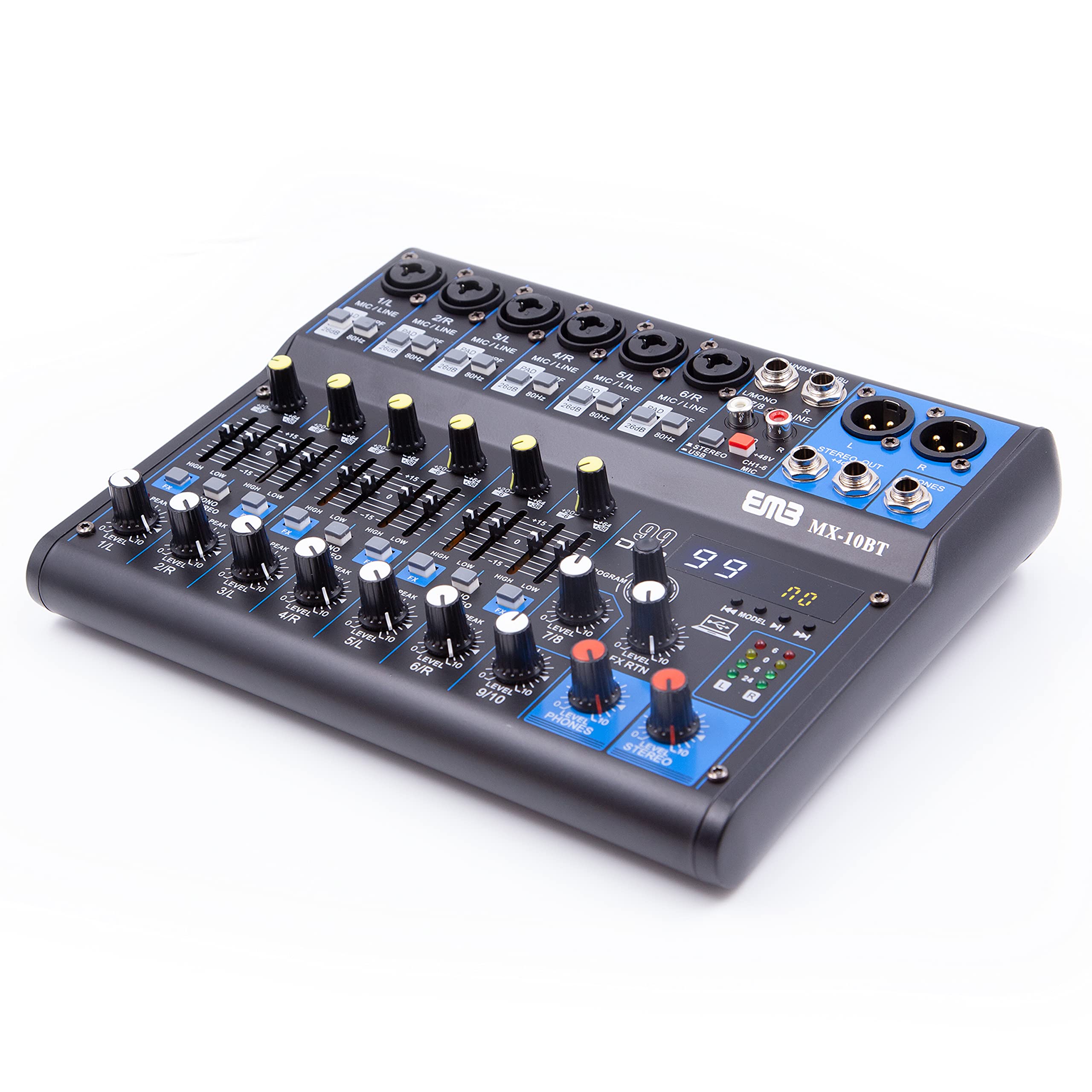

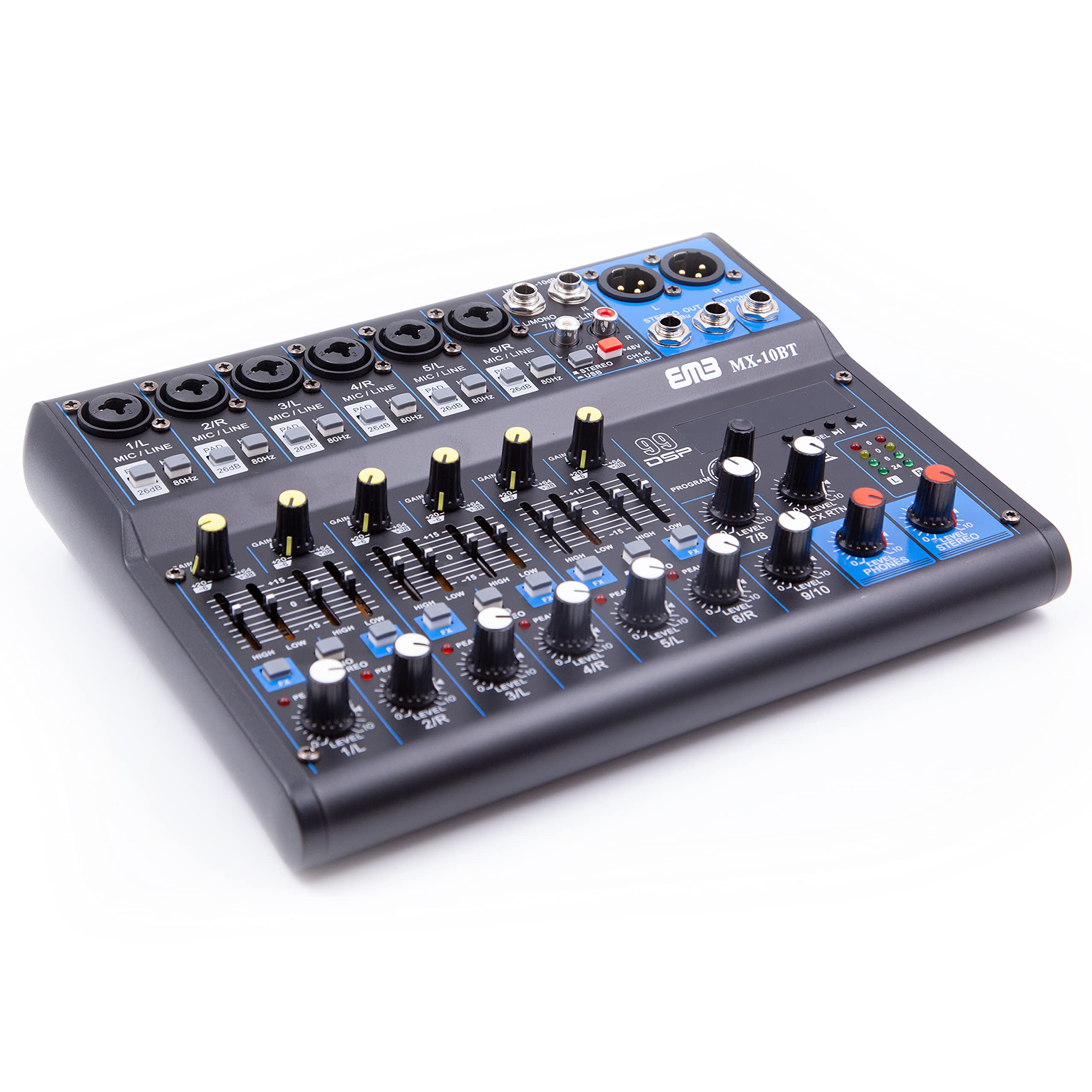

The EMB Professional MX-10BT is a compact 10-channel audio mixer designed to combine microphones, instruments, playback sources, and other audio signals into a controlled stereo mix. It provides a practical central point for balancing levels before sending audio to compatible amplification or monitoring equipment. This makes it suitable for small live-sound setups, rehearsals, presentations, karaoke systems, and basic content-production applications.

Its channel capacity gives users room to manage several sources at once rather than relying on separate volume controls across multiple devices. The mixer is intended for users who need hands-on control of input balance and signal routing in a tabletop format. Bluetooth streaming and USB MP3 playback add convenient options for background music, breaks, or playback cues.

The MX-10BT includes a 99-program digital effects processor for adding selectable processing to compatible sources within a mix. An instrument-input switch is specified for sources such as guitar, bass, and aerophone. These features allow a straightforward setup to accommodate microphones, instruments, and playback without requiring a separate effects unit for basic applications.

For microphone-based setups, the mixer provides XLR 48V power support for compatible condenser microphones. It is also specified for use with microphones using a 3.5 mm plug, plus headphone monitoring. The USB MP3 player includes an LED display for playback status and control visibility.

As part of a sound system, the MX-10BT can be placed between source devices and compatible powered speakers, an amplifier, or other equipment using its audio connections. Bluetooth and USB playback can supplement wired inputs, while the main mix serves as the signal source for the next stage of the system. Its DC input and included AC-range power specification support use in fixed or portable audio arrangements.

Key Features

• 10-Channel Mixing: Combines multiple microphones, instruments, and playback sources in one console.
• 99 DSP Programs: Provides selectable built-in digital effects for compatible mix sources.
• Bluetooth Playback: Streams audio wirelessly from compatible Bluetooth devices.
• USB MP3 Player: Plays MP3 files from a USB source with LED display feedback.
• 48V XLR Power: Supports compatible condenser microphones requiring 48V phantom power.
• Instrument Input Switch: Accommodates specified instruments including guitar, bass, and aerophone.

Design & Installation

The MX-10BT uses a compact tabletop mixing-console format with channel controls, input connections, effects controls, USB playback functions, and an LED display arranged for hands-on operation. EMB does not publish a confirmed enclosure-material specification for this model. Its layout is intended to keep source-level adjustment and playback functions accessible during operation.

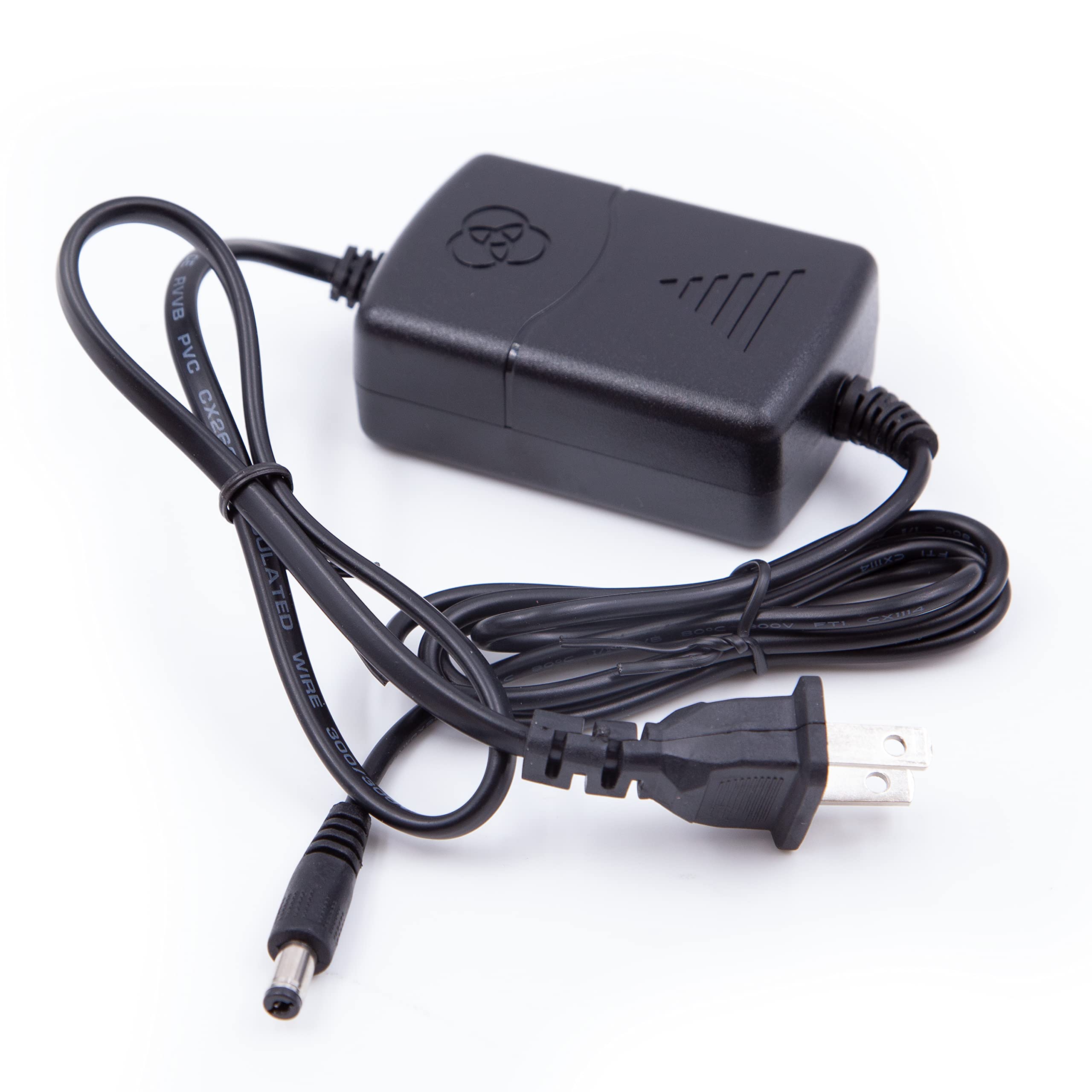

Place the mixer on a stable, dry surface with room for cable connections and ventilation. Connect microphones, instruments, and playback sources before routing the mixer output to compatible powered speakers, an amplifier, or monitoring equipment; keep levels reduced before powering the system. Use the specified DC 12V input with an AC 110V-240V, 50Hz-60Hz power source as applicable, and activate 48V power only when using compatible microphones that require it.
