Roland JD-08 Boutique Sound Module Synthesizer

The Roland JD-08 is a compact Boutique sound module that brings the hands-on sound-design approach of the Roland JD-800 to a portable desktop format. It is made for musicians, producers, and sound designers who want detailed digital synthesis without dedicating a full-size keyboard to the setup. Its small footprint makes it practical beside a computer, in a hardware rig, or as part of a mobile production system.

JD-08 uses Roland modeling technology to recreate the JD-800 sound architecture, including its four-tone layered structure and 108 original waveforms. This approach supports complex digital pads, changing textures, leads, basses, and percussive electronic sounds. Direct-access controls help users adjust major synthesis parameters while shaping or performing a patch.

Each sound can combine up to four tones, allowing layers with separate waveform, pitch, filter, amplifier, envelope, and modulation settings. Two LFOs and multi-stage pitch, TVF, and TVA envelopes provide tools for movement and evolving timbres. The module also offers up to 128-note maximum polyphony, though available polyphony depends on the tones in use.

The JD-08 adds contemporary sequencing functions to the classic design. Its two-part, 64-step polyphonic sequencer records up to eight notes per step and supports motion recording for controller changes. An onboard arpeggiator and random pattern generator provide additional ways to build ideas without a computer.

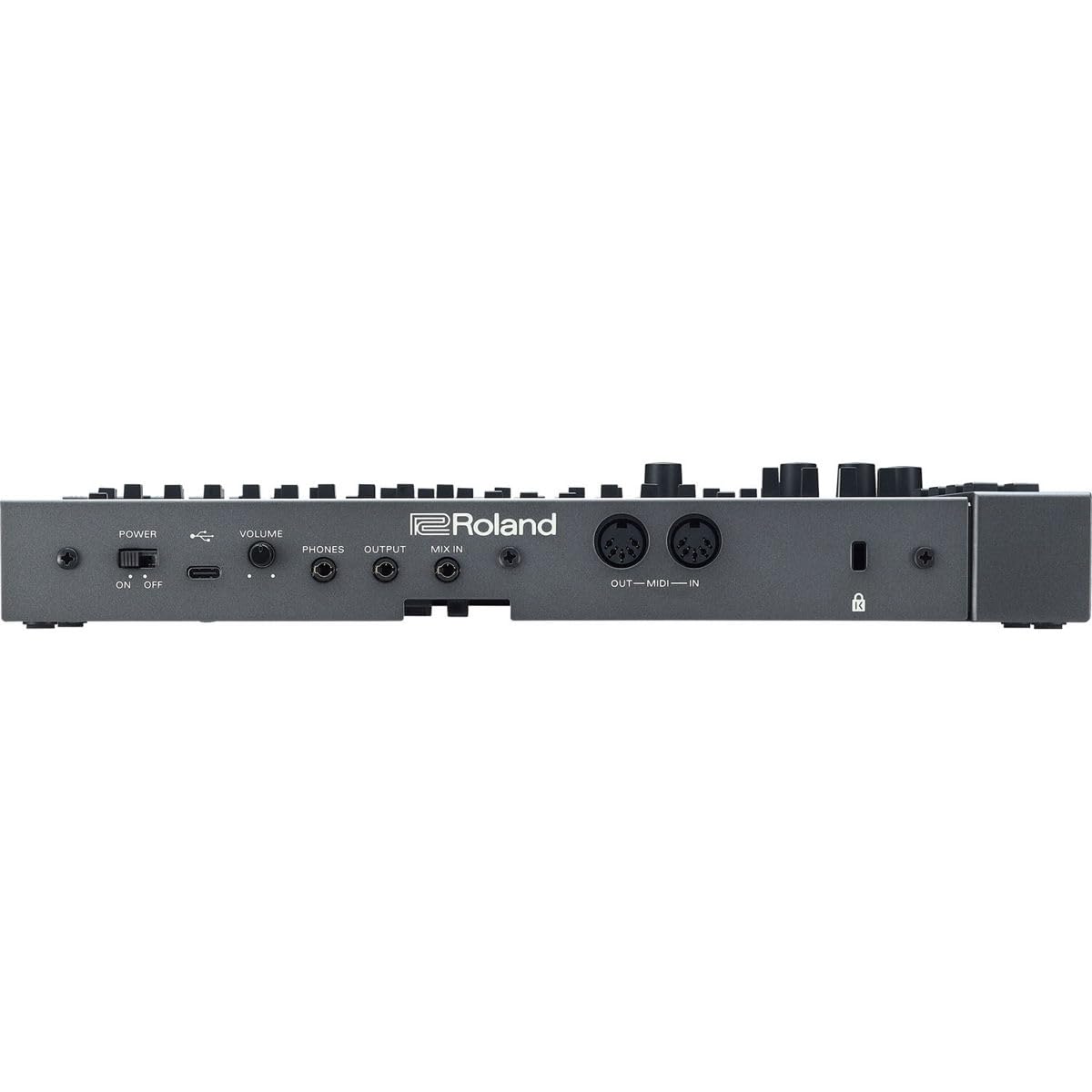

For integration, the JD-08 provides USB-C audio and MIDI, full-size MIDI IN and OUT ports, and an external clock input. Stereo output, headphones, and mix input connections support monitoring and connection with other audio devices. It can run from USB bus power or four AA batteries, and the built-in mini speaker offers convenient local monitoring.

Key Features

• JD-800 Sound Architecture: Uses Roland modeling technology with the original JD-800 waveform and tone structure.
• Four-Tone Layering: Combines up to four tones for detailed, layered sound design.
• 128-Note Maximum Polyphony: Supports larger layered sounds, with actual availability depending on tone processing load.
• Two-Part Polyphonic Sequencer: Creates 64-step patterns with up to eight notes per step.
• Seven Editable Effects: Provides distortion, phaser, spectrum, enhancer, delay, chorus, and reverb.
• USB-C and MIDI Connectivity: Connects with computers, MIDI controllers, sequencers, and synchronized hardware rigs.

Design & Installation

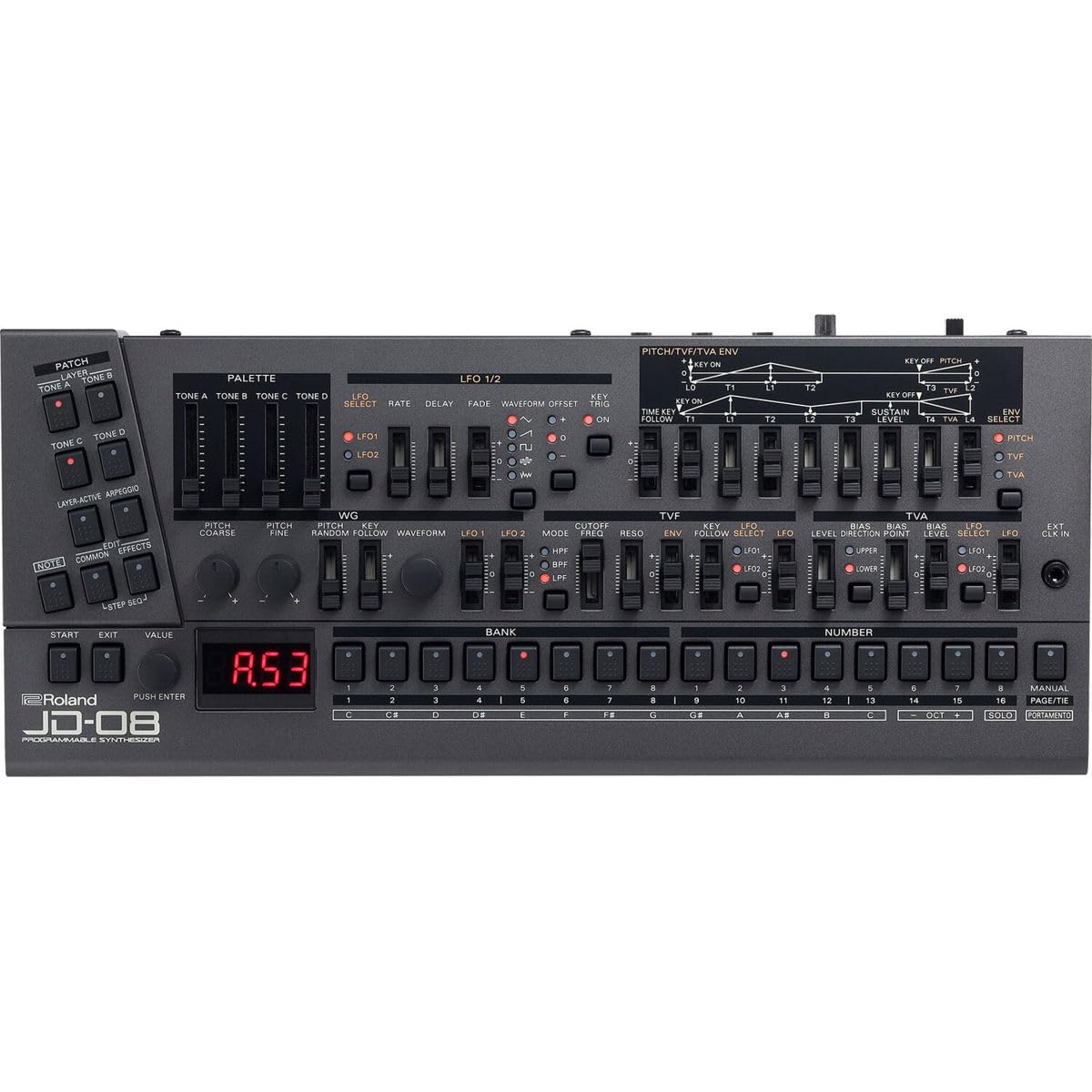

The JD-08 uses the compact Roland Boutique format with a metal front panel, dedicated sliders, buttons, and knobs modeled around the JD-800 workflow. A four-character, seven-segment LED display provides patch, parameter, and tempo information. The front-panel layout keeps core waveform, modulation, filter, amplifier, envelope, effects, and sequencing functions within reach.

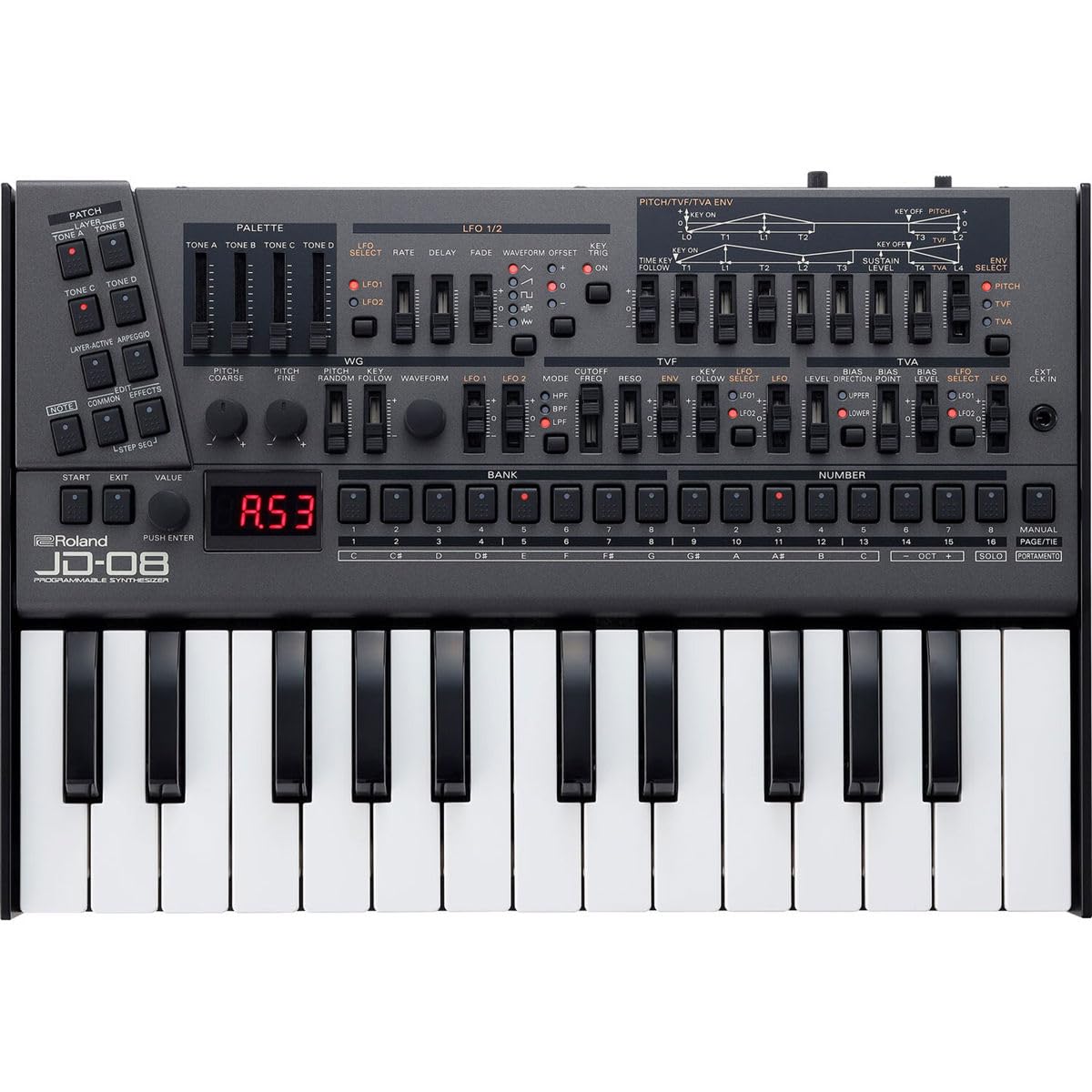

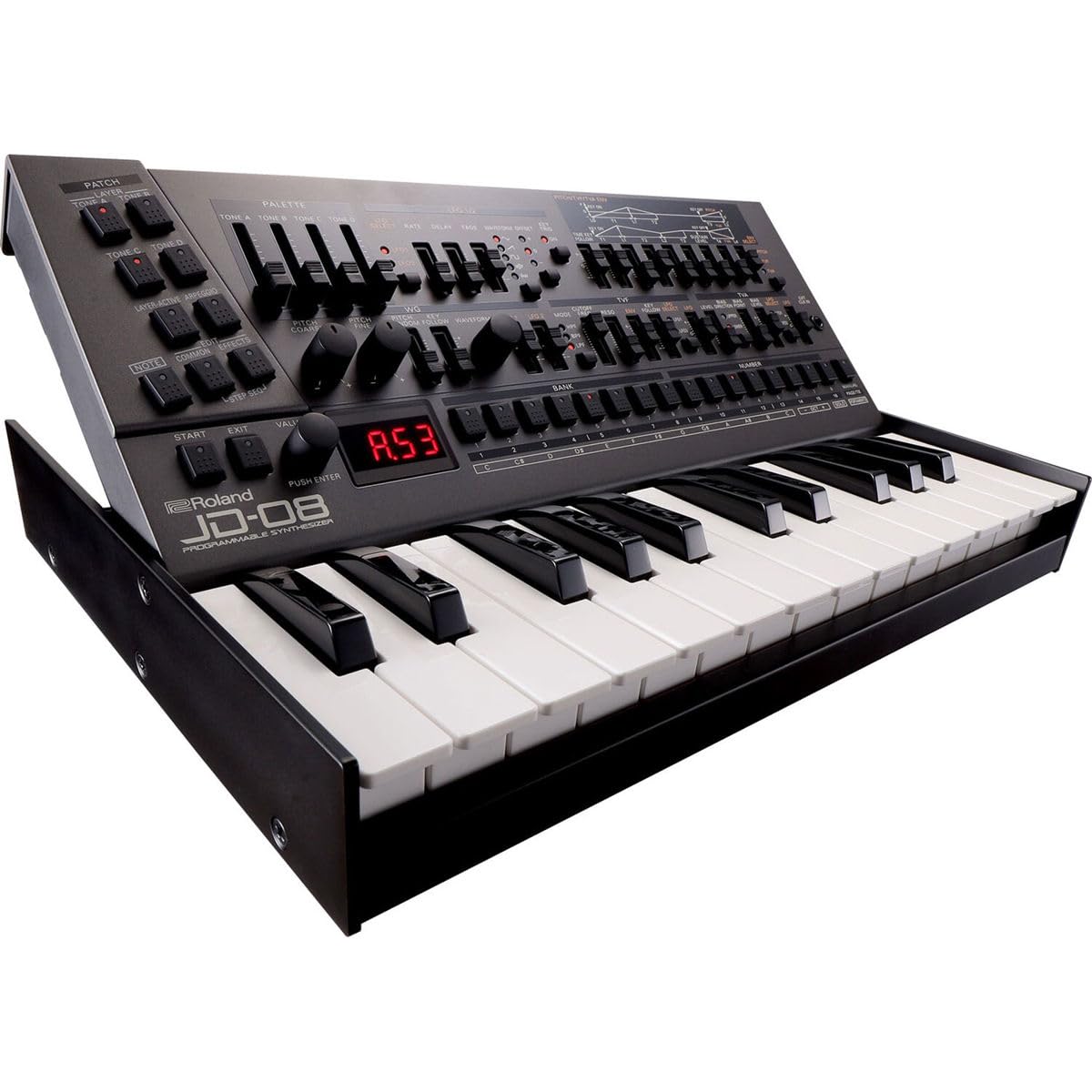

Place the module on a desktop, connect it to a computer with a USB-C cable, or use standard MIDI cables with external controllers and sequencers. Connect headphones, monitor speakers, or an audio interface through its stereo mini-jack connections as appropriate for the system. The optional Roland K-25m Keyboard Unit and DK-01 Boutique Dock provide keyboard control or angled desktop placement, respectively.
