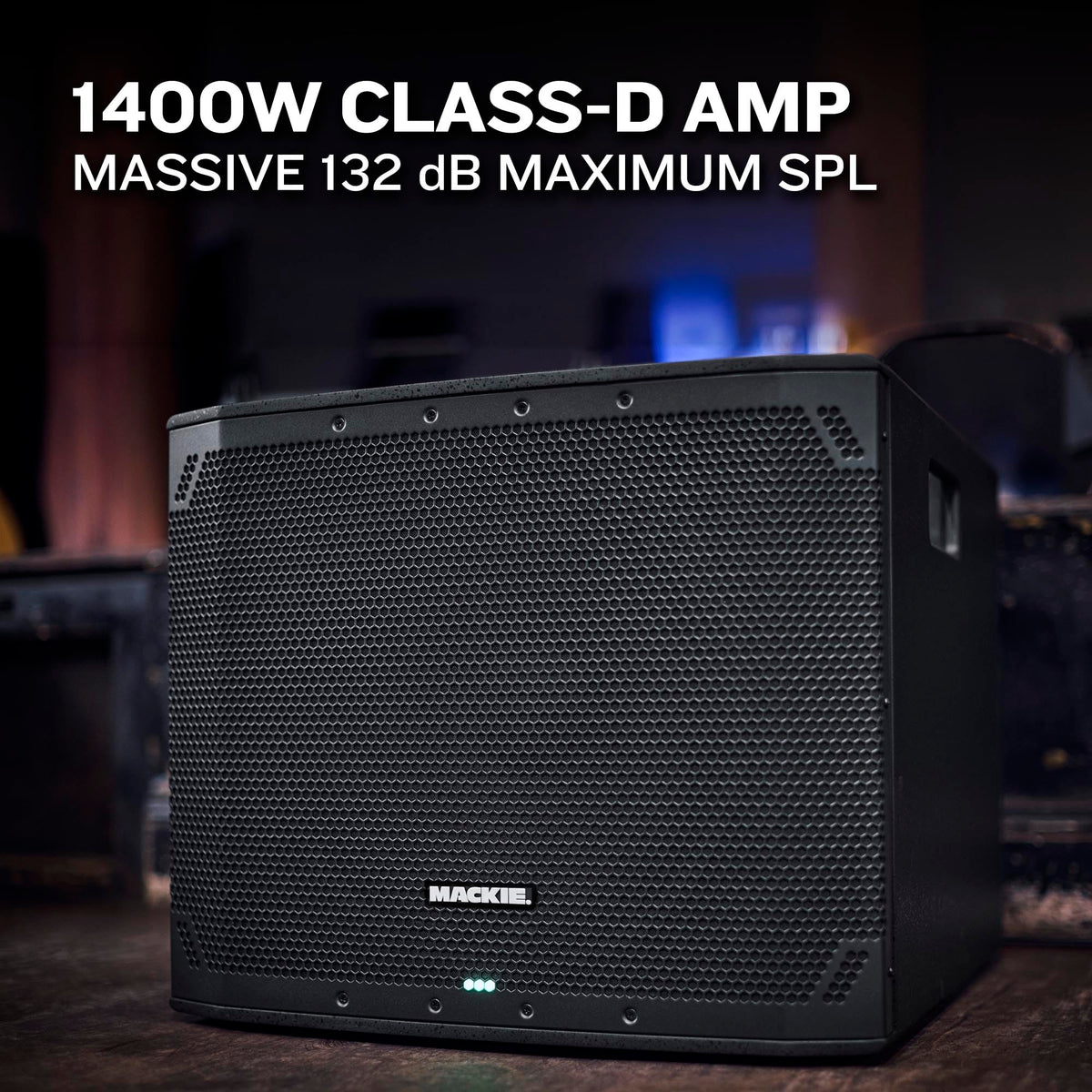

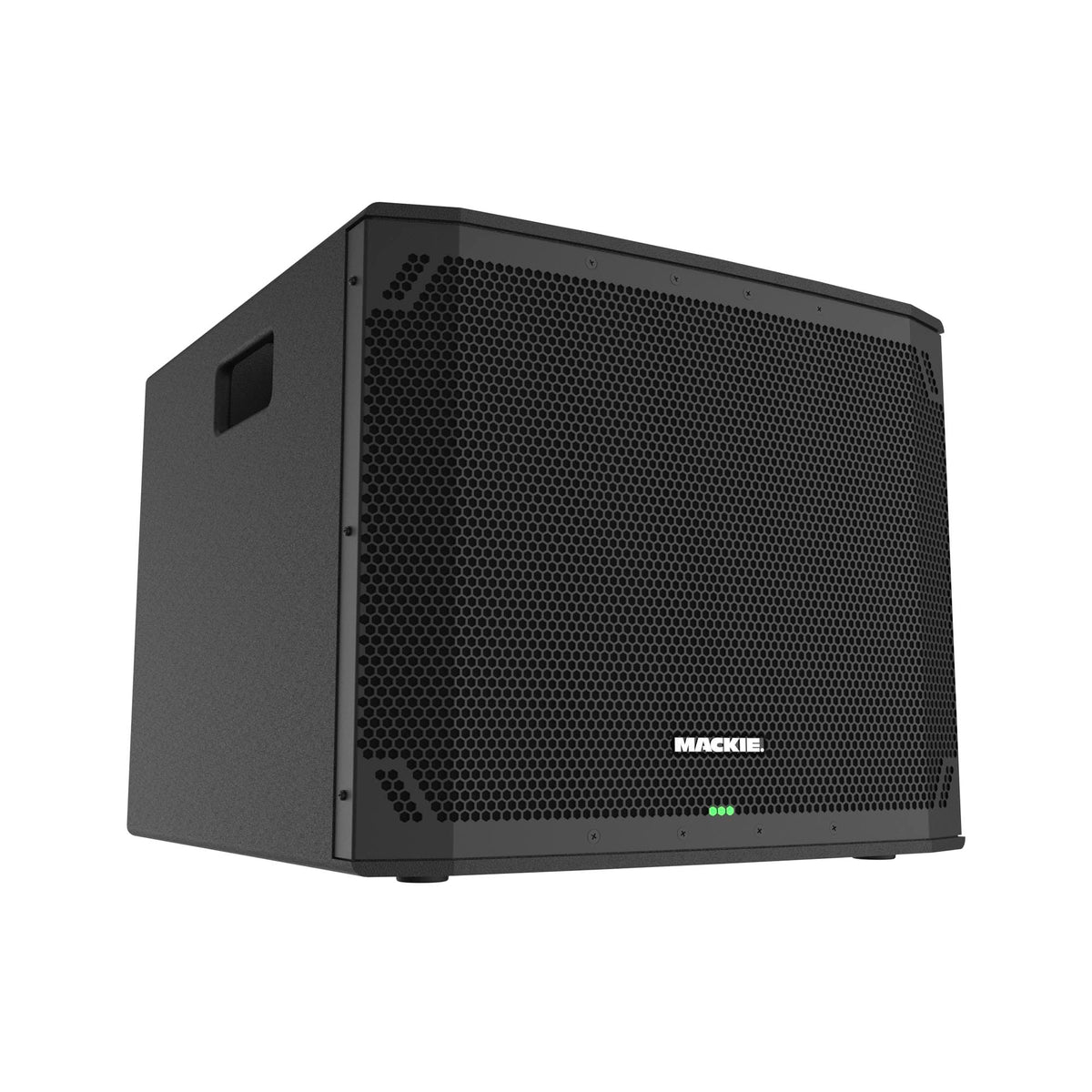

Mackie Thump15Sv4 15" Powered PA Subwoofer

The Mackie Thump15Sv4 is a 15-inch professional powered subwoofer designed to extend the low-frequency output of a live sound system. It adds dedicated bass reinforcement for music playback, DJ sets, small venues, presentations, and portable PA applications. Its integrated amplifier means it can be connected directly to a mixer, DJ controller, or other balanced line-level source without requiring a separate subwoofer amplifier.

This subwoofer is well suited to performers, mobile DJs, event providers, houses of worship, schools, and anyone building a compact powered PA system. The 15-inch woofer and Class-D amplification are designed to handle low-end material such as kick drums, bass guitar, electronic music, and recorded program audio. With a 132 dB peak maximum SPL rating, it is intended for applications where a full-range speaker system needs greater bass capability.

The Thump15Sv4 delivers a published frequency response of 27 Hz to 160 Hz at -10 dB, with a 34 Hz to 160 Hz response at -3 dB. Its onboard 1400-watt peak Class-D amplifier powers the low-frequency driver and uses convection cooling. Peak and RMS limiting, plus power-supply and amplifier thermal protection, help support dependable operation during demanding use.

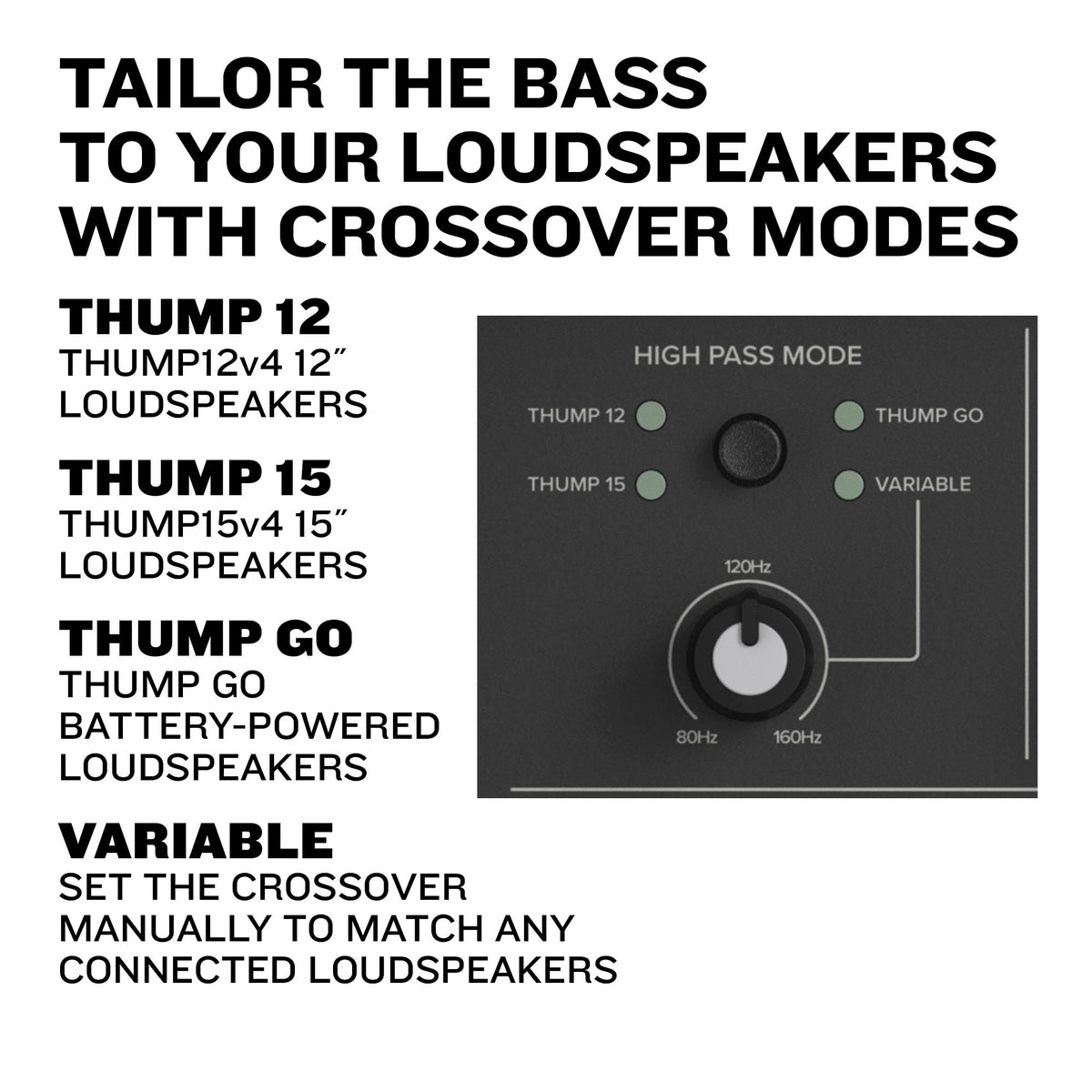

Flexible crossover processing helps the Thump15Sv4 integrate with compatible powered loudspeakers. Dedicated high-pass modes are provided for Mackie Thump12v4, Thump15v4, and Thump GO speakers, while Variable mode allows adjustment for other connected loudspeakers. Each preset high-pass mode includes 1.4 ms of alignment delay to assist with system integration.

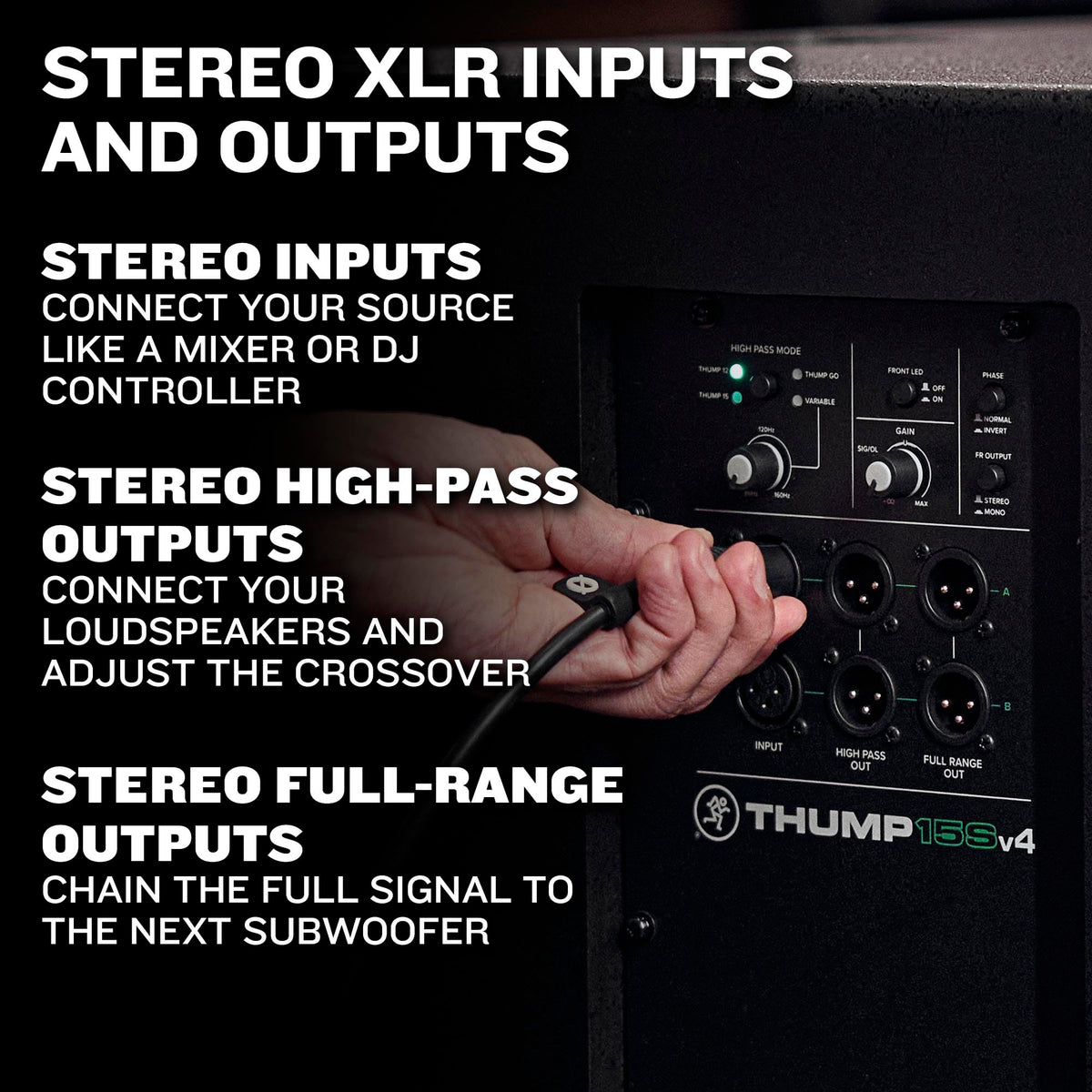

Stereo balanced XLR inputs accept a source signal, while separate balanced XLR full-range and high-pass outputs support expansion to top speakers or additional subwoofers. A stereo/mono full-range output mode, variable level control, and polarity invert switch provide useful setup control. The cabinet also includes an M20 threaded mount for an optional Mackie SPM400 speaker pole, allowing a compatible top speaker to be placed above the subwoofer.

Key Features

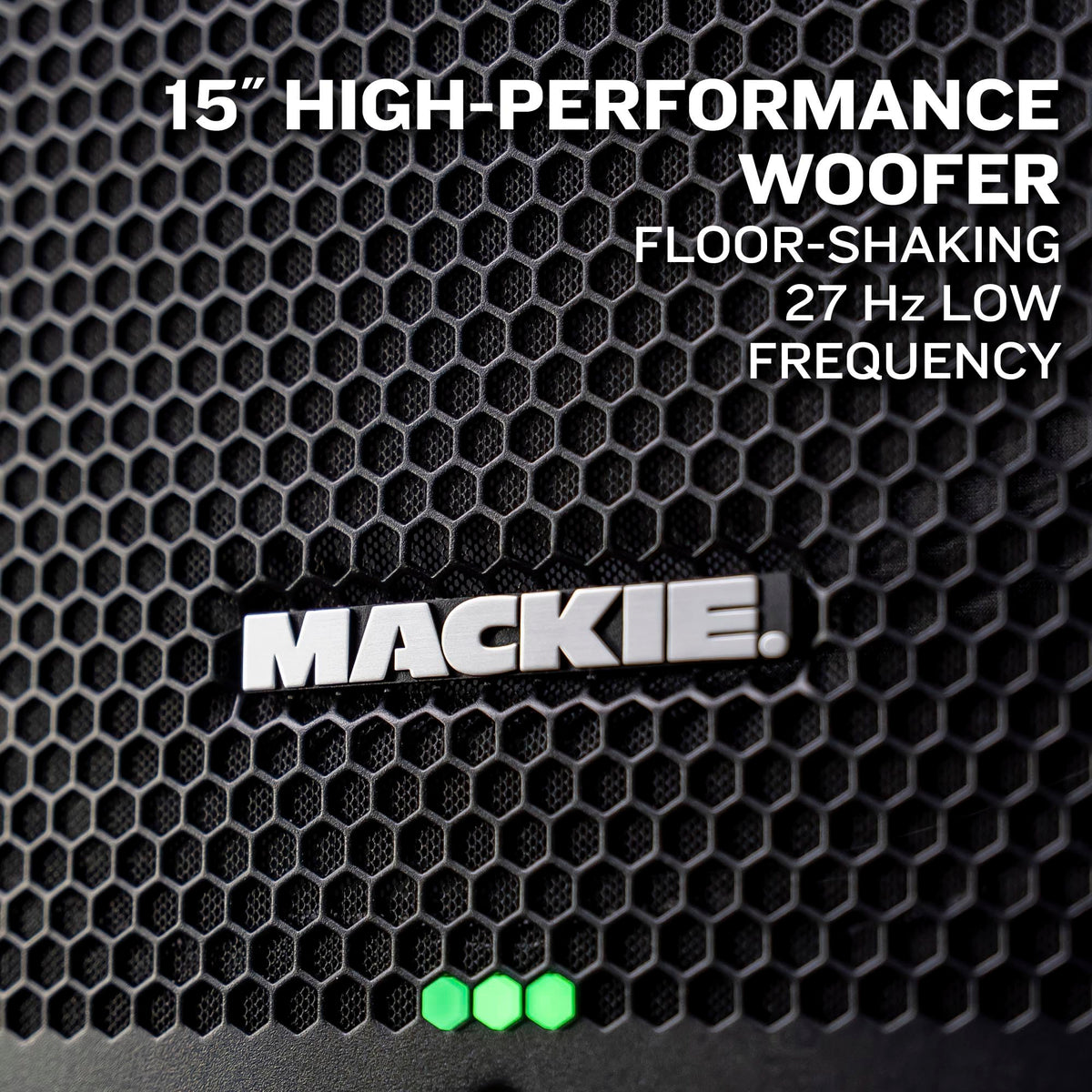

• 15-Inch Woofer: Dedicated low-frequency driver supports fuller bass in powered PA systems.
• 1400W Peak Class-D Amplifier: Built-in amplification eliminates the need for a separate subwoofer amp.
• 132 dB Peak SPL: Supports high-output use in portable live-sound applications.
• Selectable High-Pass Modes: Helps match the subwoofer to Thump speakers or other PA tops.
• Balanced XLR I/O: Connects easily with mixers, DJ controllers, speakers, and additional subs.
• M20 Pole Mount Thread: Accommodates an optional threaded pole for mounting a top speaker.

Design & Installation

The Thump15Sv4 uses rugged modern construction with integrated ergonomic carry handles for transport. Its 57.4-pound enclosure is designed to sit on a floor or stage, and Mackie specifies that it is not intended for suspension or rigging. The enclosure includes an M20 threaded mount for a compatible speaker pole, while the pole itself is sold separately.

Connect balanced XLR outputs from a mixer, DJ controller, or other line-level source to the stereo XLR inputs. Use the high-pass XLR outputs for powered top speakers and select the matching Thump 12, Thump 15, Thump GO, or Variable crossover mode; use the full-range outputs when sending an unfiltered signal to another subwoofer or downstream device. Set the level control, stereo/mono mode, and polarity switch while listening from the intended audience area for proper system balance.
