EMB Professional SB12 12" Replacement PA Speaker Driver

The EMB Professional SB12 is a 12-inch replacement PA speaker driver for restoring compatible loudspeaker cabinets with a failed woofer. It is a raw driver rather than a complete speaker system, enclosure, or powered cabinet. Its published 8-ohm impedance makes it suitable for systems designed around an 8-ohm replacement driver.

This driver is intended for PA, DJ, karaoke, and general sound-reinforcement cabinet repairs where physical and electrical fitment can be verified. The published 30 Hz to 2,000 Hz frequency-response range places its role in low-frequency and midrange reproduction. It is most appropriate for cabinet owners and installers replacing a like-sized driver with comparable operating requirements.

The SB12 uses a cast frame for a rigid mounting platform in a compatible speaker enclosure. Its published 50-ounce magnet is part of the driver motor assembly, while the 12-inch format supports common PA-style cabinet applications. The driver is fitted with red and black connection terminals for polarity-aware wiring.

Published maximum power handling is 1,500 watts, while the product designation also references CB-12 (1200W). Because maximum-power figures alone do not establish safe amplifier matching, the existing cabinet design, crossover network, impedance target, and amplifier configuration should be considered together. Use the driver within the operating limits of the complete loudspeaker system.

Before ordering, compare the original driver's outside diameter, mounting-hole pattern, cutout, depth, terminal arrangement, and impedance with this replacement. A 12-inch nominal diameter does not by itself ensure cabinet compatibility. When used in a multiway cabinet, retain or properly configure the system's appropriate crossover and high-frequency section.

Key Features

• 12-Inch PA Driver: Fits compatible 12-inch loudspeaker-cabinet replacement applications.
• 8-Ohm Impedance: Supports systems designed for an 8-ohm driver.
• Cast Frame: Provides a rigid structure for cabinet mounting.
• 50-Ounce Magnet: Uses a substantial published magnet assembly.
• 30 Hz–2,000 Hz Response: Covers low-frequency and midrange driver duties.
• 1,500-Watt Maximum Power: Published maximum power-handling specification.

Design & Installation

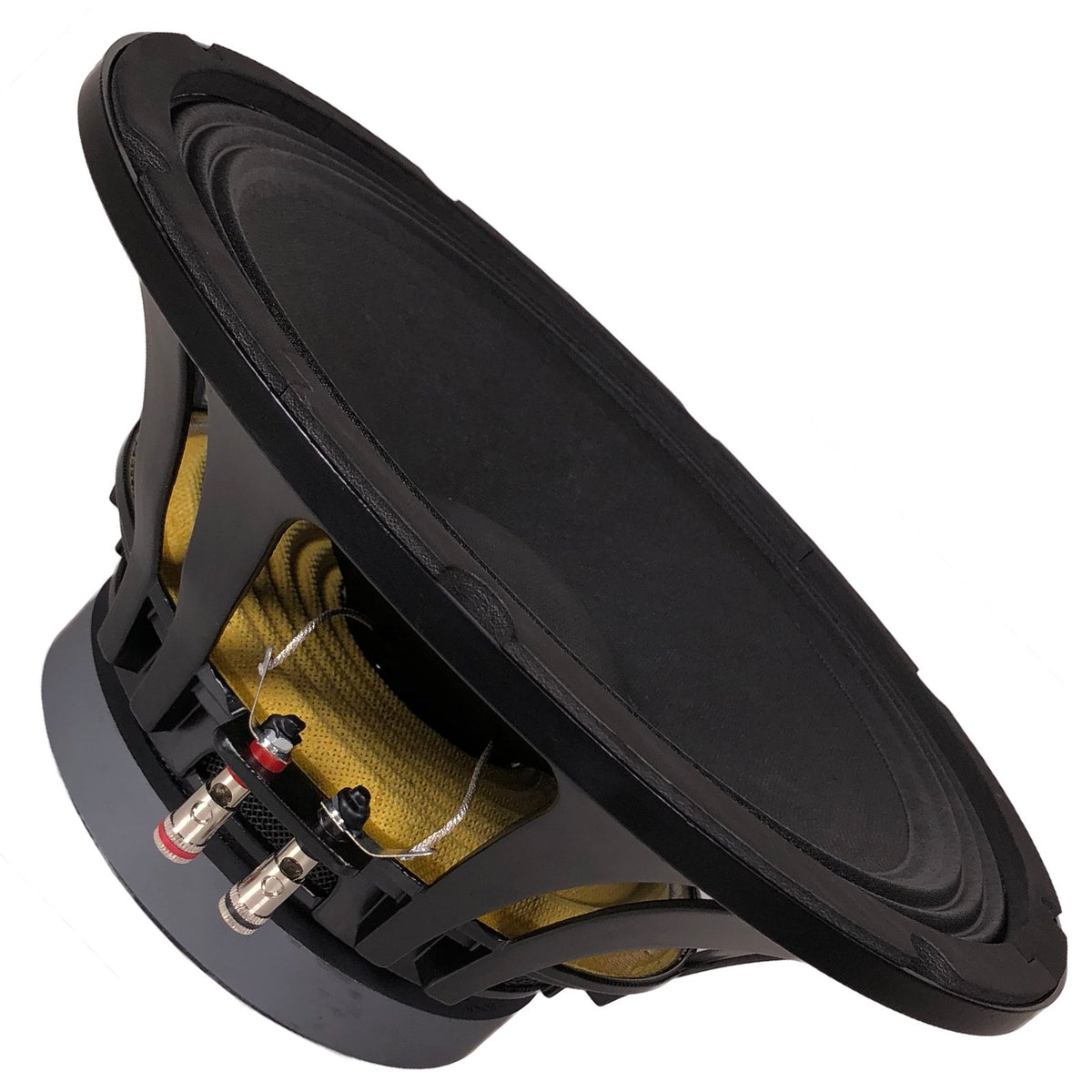

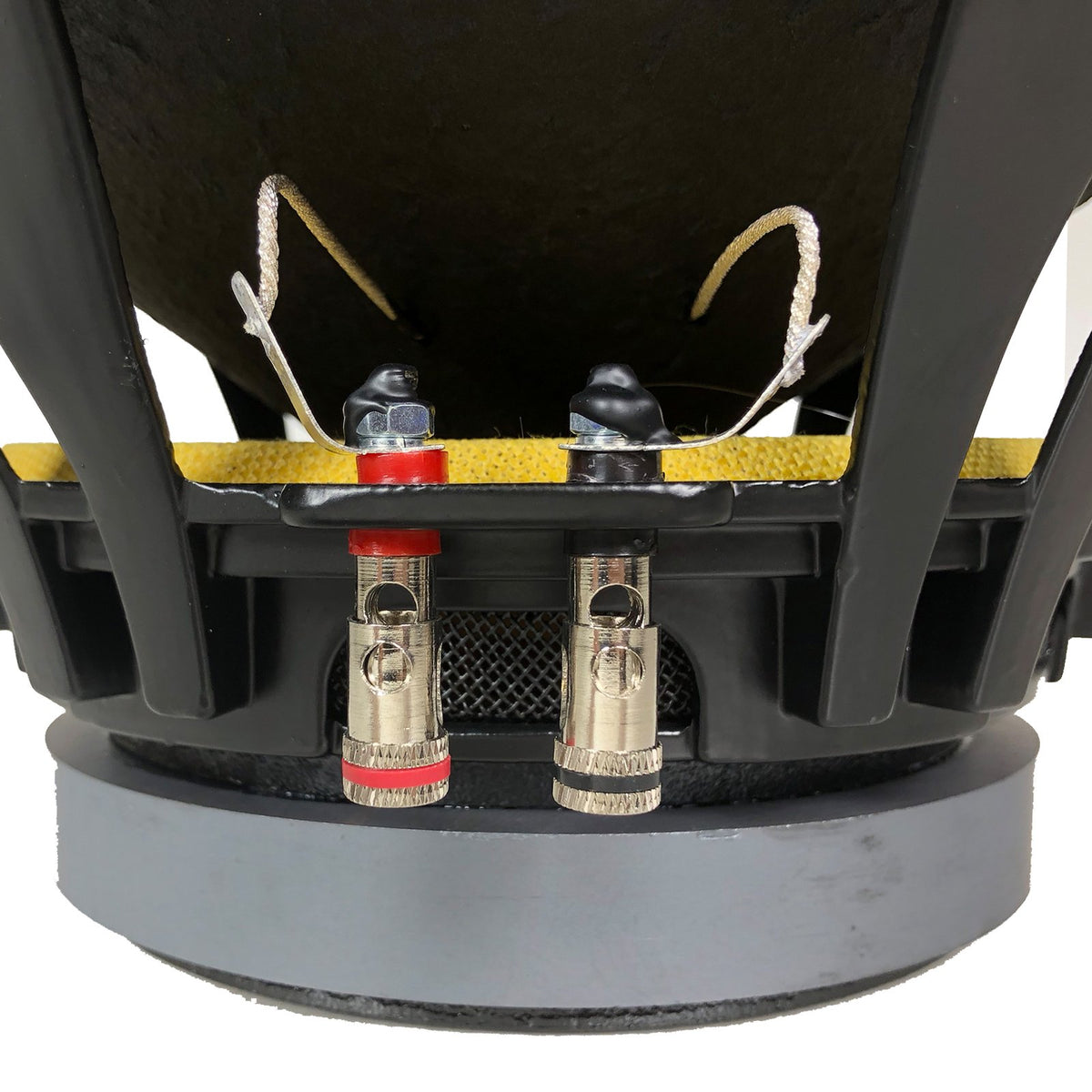

The SB12 combines a 12-inch cone driver with a cast basket and a published 50-ounce magnet assembly. Its open-frame construction is intended to mount inside a compatible loudspeaker enclosure rather than operate as a standalone speaker. Product imagery shows polarity-marked red and black speaker terminals.

Verify the original driver's dimensions and mounting pattern before installation, as mounting depth and cutout specifications are not confirmed in the available product data. Wire the driver with correct polarity and preserve the cabinet's intended impedance and crossover configuration. Pair it with a suitable enclosure, amplifier, wiring, and, where applicable, high-frequency driver and crossover network.
