Emb 2In-2Out Usb-C Audio Interface (Resolution 24Bit/96kHz) 48V Phantom Power

The EMB Professional AMBER ONE is a compact 2-in/2-out USB-C audio interface for connecting recording sources to a compatible PC or Mac. It provides a practical bridge between microphones, instruments, line-level devices, and computer-based recording software. This makes it suited to home recording, podcasting, streaming, voiceover, and basic music-production setups.

Two combo-style input connections accept XLR microphones or ¼-inch TS/TRS instrument and line-level plugs. Input 2 includes an Instrument/Line selector, allowing the interface to better match the connected source. Separate Gain 1 and Gain 2 controls provide independent level adjustment for each input.

The AMBER ONE supports recording at up to 24-bit/96 kHz resolution for detailed computer-based audio capture. Tri-color gain rings provide a quick visual reference for low, medium, and high input levels. This helps users monitor source levels while setting up vocals, guitars, keyboards, or other connected equipment.

Switchable +48V phantom power is available at the XLR microphone input for compatible condenser microphones. A front-panel ¼-inch monitor connection supports direct input monitoring mixed with DAW playback, helping performers hear their source without recording-monitoring delay. The MONITOR control can be used to choose direct input monitoring or monitoring through the DAW.

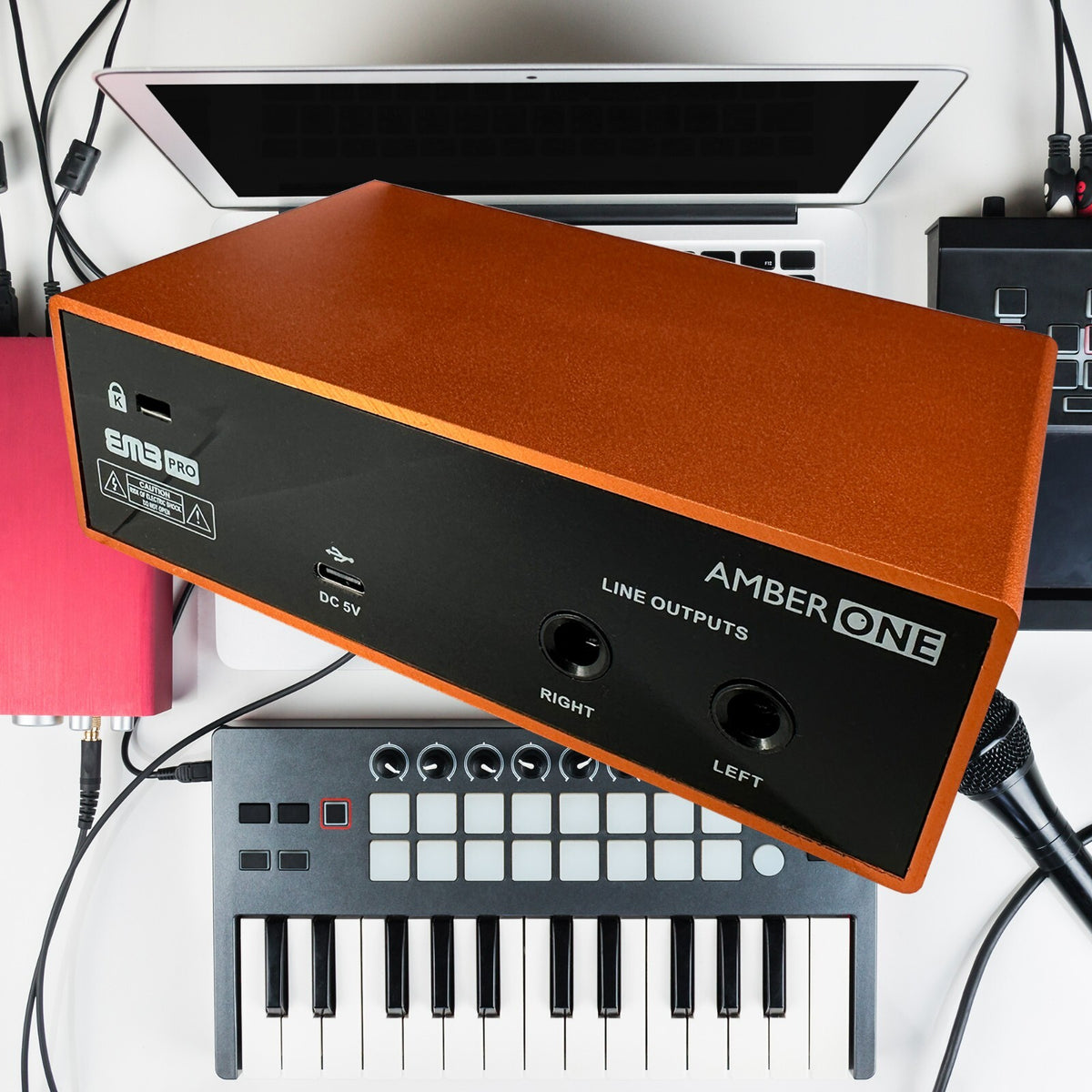

For playback, the interface includes left and right ¼-inch TRS outputs for connection to powered studio monitors. USB-C handles both bus power and data transfer, so no separate external power supply is listed. The AMBER ONE can serve as a straightforward front end for a laptop-based recording system, with recording software selected separately by the user.

Key Features

• 2-In/2-Out USB-C Interface: Connects two recording inputs and two playback outputs to a compatible computer.
• 24-Bit/96 kHz Resolution: Supports high-resolution audio recording for computer-based projects.
• XLR and ¼-Inch Inputs: Accommodates microphones, instruments, and line-level sources.
• Switchable +48V Phantom Power: Powers compatible condenser microphones connected by XLR.
• Direct Monitoring: Lets users monitor input audio with no recording-monitoring delay.
• TRS Monitor Outputs: Connects left and right outputs to powered studio monitors.

Design & Installation

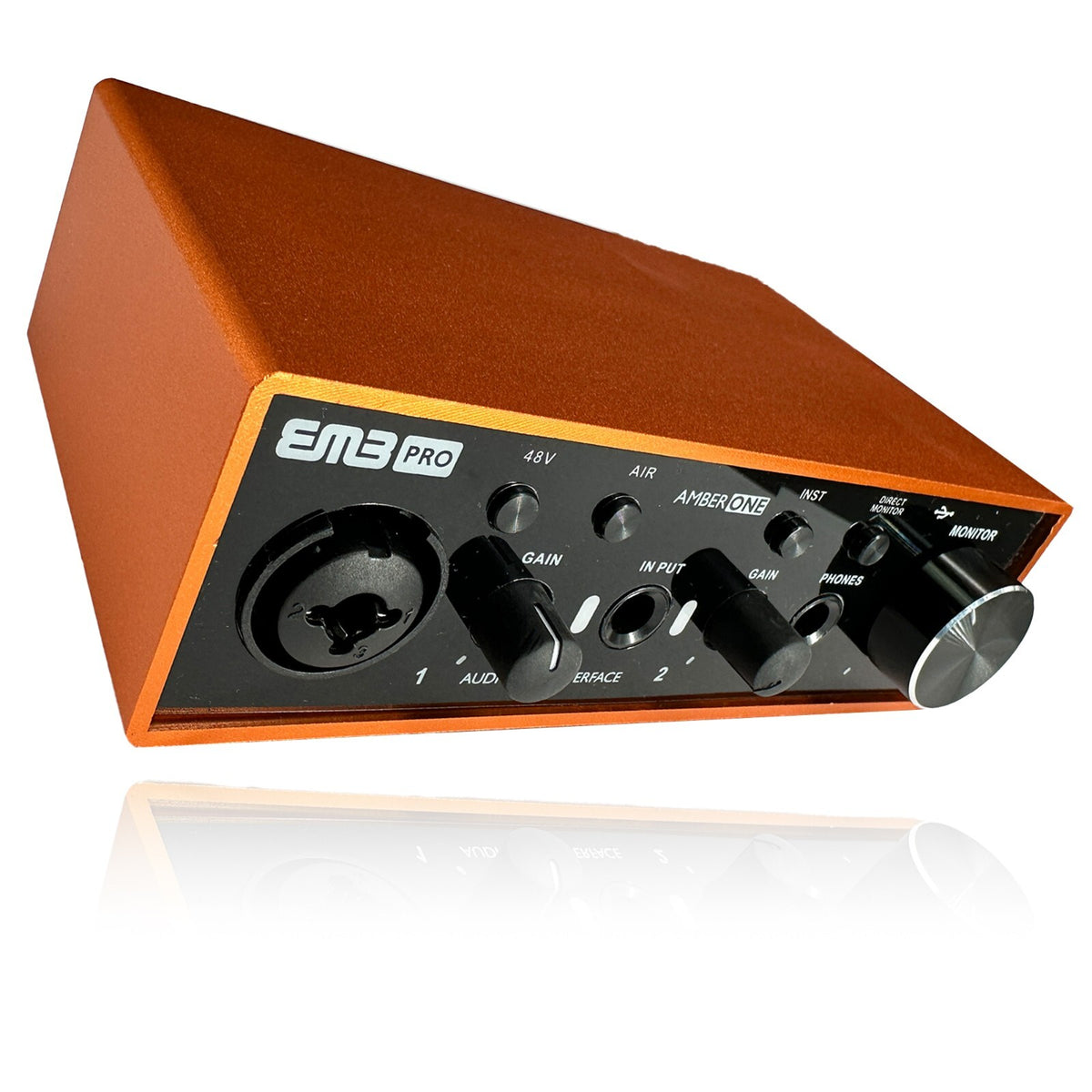

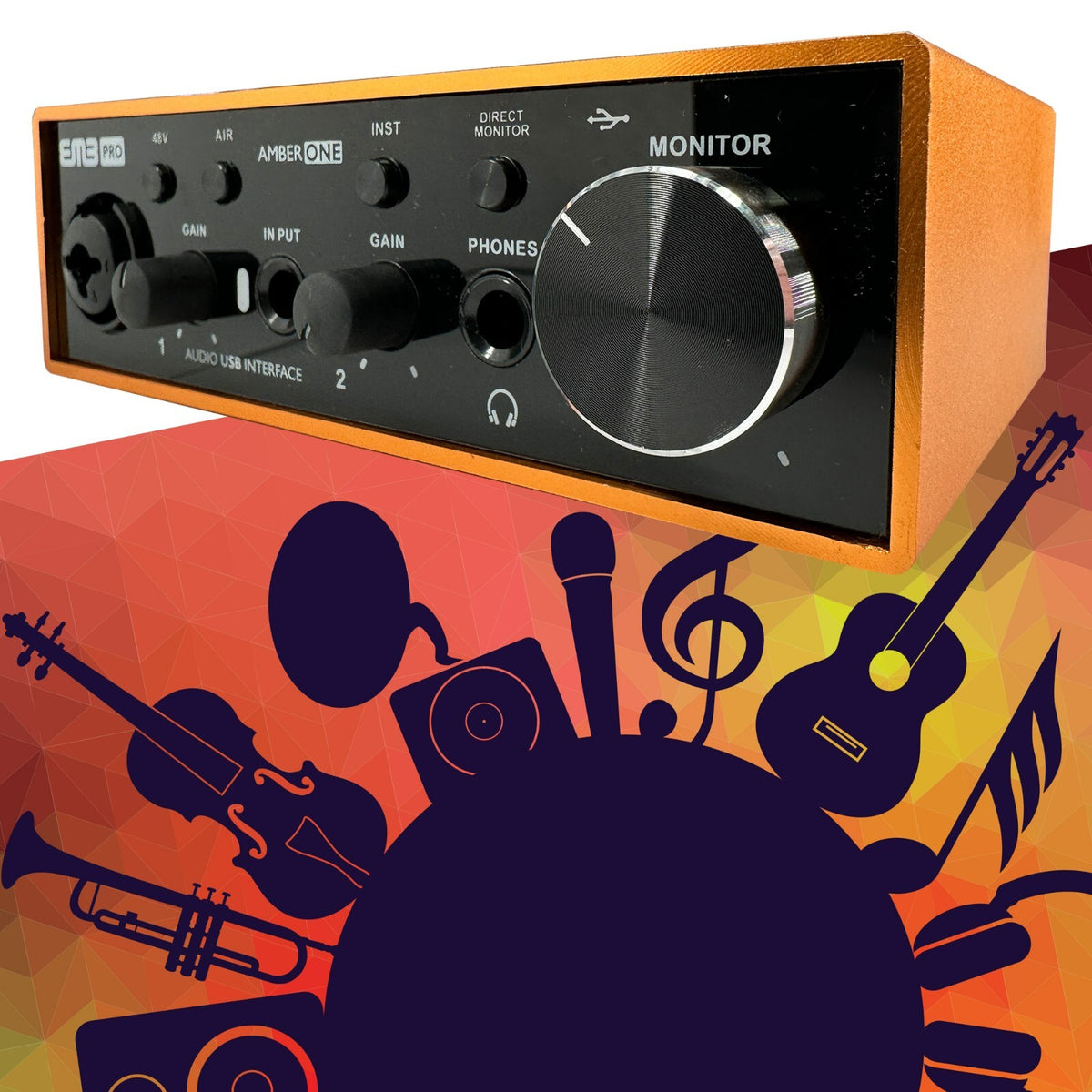

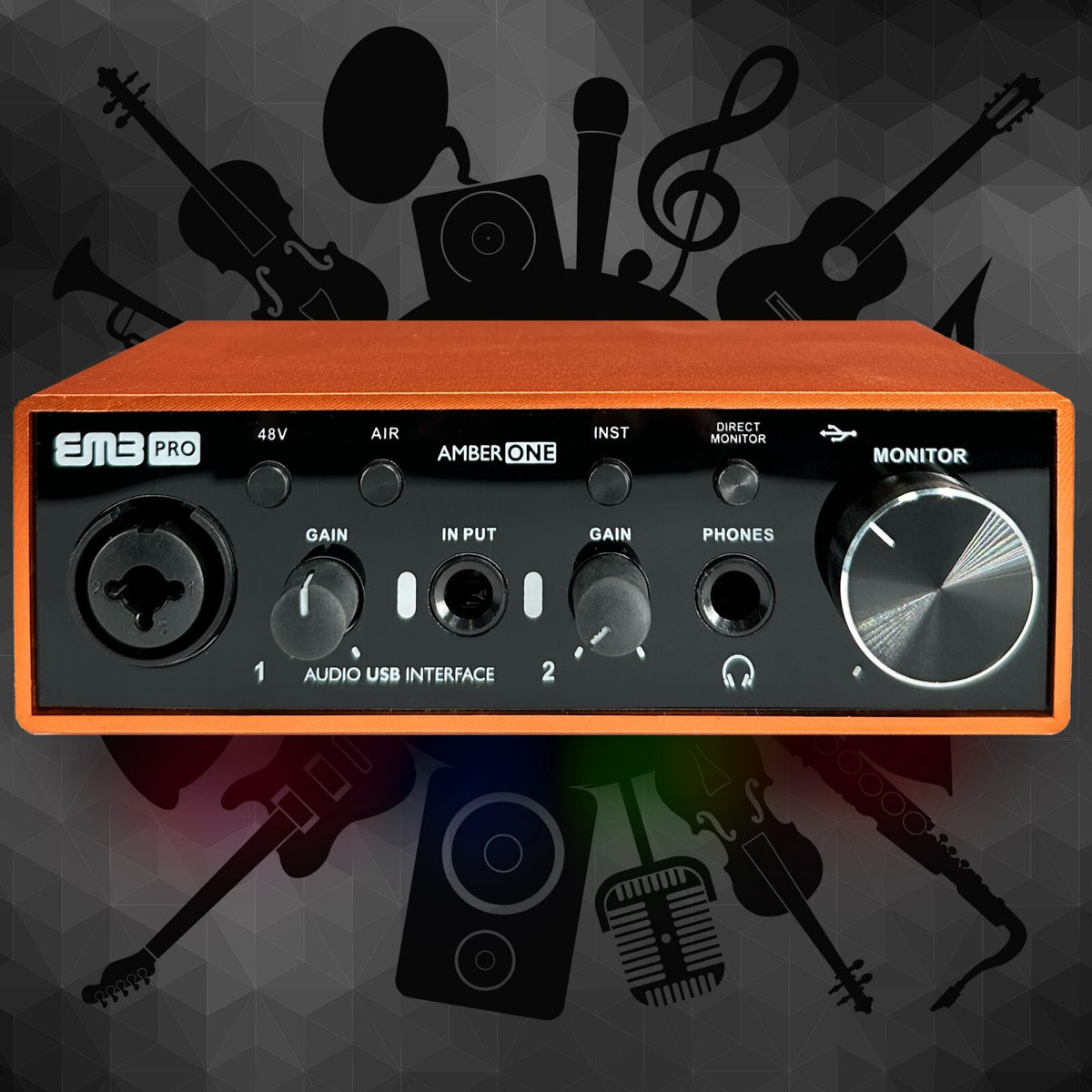

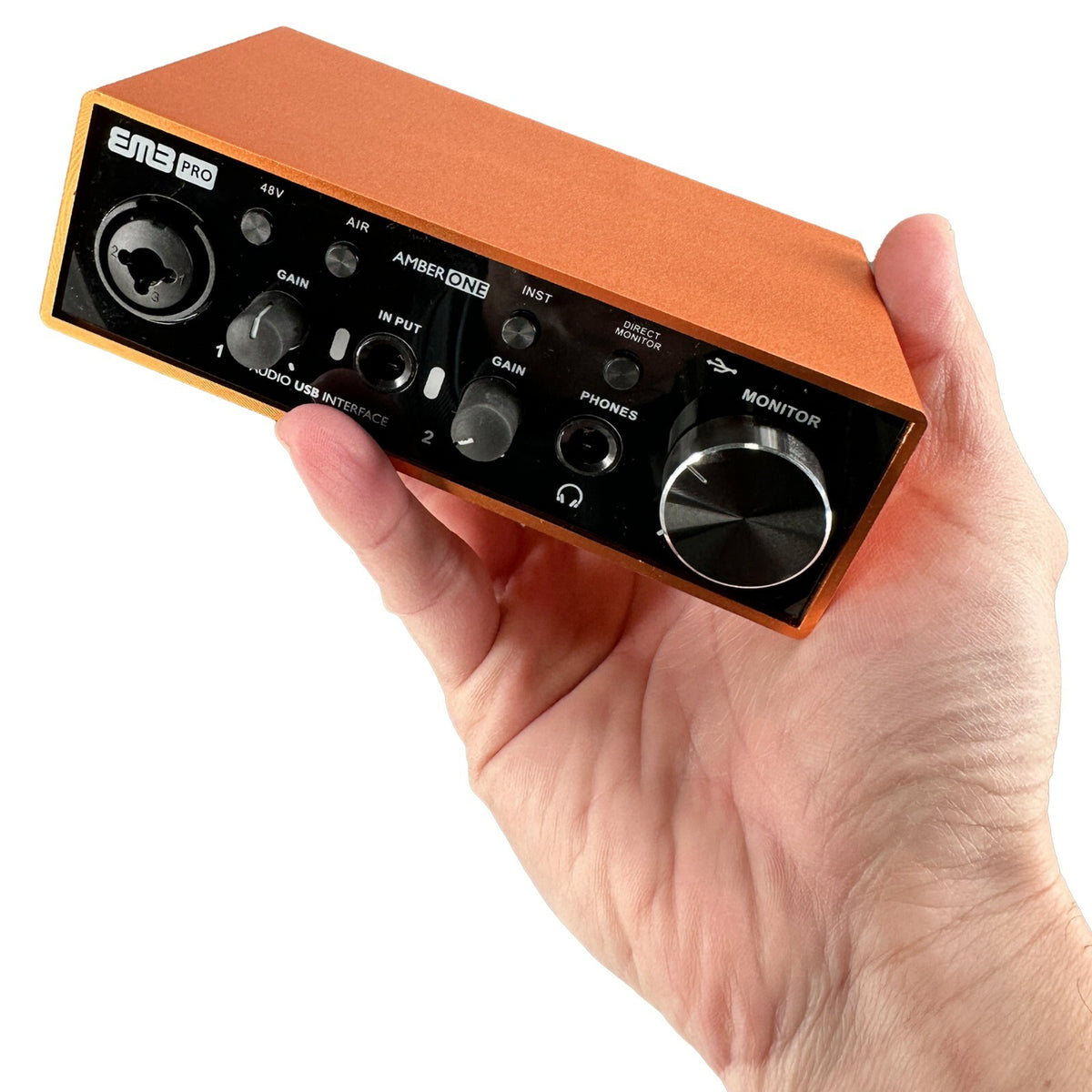

The AMBER ONE uses a compact desktop-oriented layout with front-panel gain controls, monitor control, status lighting, and a ¼-inch monitor connection. Its published information identifies tri-color LED gain rings, a USB status LED, an Instrument/Line indicator, and an anti-theft lock hole. Chassis material and exact physical dimensions are not published in the confirmed product details.

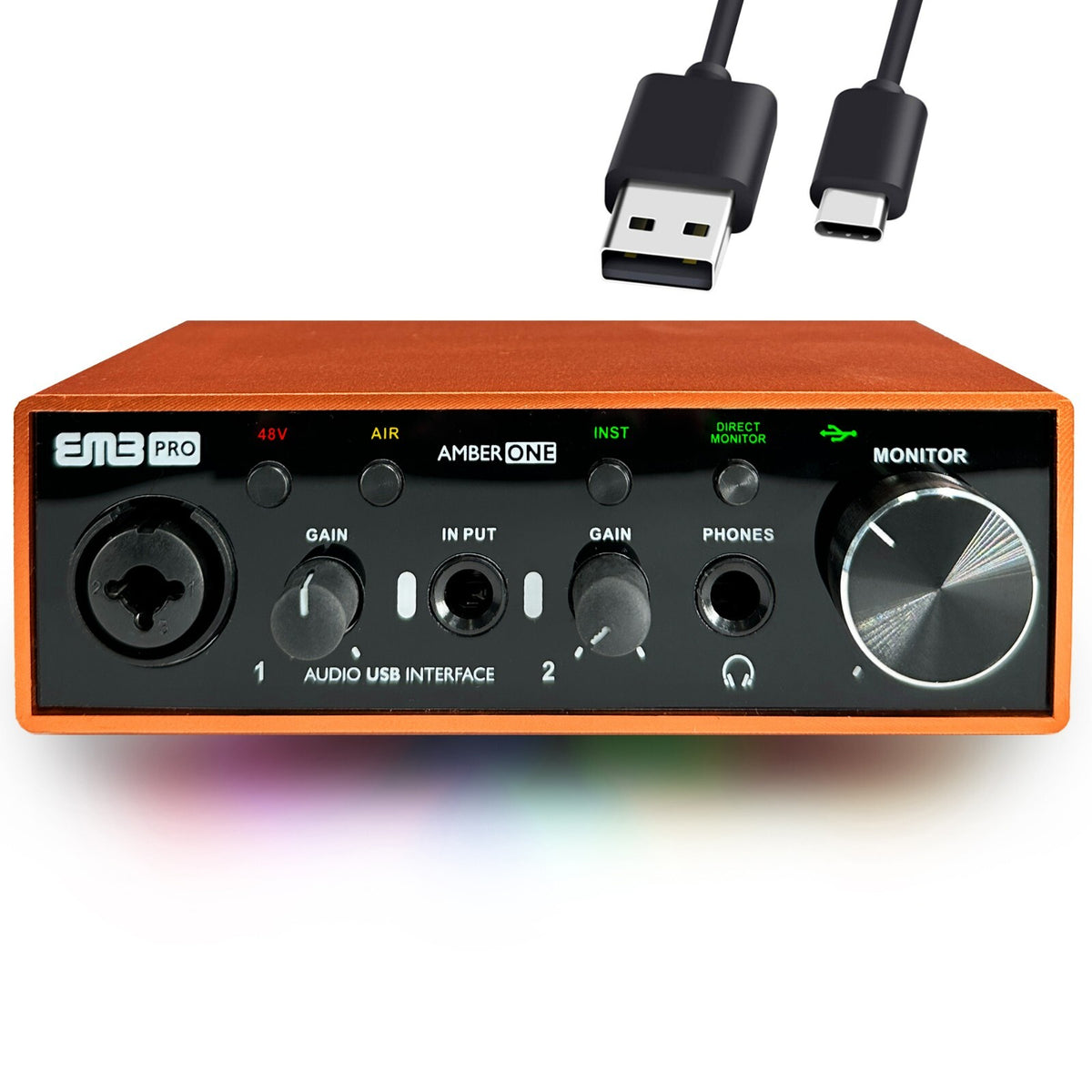

Connect the interface to a compatible PC or Mac with the included USB-C cable, then select it as an audio input and output device in the desired recording or streaming software. Use XLR for microphones and ¼-inch TS or TRS plugs for instruments or line-level sources; select Instrument or Line mode on Input 2 as appropriate. Connect powered studio monitors to the left and right ¼-inch TRS outputs, and enable +48V only when using a compatible condenser microphone.
