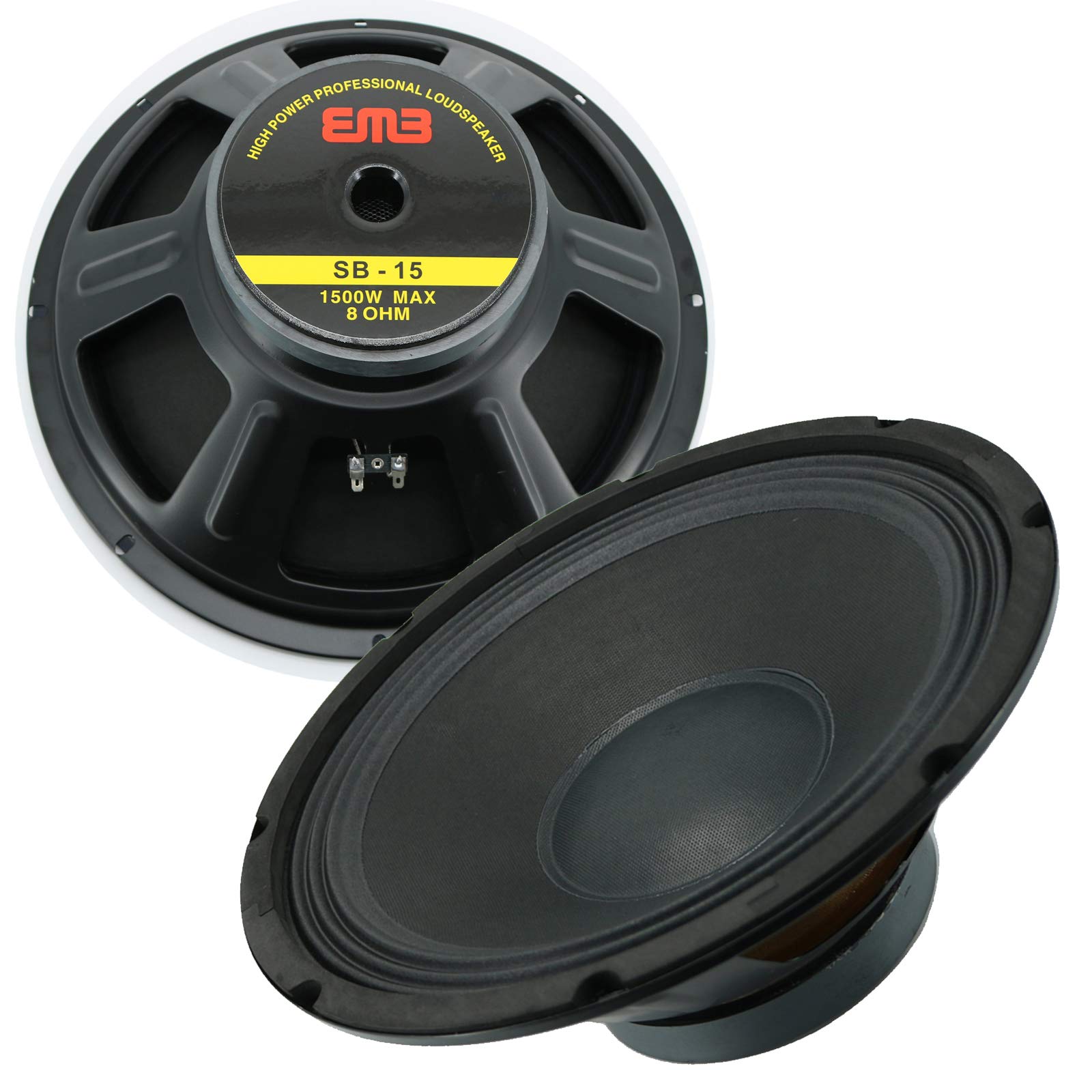

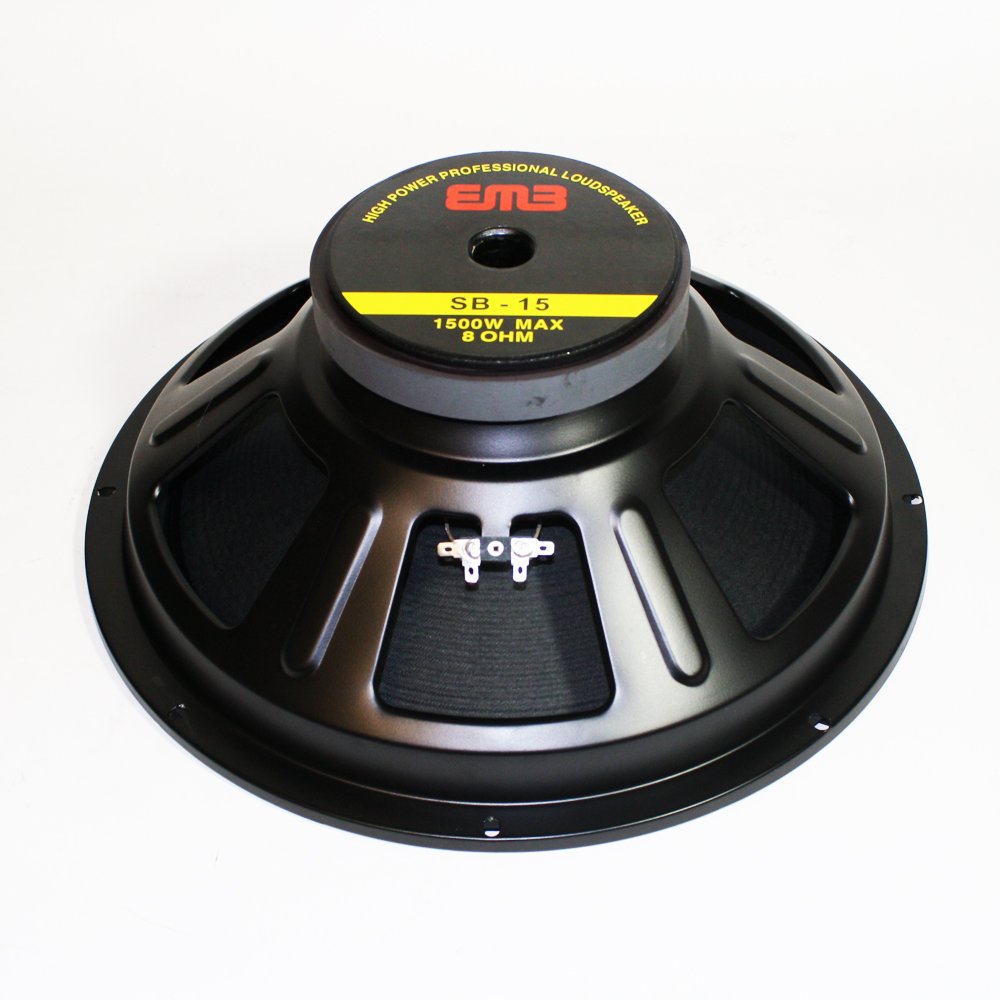

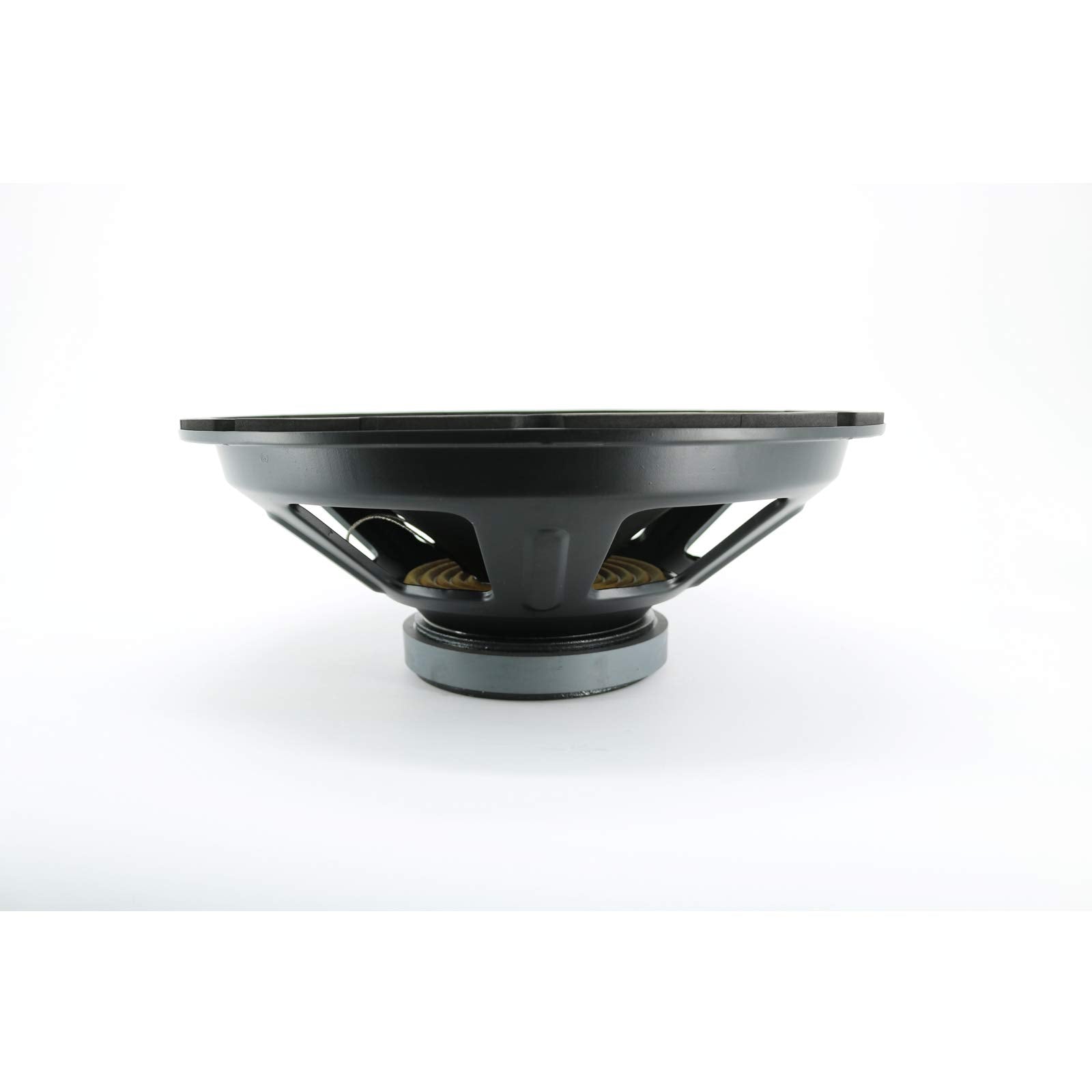

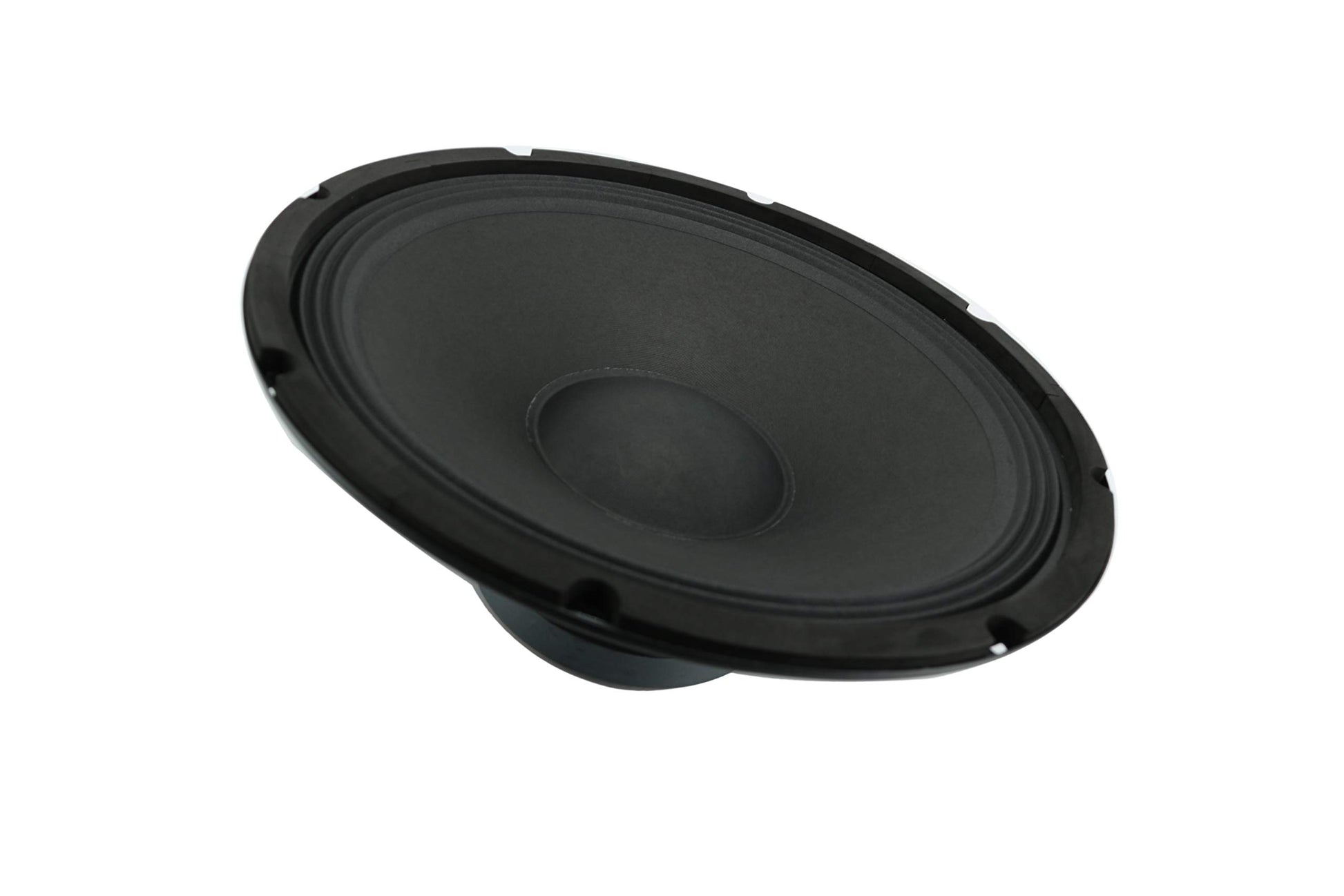

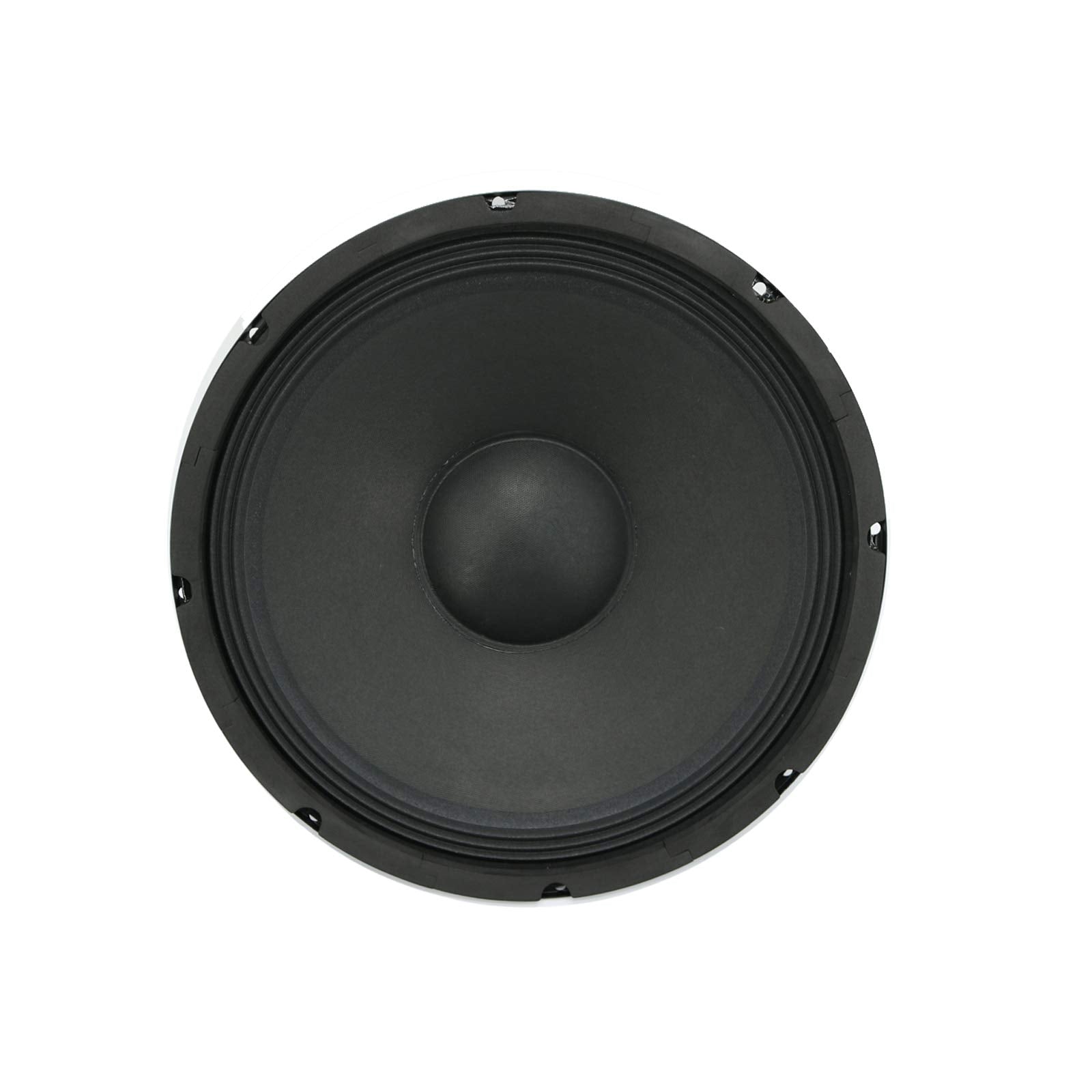

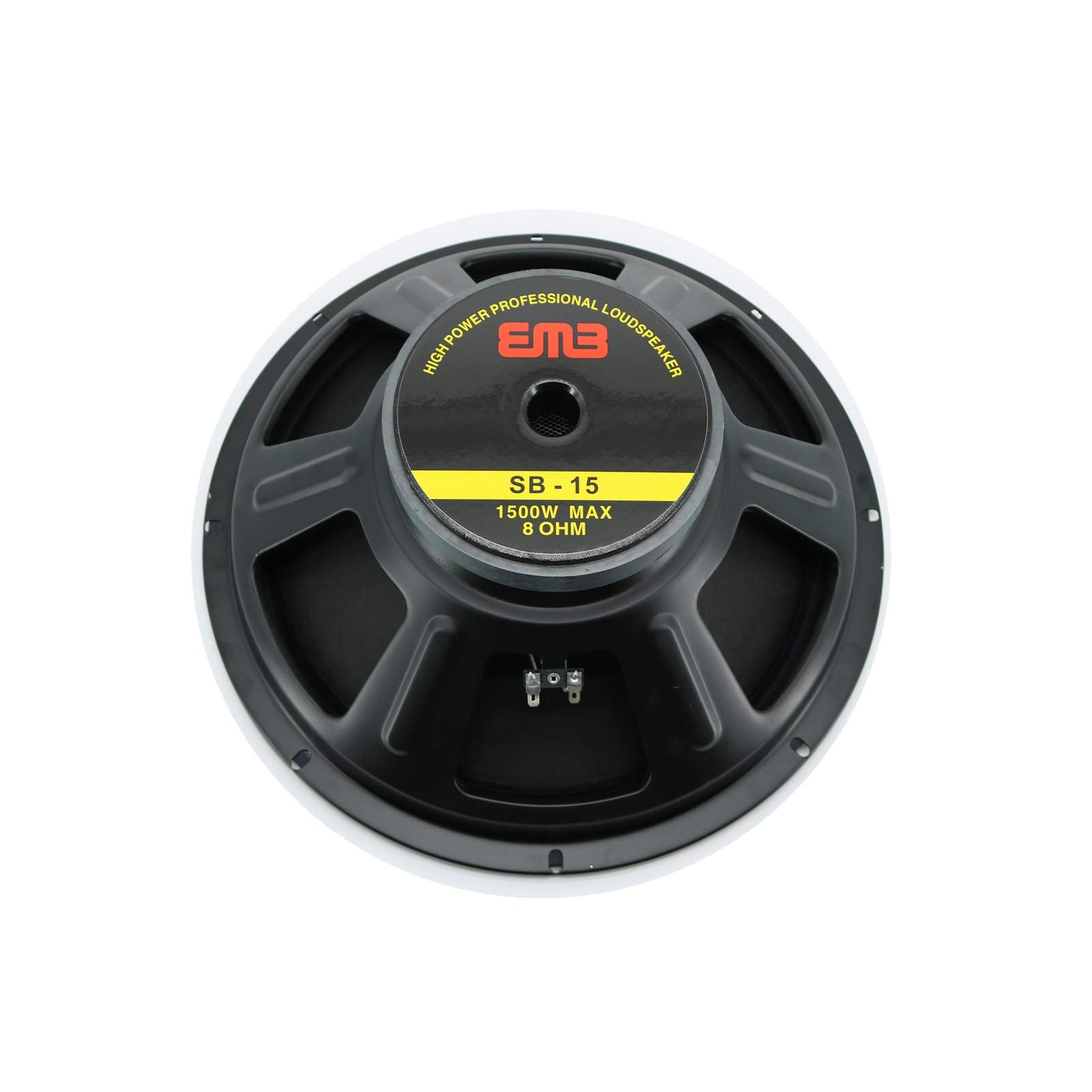

EMB Professional SB-15 15" 8-Ohm Replacement Speaker

The EMB Professional SB-15 is a 15-inch passive replacement speaker intended for rebuilding or repairing compatible professional audio speaker cabinets. It provides an 8-ohm impedance for systems designed around an 8-ohm replacement driver. This makes it a practical component option when an existing cabinet has a worn, damaged, or failed speaker driver.

This replacement speaker is marketed for use with cabinets associated with JBL, Peavey, Cerwin Vega, Gemini, EMB, BMB, Pyle-Pro, Mr. DJ, and other brands. It is suited to PA, DJ, karaoke, installed-sound, and similar speaker-cabinet projects where the original driver specifications are closely matched. Brand compatibility alone does not confirm fit, so the original driver's dimensions and electrical requirements should be compared before purchase.

The SB-15 carries a listed 800-watt power-handling rating and an 8-ohm load rating. Its final output, tonal balance, and usable frequency range depend on the cabinet design, crossover network, amplifier, and any companion drivers in the enclosure. It is a raw replacement component rather than a complete powered loudspeaker system.

A steel frame provides the mounting structure for installation inside a compatible speaker enclosure. This type of construction is intended to support secure cabinet mounting in professional-audio replacement applications. Specific information for cone material, voice-coil size, magnet weight, sensitivity, and frequency response is not confirmed.

The SB-15 requires an external amplifier and a correctly configured enclosure to operate. It can be used in cabinet restoration work or custom speaker projects when its 15-inch size, 8-ohm impedance, mounting pattern, and depth match the application. For multi-driver cabinets, retain or correctly match the cabinet's crossover and protection components.

Key Features

• 15-Inch Replacement Format: Designed for speaker cabinets using a 15-inch driver.
• 8-Ohm Impedance: Matches systems designed for an 8-ohm replacement speaker.
• Listed 800-Watt Handling: Intended for higher-output professional audio applications.
• Steel Frame: Provides a durable structure for cabinet mounting.
• Passive Speaker Design: Requires an external amplifier and suitable enclosure.
• Replacement-Cabinet Use: Marketed for many professional audio speaker brands.

Design & Installation

The SB-15 uses a steel speaker frame and a 15-inch driver format. Its construction is intended for mounting as a replacement component within a compatible loudspeaker cabinet. Confirmed manufacturer details for the cone, surround, voice coil, magnet, terminals, and mounting-hole pattern are not available.

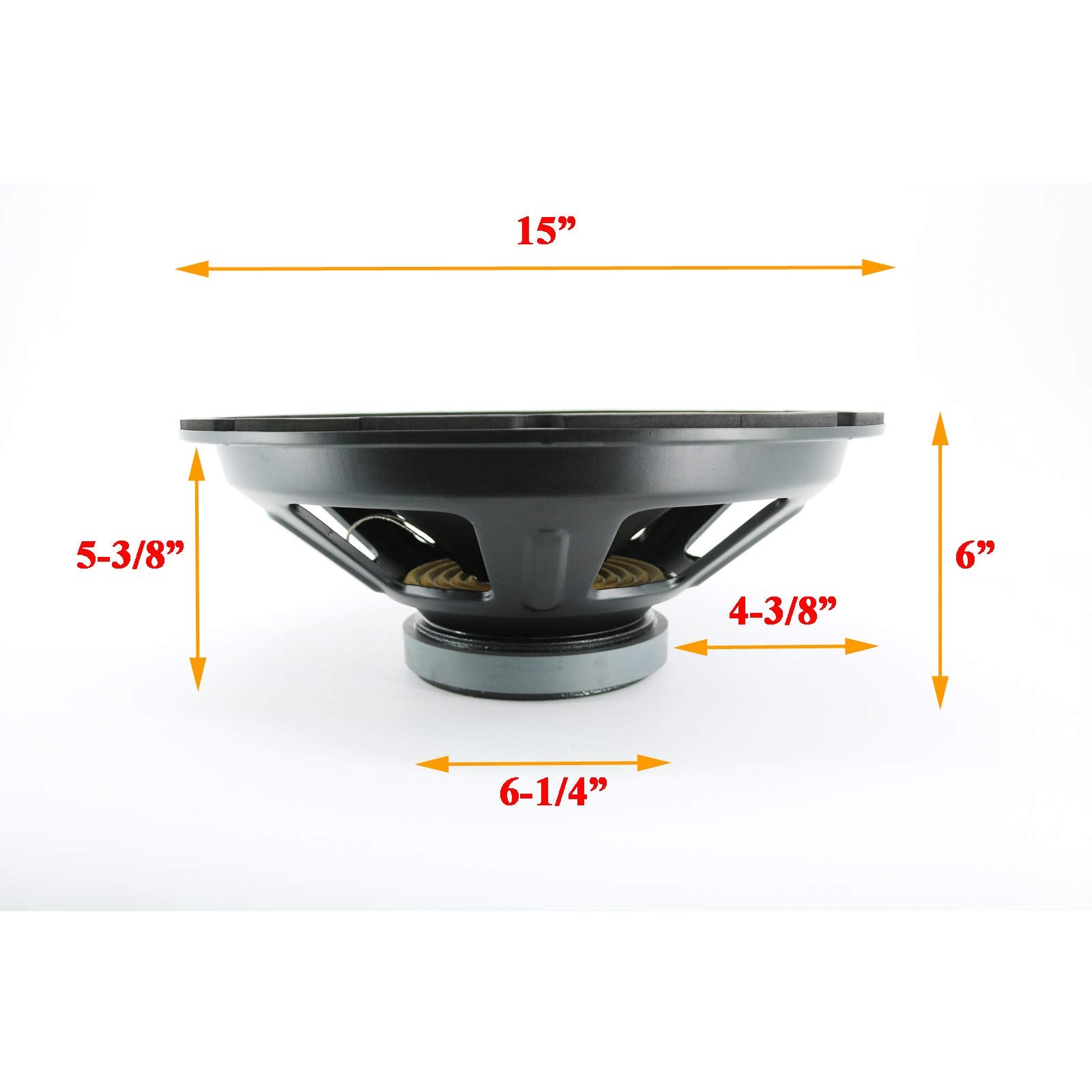

Before installation, compare the original driver's impedance, outside diameter, mounting-hole layout, mounting depth, terminal arrangement, and enclosure clearance with this model. Use an amplifier suitable for an 8-ohm speaker load and observe correct speaker polarity when wiring. The speaker should be used with a compatible enclosure; amplifier, crossover, wiring, and mounting hardware are not confirmed as included.
