EMB Professional EB7500PRO 2-Channel Power Amplifier

The EMB Professional EB7500PRO is a two-channel professional power amplifier for driving passive loudspeakers in PA, DJ, karaoke, meeting, and home sound systems. It provides separate amplifier channels for a conventional stereo setup and supports alternate operating modes for more flexible system layouts. This is a rack-mountable audio component rather than a car stereo or powered speaker.

For users who need to connect a mixer, preamplifier, or other line-level source to passive speakers, the EB7500PRO supplies XLR and 1/4-inch TRS input connections. Its balanced and unbalanced input impedance ratings support integration with common professional audio sources. Channel A and Channel B gain controls allow output level adjustment for each channel.

The amplifier is rated at 900 watts RMS per channel at 4 ohms in stereo operation, with a 1,200-watt RMS rating at 8 ohms in bridged operation. Its published maximum power rating is 7,500 watts. A stated signal-to-noise ratio greater than 104 dB and 20 Hz to 20 kHz frequency response support full-range sound reinforcement applications.

Stereo, parallel, and bridge-mono modes let the EB7500PRO adapt to different speaker layouts. Stereo mode is suited to independently powered left and right speakers, while parallel mode routes one input signal to both channels. Bridge-mono mode combines the amplifier channels for a single mono loudspeaker load rated for bridged operation.

Speaker outputs are available through Neutrik Speakon connections and binding posts, giving installers options for common PA speaker cable terminations. The unit is designed for rack mounting and measures 17.25 inches wide by 16.5 inches deep by 3.5 inches high. It is a practical choice for fixed sound systems or portable racks where passive speakers and professional-style I/O are required.

Key Features

• Two Amplifier Channels: Powers two passive speaker channels in stereo operation.
• Selectable Operating Modes: Supports stereo, parallel, and bridge-mono system configurations.
• 4-Ohm Stereo Rating: Delivers 900 watts RMS per channel at 4 ohms.
• Professional Audio Inputs: Accepts XLR and 1/4-inch TRS source connections.
• Dual Speaker Output Types: Provides Speakon and binding-post speaker connections.
• Rack-Mountable Format: Fits standard equipment-rack based sound systems.

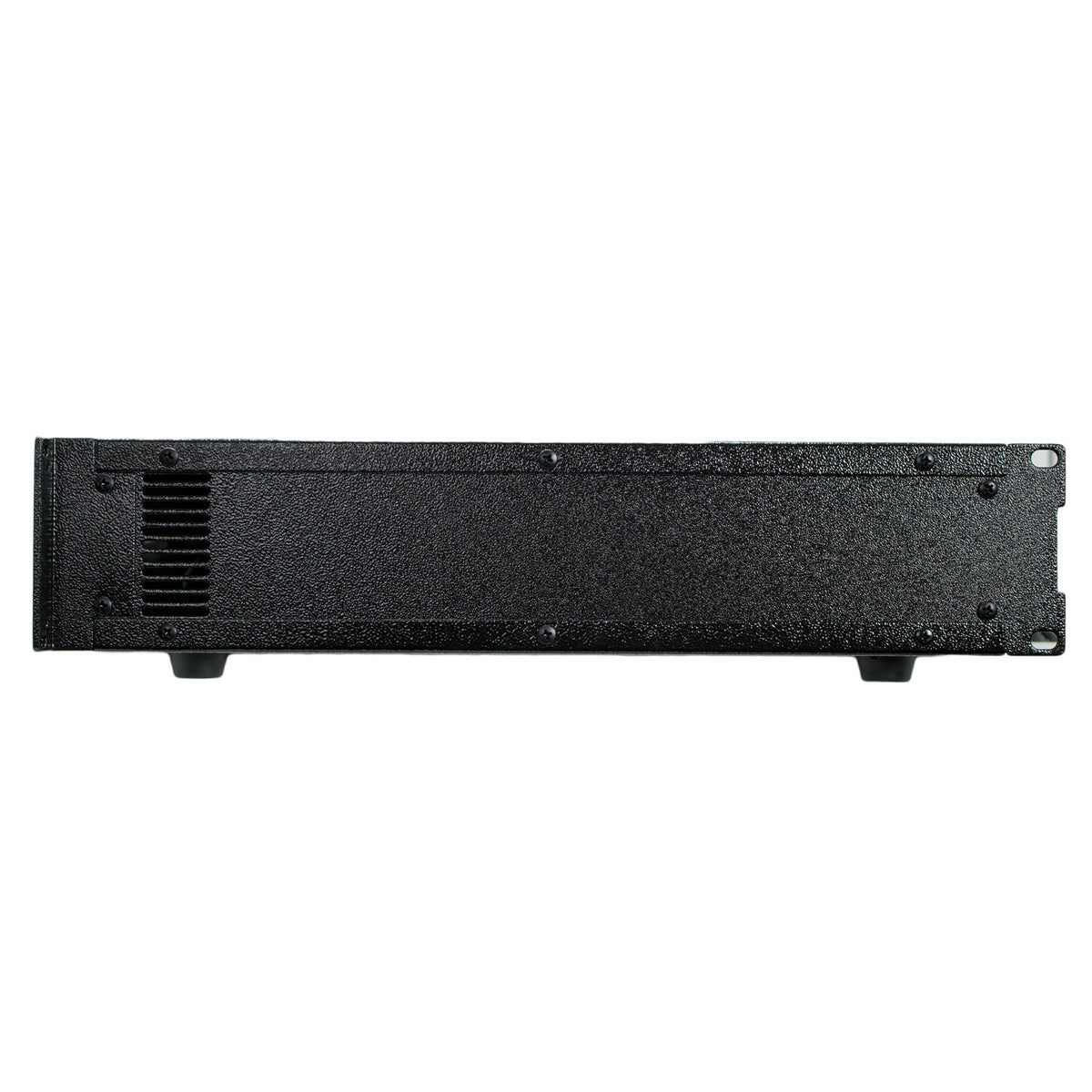

Design & Installation

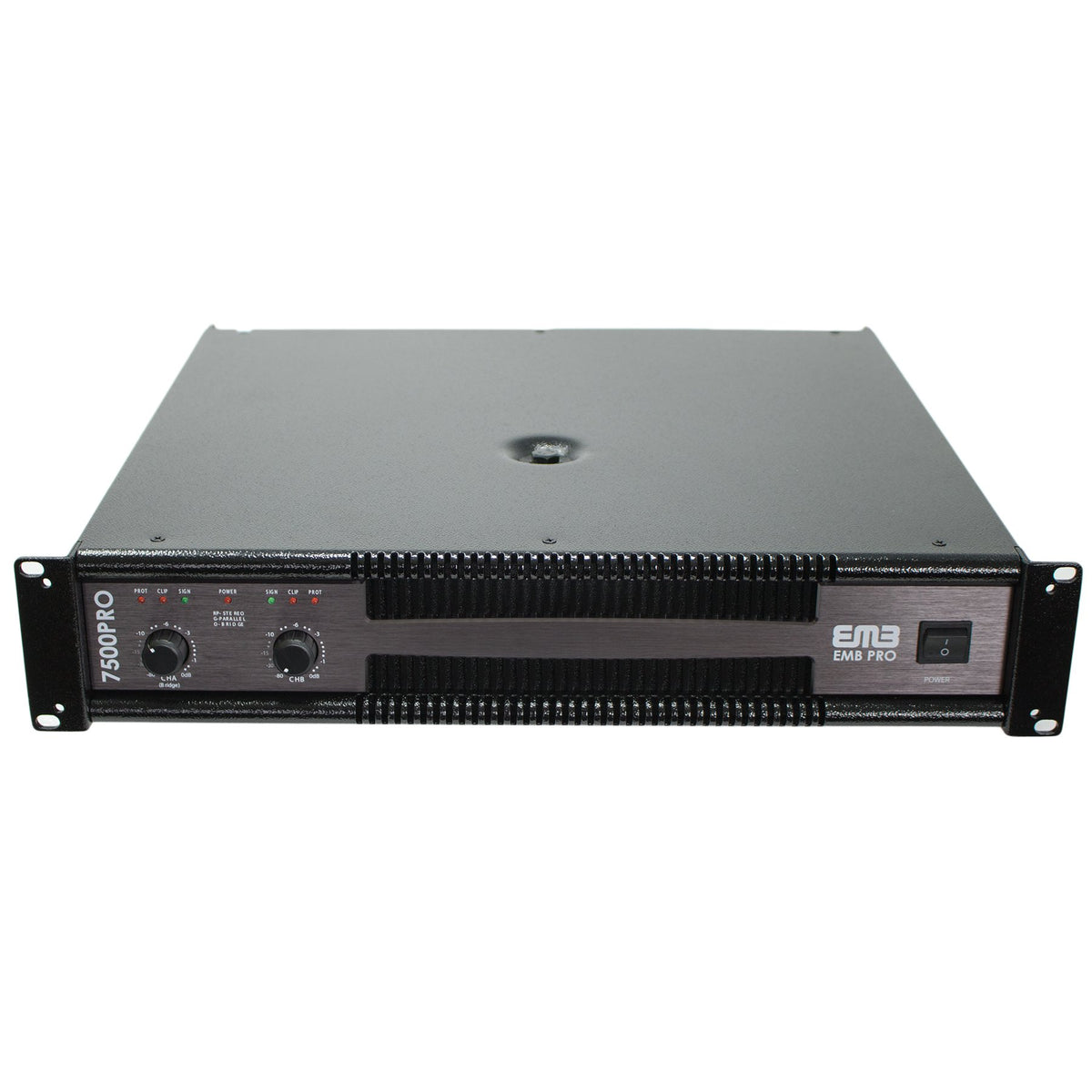

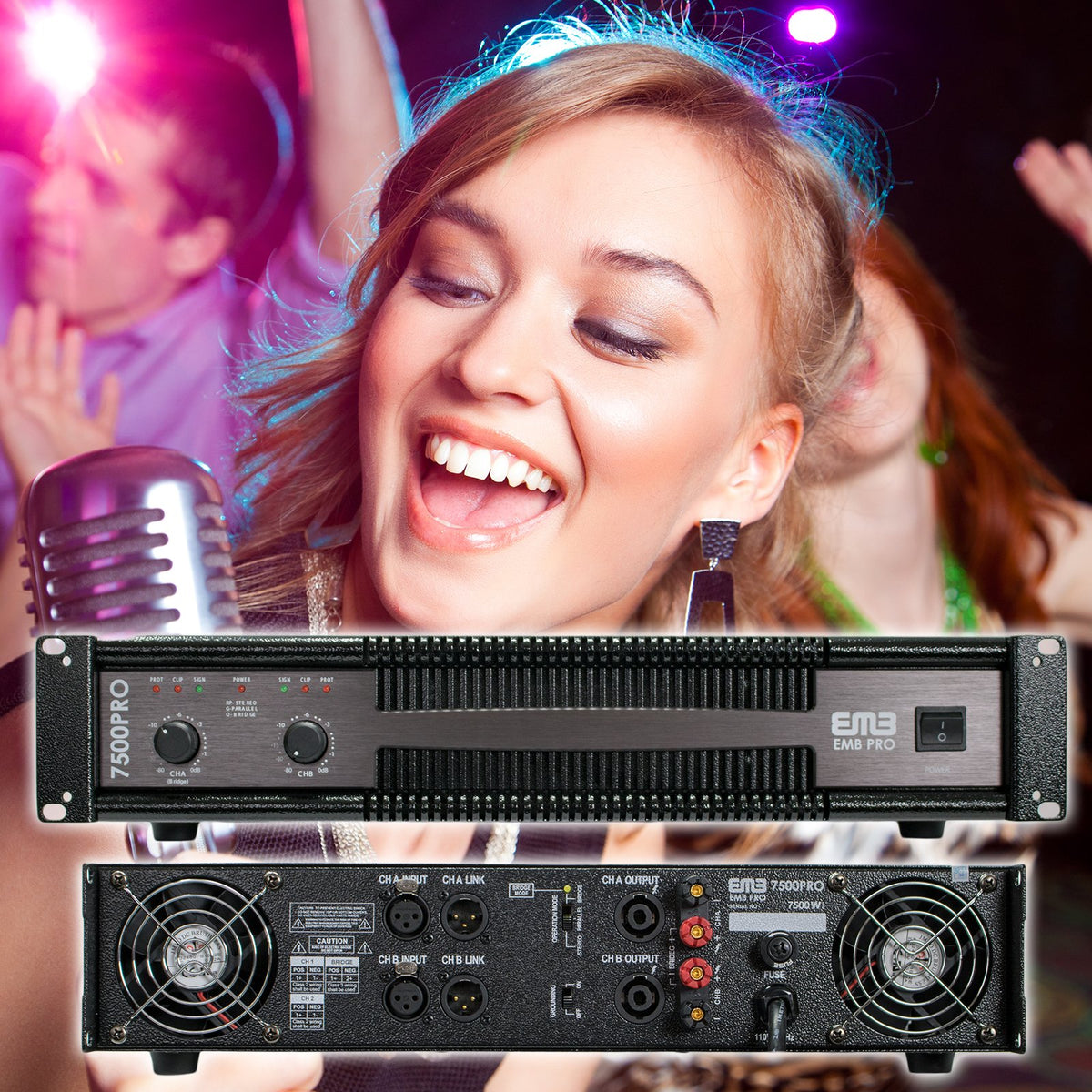

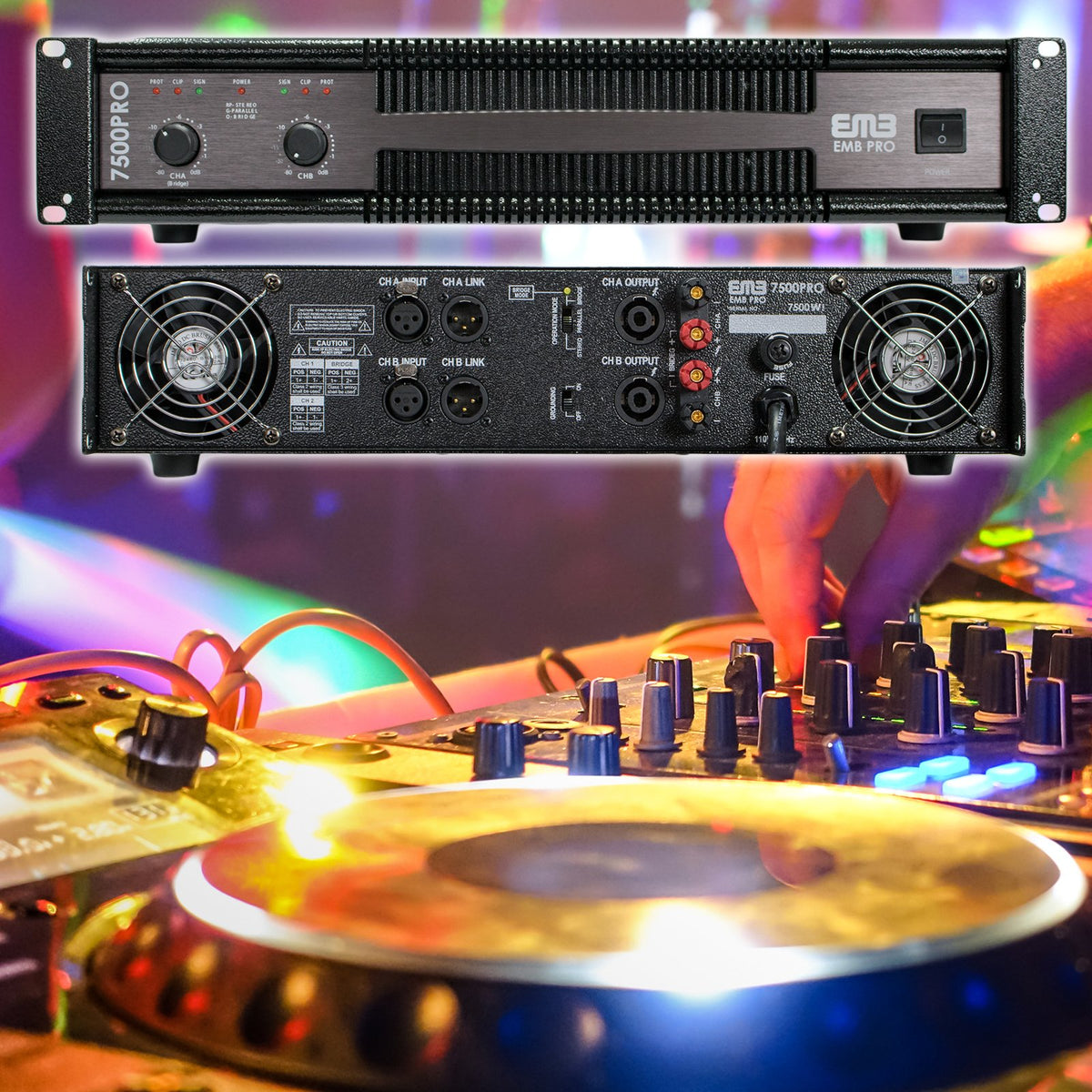

The EB7500PRO uses a rack-mountable amplifier chassis with front-panel power, gain, and status controls. Documented front indicators include power, signal, clip, and protection status, while the rear panel provides input, link, output, mode-selection, grounding, fuse, and cooling provisions. Available product data does not specify the chassis material.

Install the amplifier in a ventilated rack or equipment location with clear airflow around its cooling areas. Connect a mixer or other line-level source through XLR or 1/4-inch TRS cables, then connect passive speakers with correctly terminated Speakon or binding-post speaker cables. Select stereo, parallel, or bridge-mono mode before operation, verify speaker impedance for the chosen configuration, and begin with channel gains turned down before raising levels gradually.
