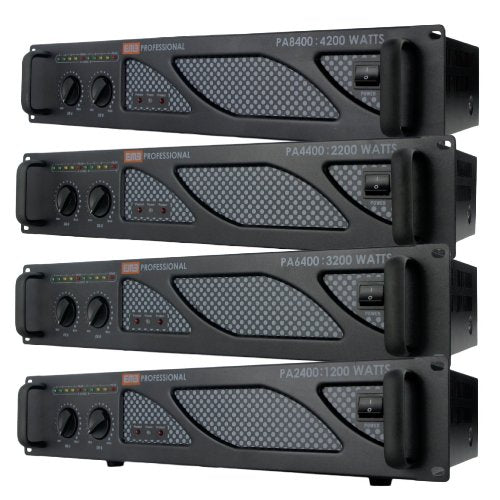

EMB Professional PA8400 Rack-Mount Power Amplifier

The EMB Professional PA8400 is a two-channel rack-mount power amplifier for PA, DJ, karaoke, band, club, and home-entertainment systems. It supplies amplification between a compatible line-level source and passive loudspeakers. The manufacturer-listed maximum peak power rating is 4200 watts.

This amplifier is intended for users building a system around a mixer, processor, or other compatible audio source rather than a self-powered speaker setup. XLR and 1/4-inch (6.35 mm) inputs provide connection options for common pro-audio source equipment. Its two-channel configuration supports stereo operation or separate level adjustment across two speaker feeds.

The PA8400 uses Class A/B output circuitry, a conventional amplifier topology for professional audio applications. Independent Channel 1 and Channel 2 gain controls allow each channel level to be set from the front panel. This makes it practical where left and right speakers, or two system zones, need individual adjustment.

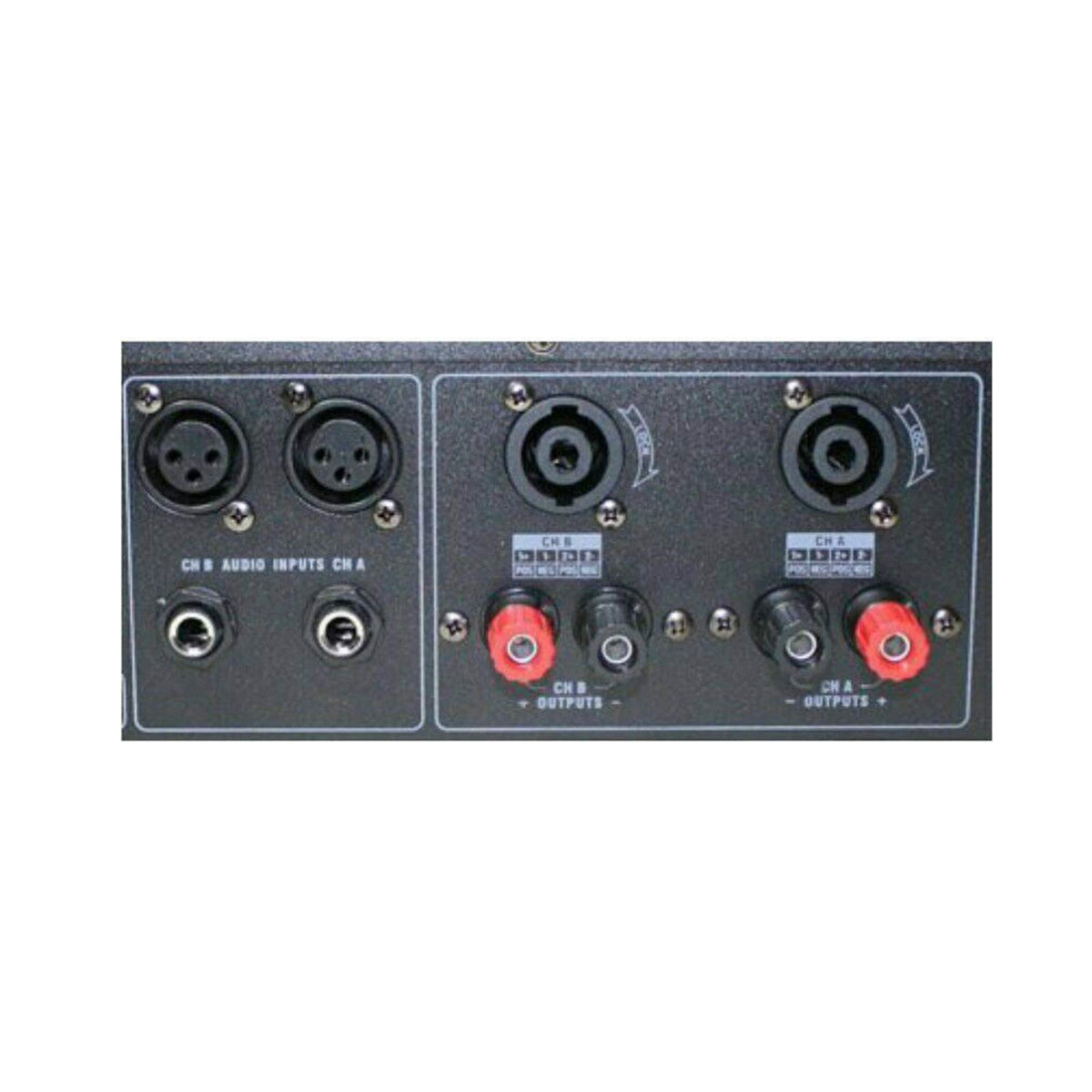

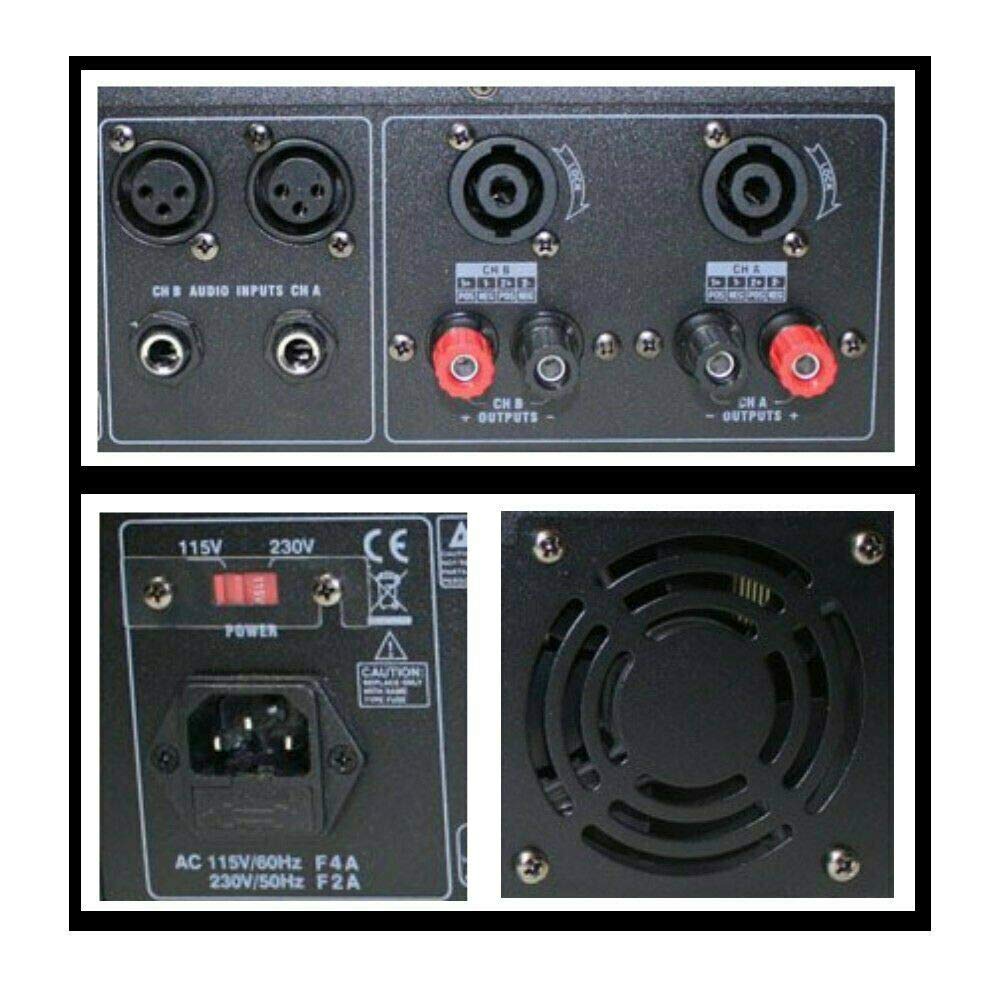

Speaker connections are provided through Speakon and banana binding-post outputs. These formats support integration with compatible passive-speaker cabling and terminals. Front-panel power, signal, clip, and protect indicators provide operating-status information during use.

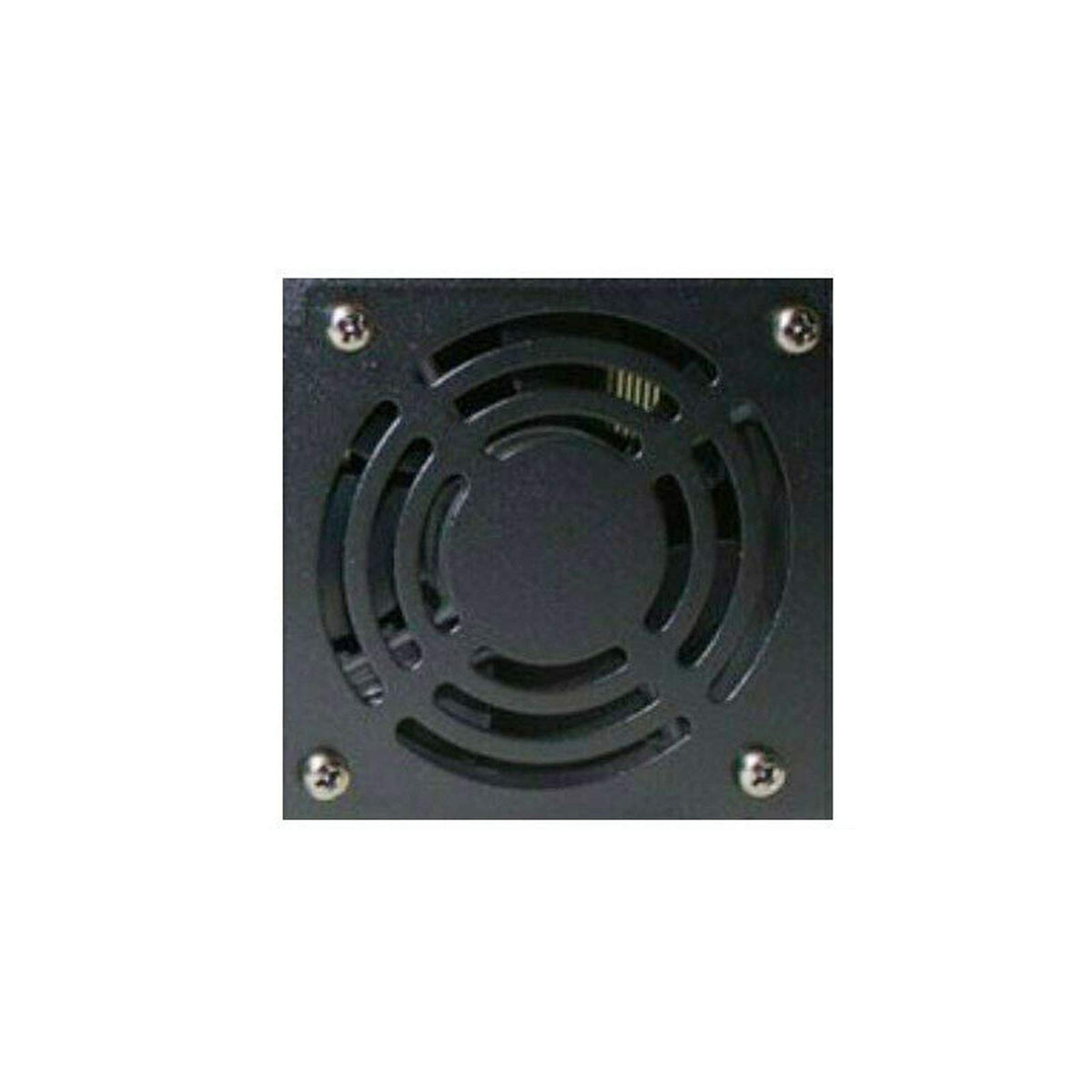

With its rack-mount format, the PA8400 can serve as the amplification stage in a portable or installed sound system. A single cooling fan uses front-to-rear airflow to help manage heat during operation. Pair it with appropriately matched passive speakers, suitable speaker wiring, and a compatible line-level source to complete the system.

Key Features

• 4200W Maximum Peak Rating: Manufacturer-listed maximum peak power specification for the amplifier.
• Two-Channel Operation: Supports stereo systems or independently level-controlled speaker feeds.
• Class A/B Circuitry: Uses a traditional professional power-amplifier output design.
• Flexible Audio Inputs: XLR and 1/4-inch inputs connect compatible line-level equipment.
• Dual Speaker Output Types: Speakon and banana binding-post terminals support compatible passive-speaker wiring.
• Front-Panel Monitoring: Power, signal, clip, and protect indicators assist with system monitoring.

Design & Installation

The PA8400 is built in a rack-mount chassis with front-panel controls for power and individual channel gain adjustment. Its listed unit dimensions are 18.9 x 3.54 x 11.42 inches, and marketplace listings identify it as a 2U rack-mount amplifier. The front panel also includes status indicators for power, signal, clip, and protect conditions.

Install the amplifier in a ventilated rack or equipment location without blocking the front-to-rear cooling path. Connect a compatible mixer, processor, or other line-level source to the XLR or 1/4-inch inputs, then connect passive speakers through the appropriate Speakon or binding-post outputs. Confirm speaker impedance, wiring, and continuous-power compatibility before operation, since detailed RMS-output and load specifications were not confirmed in the available product information.
