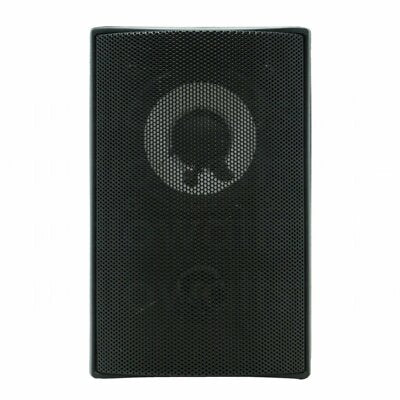

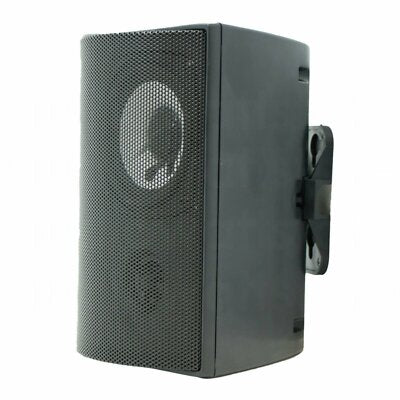

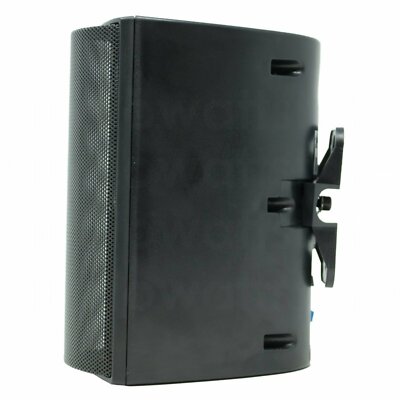

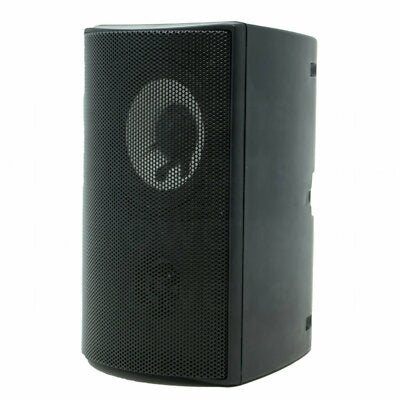

Emb ECW10 100W Full Range Indoor / Outdoor Waterproof Speaker - Black (Single)

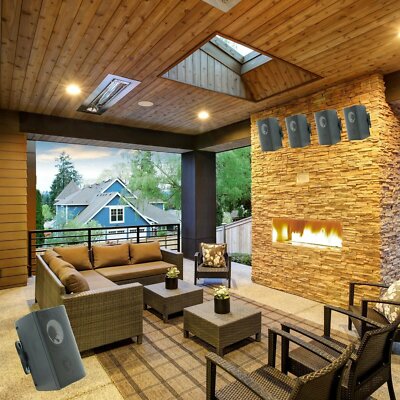

The EMB Professional ECW10-BK is a compact wired 2-way speaker built for indoor and outdoor audio installations where space is limited. Its black finish and waterproof designation make it suited to patio, poolside, environmental, marine, and monitor-style applications. This single-speaker package is useful for replacing one existing speaker or expanding a compatible wired system.

A 3-inch woofer and 1-inch tweeter divide the audio range between low/midrange and high-frequency reproduction. The specified 75 Hz to 20 kHz frequency response supports clear playback for background music, television audio, paging, and general-purpose listening. With 91 dB sensitivity, the ECW10 is designed to produce useful output from a compatible amplifier or receiver.

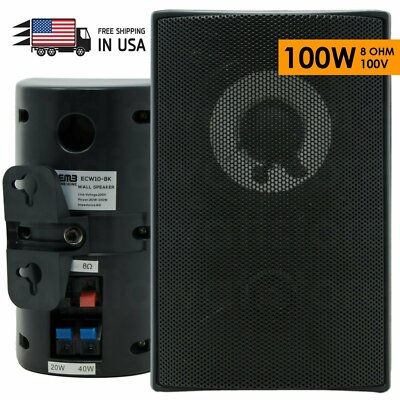

The ECW10-BK uses an 8-ohm load, making it appropriate for amplifiers and receivers designed to drive conventional passive speakers. Its 100-watt peak power handling gives installers a reference point when matching the speaker with system amplification. Because it is wired and passive, it does not include built-in Bluetooth or an internal amplifier.

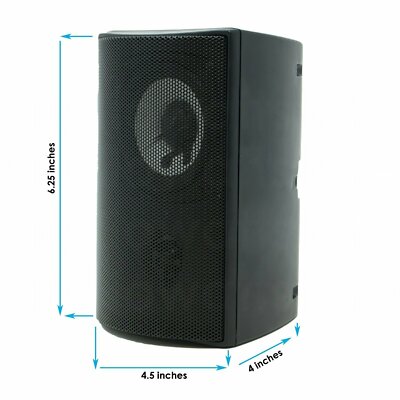

This speaker is designed around a compact rectangular enclosure measuring 4.5 inches wide, 6.25 inches high, and 4 inches deep. At approximately 2 pounds per speaker, it can fit locations where a larger outdoor speaker would be impractical. The small enclosure is intended for surface-placement situations requiring focused, localized sound coverage.

The ECW10-BK fits naturally into a multi-speaker outdoor or distributed-audio setup, as well as a single-speaker replacement application. Use it with an amplifier or receiver that supports an 8-ohm passive speaker connection. For wider stereo coverage, pair it with a matching compatible speaker and plan wiring for the amplifier's supported load.

Key Features

• 3-Inch Woofer: Handles low and midrange content in a compact enclosure.
• 1-Inch Tweeter: Reproduces high-frequency detail for balanced full-range playback.
• 2-Way Design: Separates woofer and tweeter duties for organized sound reproduction.
• 8-Ohm Impedance: Works with compatible conventional passive-speaker amplifier outputs.
• Waterproof Designation: Supports specified indoor and outdoor installation applications.
• Single-Speaker Package: Useful for replacement, expansion, or custom system layouts.

Design & Installation

The ECW10-BK uses a compact rectangular speaker format with a black exterior for visually discreet placement. Its specified waterproof designation supports use in indoor/outdoor and environmental applications. The enclosure measures 4.5 inches wide by 6.25 inches high by 4 inches deep and weighs approximately 2 pounds.

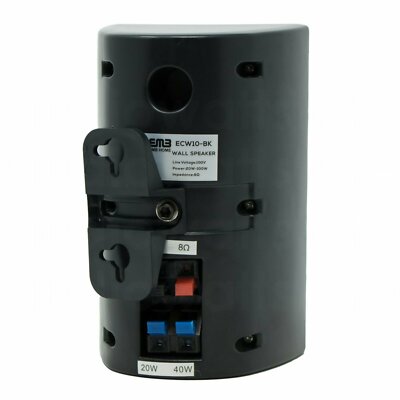

Connect the ECW10-BK to a compatible amplified speaker output using appropriate speaker wire and observe correct polarity. Verify that the amplifier supports an 8-ohm speaker load before installation, especially when connecting multiple speakers. Choose a mounting location that provides the desired coverage while allowing practical cable routing and secure attachment.
