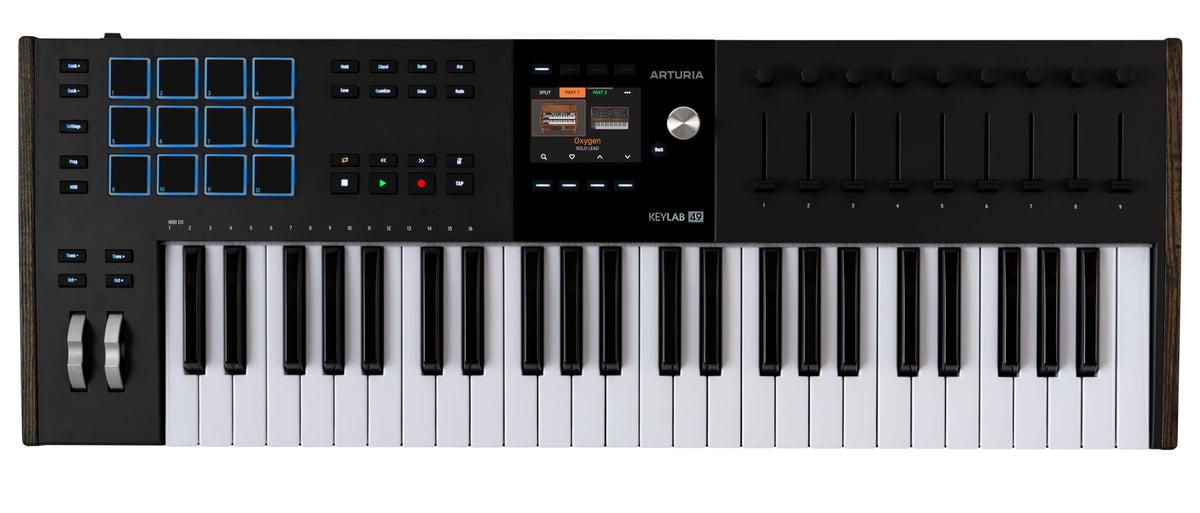

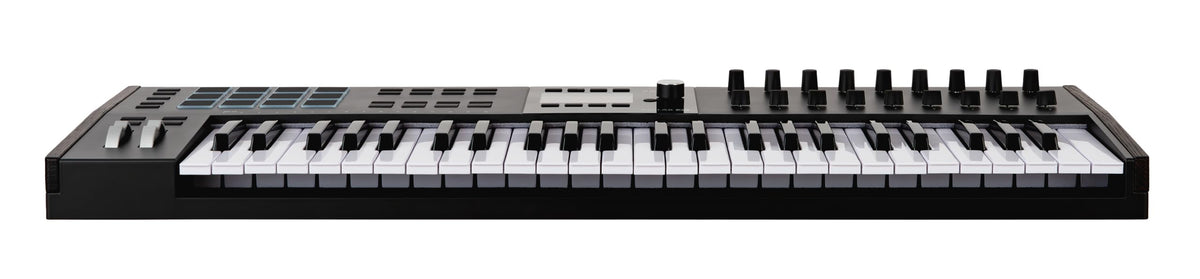

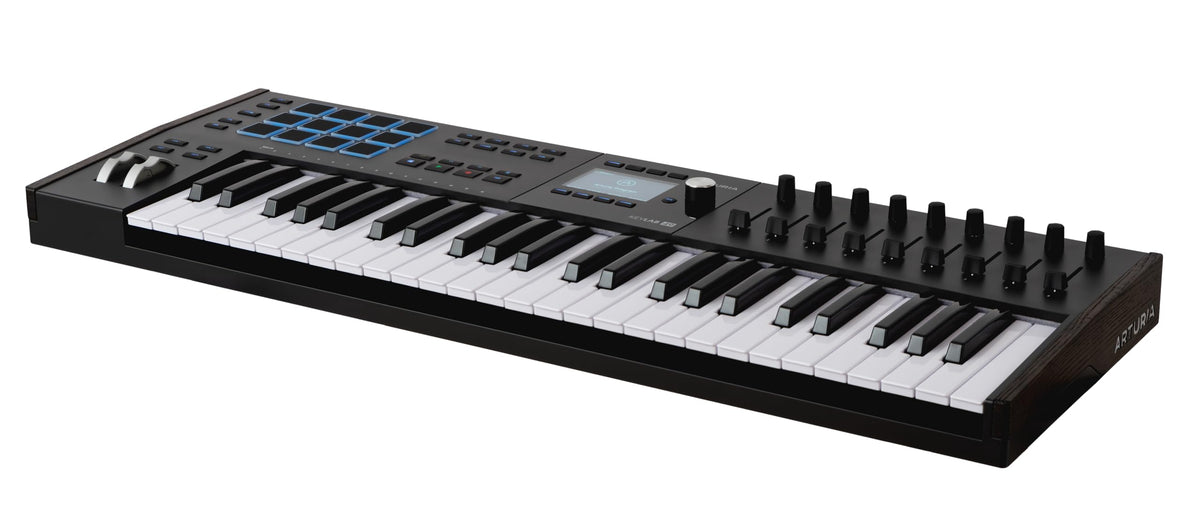

Arturia Keylab mk3 USB Midi Keyboard Controller, 49 Key - Black
- 49 semi-weighted keys with channel aftertouch
- 12 touch- and pressure-sensitive RGB pads
- Nine touch-sensitive encoders and faders
- 3.5-inch full-color contextual display
- USB-C and five-pin MIDI connectivity
Product Info
| Brand | ARTURIA |
|---|---|
| Model / SKU | KEYLAB 49 MK3 BLACK |
| UPC | 3760033532103 |
| Availability | In stock and ready to quote |
The Arturia KeyLab 49 mk3 is a 49-key USB MIDI controller built for hands-on music production, composition, and performance. It provides a central physical interface for controlling compatible software instruments, DAWs, and external MIDI hardware. Its compact 49-note format gives players useful range without taking up the space of a larger controller.
This controller is suited to producers, keyboardists, composers, and live performers who want to spend less time navigating on-screen controls. The semi-weighted, synth-action keybed supports velocity, release velocity, and channel aftertouch for more expressive note performance. Twelve touch- and pressure-sensitive RGB pads, faders, encoders, transport controls, and pitch/modulation wheels place common creative tasks within reach.
KeyLab 49 mk3 does not generate audio on its own; it sends MIDI data to a connected computer, software instrument, or MIDI-capable hardware device. Its performance feel is designed around responsive keyboard expression and direct parameter control rather than a built-in sound engine. Channel aftertouch, velocity-sensitive keys, and pressure-sensitive pads help translate playing dynamics into compatible instruments and effects.
A 3.5-inch full-color display with eight contextual buttons provides visual feedback while navigating sounds, settings, and mapped controls. Nine touch-sensitive 360-degree encoders and nine touch-sensitive 50 mm faders support detailed adjustment of software or hardware parameters. Built-in Chord, Scale, Arpeggiator, and Hold functions provide practical tools for sketching ideas and performing parts.
USB-C connectivity supports computer-based setups and powers the controller from a compatible USB connection. Five-pin MIDI input and output extend the KeyLab 49 mk3 into hardware-synth and drum-machine systems, while pedal inputs add further control options. It can serve as a focused desktop controller today and remain useful as a studio expands with external MIDI instruments, DAW control, and Arturia software.
Key Features
- 49-Key Semi-Weighted Keybed: Synth-action keys with velocity, release velocity, and channel aftertouch support expressive playing.
- 3.5-Inch Color Display: Shows useful control and navigation feedback with eight contextual buttons.
- 12 RGB Performance Pads: Touch- and pressure-sensitive pads can trigger notes, drums, samples, and clips.
- Hands-On Mixing Controls: Nine touch-sensitive encoders and nine 50 mm faders enable direct parameter adjustment.
- Creative Performance Modes: Chord, Scale, Arpeggiator, and Hold functions support writing and live play.
- USB-C And MIDI Connectivity: Connects to computers and integrates with compatible MIDI hardware.
Design & Installation
The black KeyLab 49 mk3 combines high-density plastic construction, ruggedized knobs, and real-wood side panelling. Its redesigned semi-weighted keybed, touch-sensitive controls, full-color display, and Kensington security slot are arranged for studio or stage use. The controller measures 30.98 x 2.83 x 11.02 inches and weighs 13.45 lb.
Connect the included USB-C-to-USB-A cable to a compatible computer for USB MIDI communication and bus power, then select the controller in compatible software. Use the five-pin MIDI ports for external MIDI instruments, and connect compatible pedals as needed for sustain, expression, modulation, footswitch, or auxiliary control. Pedals may require calibration through the KeyLab settings menu, especially continuous pedal types.
| Brand | Arturia |
|---|---|
| Model | KeyLab 49 mk3 |
| Finish | Black |
| UPC | 3760033532103 |
| Product Type | Universal MIDI controller keyboard |
| Number of Keys | 49 |
| Keybed Type | Semi-weighted, synth-action |
| Key Velocity Sensitivity | Yes |
| Release Velocity Sensitivity | Yes |
| Aftertouch | Channel aftertouch |
| Performance Pads | 12 |
| Pad Type | Touch- and pressure-sensitive RGB pads |
| Clickable Encoder | 1 |
| Rotary Encoders | 9 |
| Encoder Type | Touch-sensitive, 360-degree rotary |
| Faders | 9 |
| Fader Travel | 50 mm |
| Fader Type | Touch-sensitive |
| Transport Switches | 8 |
| Command Switches | 4 |
| Performance Wheels | Pitch bend and modulation wheels |
| Display Type | Full-color display |
| Display Size | 3.5 in |
| Display Resolution | 320 x 480 pixels |
| Contextual Display Buttons | 8 |
| Arpeggiator | Multi-mode |
| Chord Mode | Chord mode with smart voicing |
| Scale Mode | Yes |
| Hold Function | Yes |
| User Presets | Up to 6 |
| Computer Connection | USB-C |
| USB Power | USB-C bus-powered |
| MIDI Input | 5-pin DIN |
| MIDI Output | 5-pin DIN |
| Pedal Support | Sustain, expression, footswitch, and auxiliary pedal calibration |
| DAW Integration | Ableton Live, Logic Pro, Cubase, FL Studio, Bitwig Studio, and MainStage |
| Control Protocols | MCU/HUI compatible |
| Native Instruments Integration | NKS-compatible |
| Included Software | Analog Lab Pro |
| Analog Lab Pro Library | 2,000+ sounds |
| Included DAW Software | Ableton Live Lite |
| Included Instruments | Mini V, Augmented Strings, Piano V, and Rev PLATE-140 |
| Loopcloud Offer | 2-month subscription |
| Melodics Offer | Subscription with 40 lessons |
| Supported Plug-In Formats | Standalone, VST, AAX, and Audio Unit |
| Windows Requirement | Windows 10 or later, 64-bit |
| macOS Requirement | macOS 11 or later |
| Required RAM | 4 GB |
| Required Storage | 3 GB free disk space |
| Required Graphics Support | OpenGL 2.0-compatible GPU |
| Windows ARM Support | Not supported for listed Arturia software requirements |
| Width | 787 mm / 30.98 in |
| Height | 72 mm / 2.83 in |
| Depth | 280 mm / 11.02 in |
| Weight | 6.1 kg / 13.45 lb |
| Construction | High-density plastic with ruggedized knobs and real-wood panelling |
| Security | Kensington security slot |
| Included Cable | USB-C to USB-A cable |
| Box Contents | KeyLab mk3 unit, USB-C to USB-A cable, registration card, and QuickStart |
| Optional DC Power Specification | 12V DC, 1A |
| Optional DC Connector | 2.1 mm inner / 5.5 mm outer, 10 mm length, center-positive |
Does the KeyLab 49 mk3 make sound by itself?
No. It is a MIDI controller and requires compatible music software or an external MIDI sound source to produce audio.
What computers and software are supported?
Arturia lists support for macOS 11 or later and 64-bit Windows 10 or later for its included software. The controller integrates with Analog Lab, Ableton Live, Logic Pro, Cubase, FL Studio, Bitwig Studio, MainStage, MCU/HUI workflows, and NKS-compatible setups.
Can I use it with hardware synthesizers and drum machines?
Yes. The KeyLab 49 mk3 has five-pin DIN MIDI input and output for compatible external MIDI equipment. USB-C can power the controller while MIDI DIN connects it to hardware instruments.
Is a USB cable included?
Yes. The box includes a USB-C-to-USB-A cable, registration card, and QuickStart document along with the KeyLab mk3 unit.
Can I connect sustain or expression pedals?
Yes. The controller supports pedal control and offers calibration options for sustain, expression, and auxiliary pedal inputs. Compatible continuous pedals may need range and polarity calibration from the controller settings.
Does it need a separate power supply?
No separate supply is required for typical computer use because the controller is USB-C bus-powered. Arturia also lists compatibility with an optional 12V DC, 1A, center-positive supply with a 2.1 mm inner and 5.5 mm outer barrel connection.
