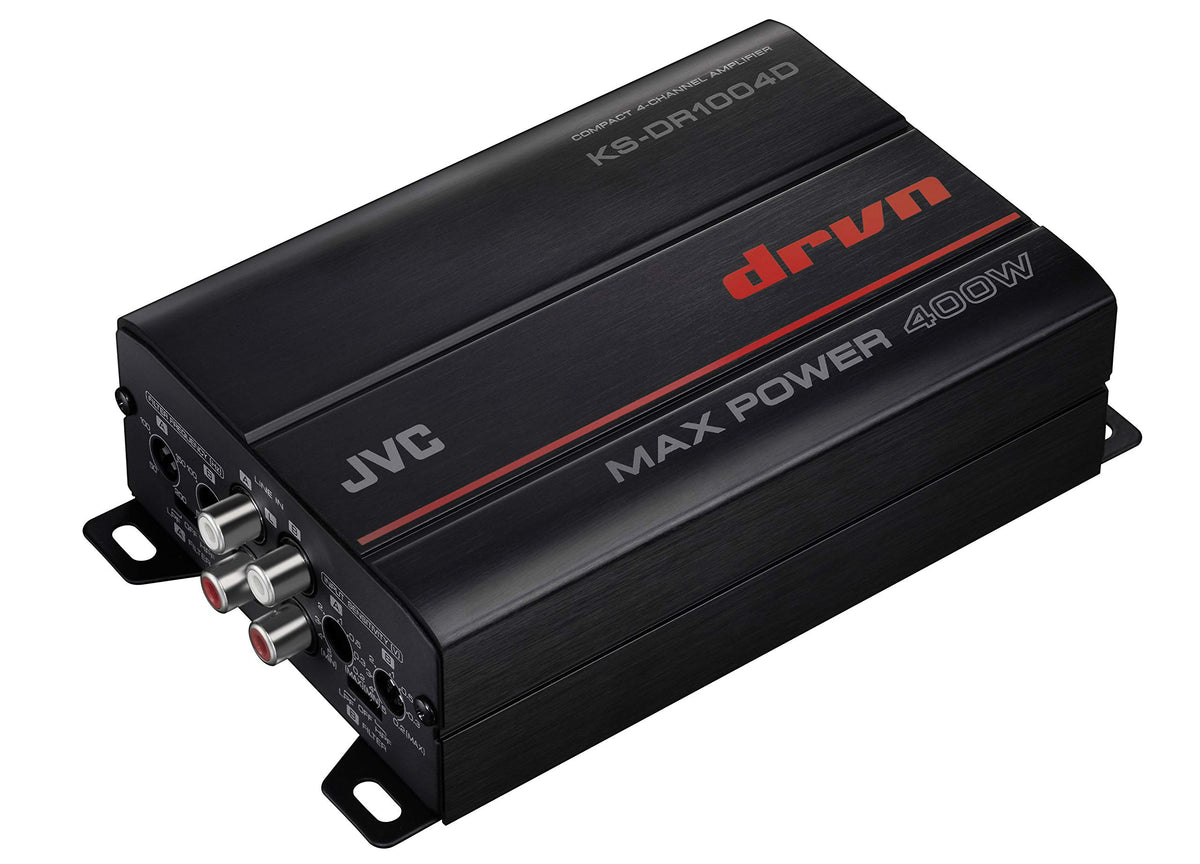

JVC KS-DR1004D Compact 4-Channel Class D Amplifier

The JVC KS-DR1004D is a compact four-channel Class D amplifier designed to add external power where space is limited. It is suited to compact cars, motorcycles, UTVs, and marine or motorsports audio installations. With four amplified channels, it can power a full speaker system or be configured for bridged two-channel operation.

At 4 ohms, the KS-DR1004D delivers 45 watts RMS to each of four channels across 20 Hz to 20 kHz. This makes it a practical match for compatible full-range speakers that benefit from cleaner, dedicated amplifier power. It also supports 90 watts RMS x 2 when bridged into 4-ohm loads.

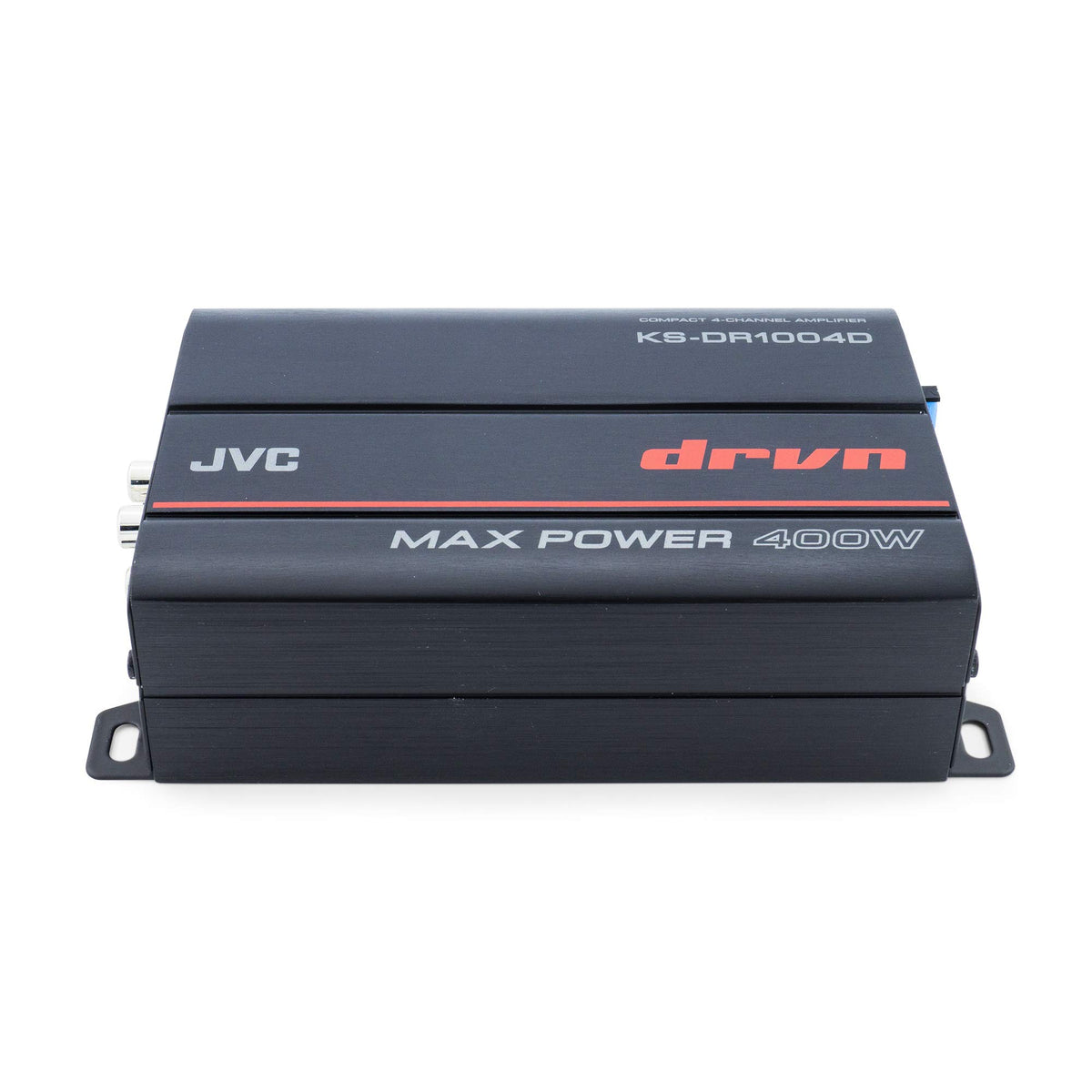

The amplifier uses Class D design in a small 145 x 45 x 99 mm chassis. Its compact dimensions help when mounting under a seat, in a small storage area, or in other constrained locations. JVC lists the unit at 0.7 kg, supporting installation where added size and weight are considerations.

JVC applies conformal coating to the main circuit boards for added protection against moisture and condensation exposure. Separate pre-amplifier and power-amplifier circuit boards are used to reduce radiation noise. A large low-pass-filter coil and adjustable crossover controls support a more tailored system setup.

The KS-DR1004D accepts either RCA-level or speaker-level input, making it usable with aftermarket or factory-installed head units. Its signal-sensing turn-on function can activate the amplifier from a high-level input signal, so a separate remote-turn-on connection is not required in that configuration. Use the variable high-pass and low-pass filters to configure speaker channels, a bridged speaker pair, or a two-channel-plus-subwoofer arrangement.

Key Features

• Four-Channel Class D Design: Provides compact external amplification for four speakers or bridged two-channel systems.
• 45W RMS x 4 Output: Delivers rated power at 4 ohms for compatible full-range speakers.
• Bridgeable Channels: Supports 90W RMS x 2 into 4-ohm loads for higher-power channel pairs.

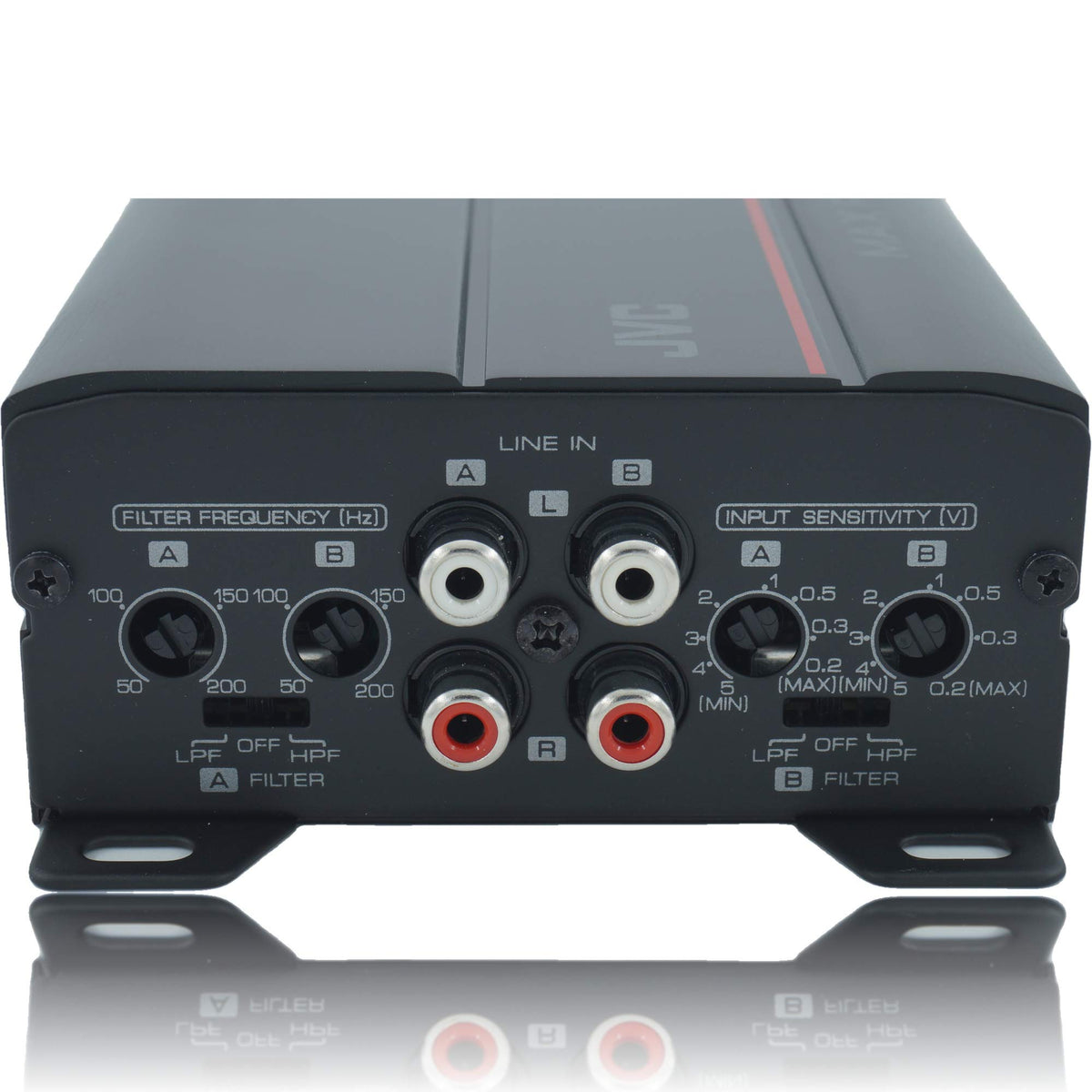

• Variable HPF and LPF: Allows 50 to 200 Hz crossover adjustment for each amplifier section.
• RCA and Speaker-Level Inputs: Works with aftermarket RCA outputs or compatible factory speaker outputs.
• Conformal-Coated PCB: Adds circuit-board protection against moisture and condensation exposure.

Design & Installation

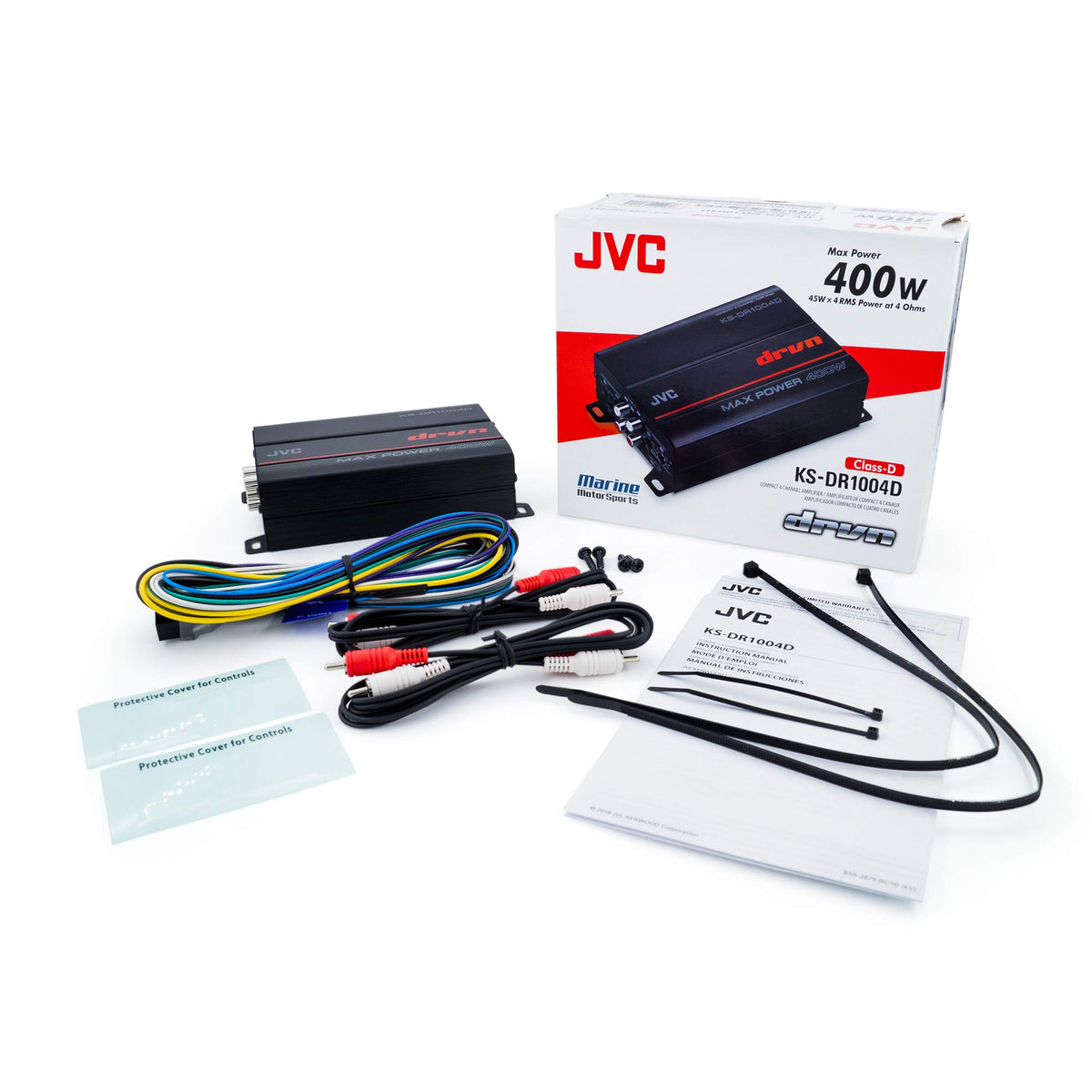

The KS-DR1004D has a compact chassis measuring 145 x 45 x 99 mm and weighs 0.7 kg. Its main circuit boards use conformal coating, while separate pre-amplifier and power-amplifier board construction is intended to reduce radiation noise. Two protective covers are included for the control panel after setup.

Install the amplifier on a secure location with airflow for heat dissipation, away from direct water splash, excessive heat, dust, and direct sunlight. It requires a 12V negative-ground electrical system, proper chassis grounding, and a 15A fuse. For speaker-level installation, the factory head unit output may be up to 50W and the signal-sensing turn-on function can eliminate the need for a power-control wire.
