HERTZ MPBX300S2-1

The Hertz MPBX300S2-1 is a loaded 12-inch passive subwoofer enclosure designed for car audio systems where bass performance is wanted without giving up much cargo or cabin space. Its ultra-shallow sealed-box format places a Hertz MPS 300 S2 2-ohm subwoofer in a purpose-built enclosure. This makes it a practical option for installers and enthusiasts who prefer a ready-to-connect low-frequency upgrade rather than building a custom enclosure.

With 500 watts continuous power handling and 1,000 watts peak power handling, the MPBX300S2-1 is suited to an amplifier that is stable at a 2-ohm speaker load. The sealed enclosure design emphasizes controlled bass response and integrates easily with a properly filtered full-range speaker system. Its specified 25 to 400 Hz frequency response covers the low-frequency range typically assigned to a vehicle subwoofer.

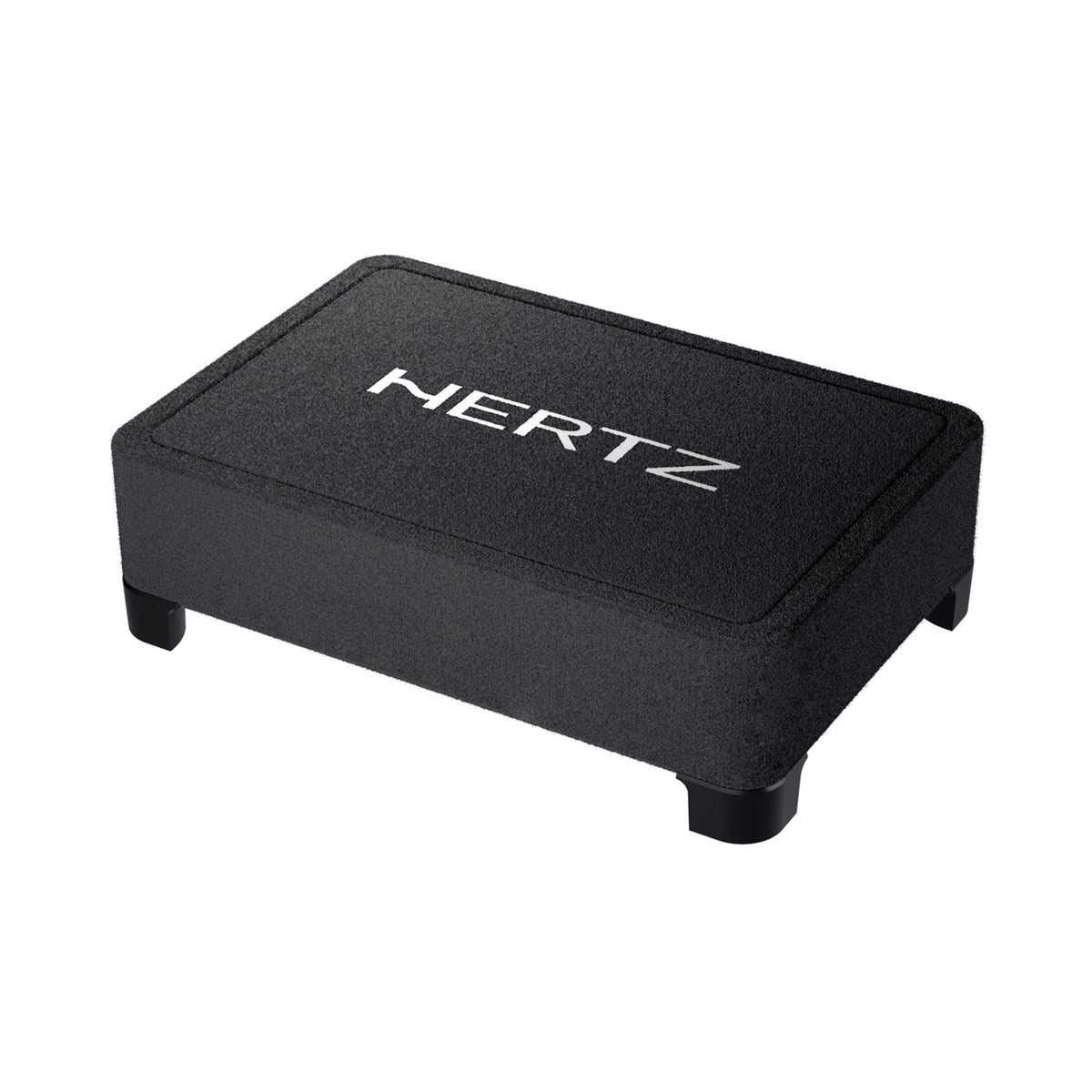

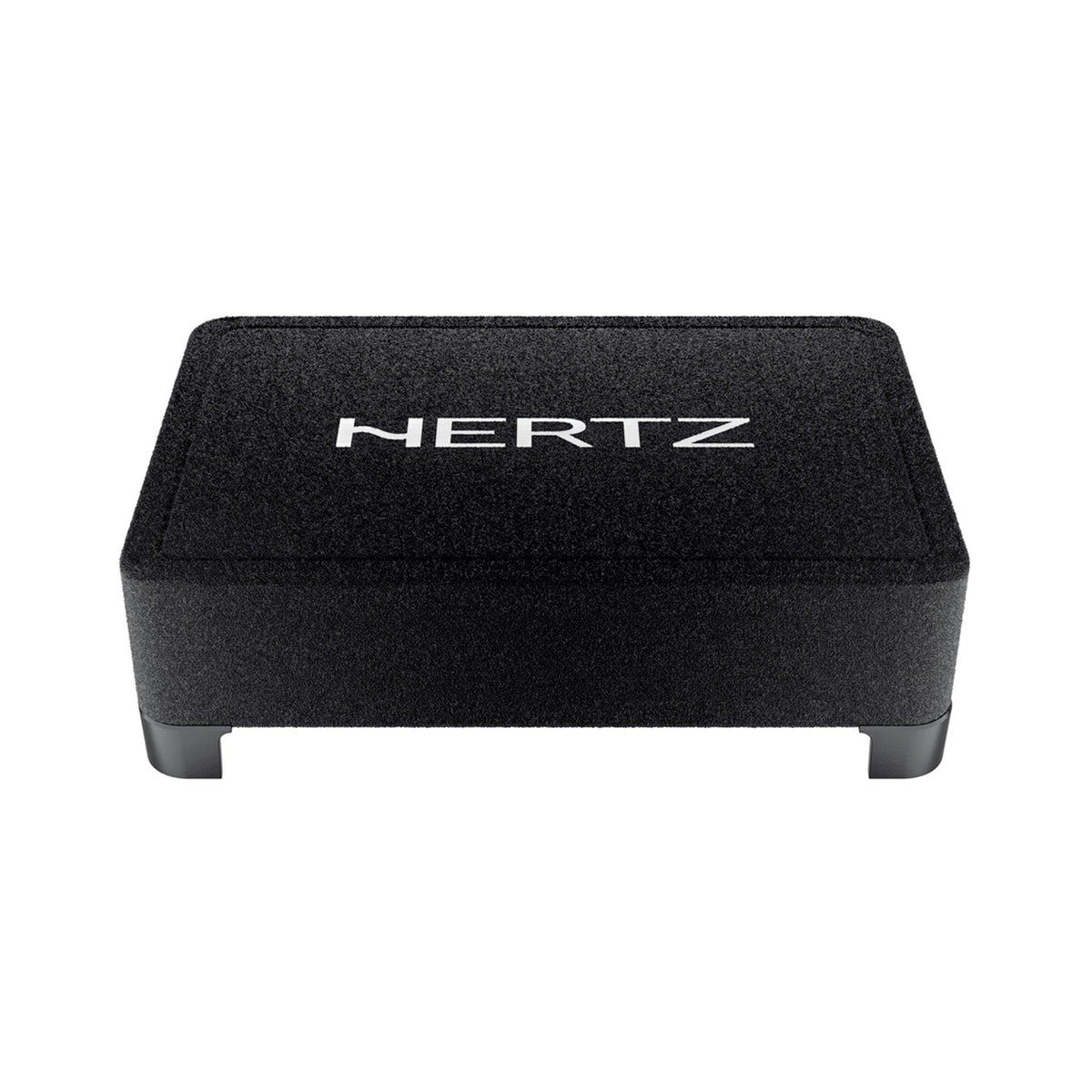

The enclosure uses Hertz's 2S², or 2 Sides/2 Sounds, installation concept. It can be positioned up-firing for a more direct, defined bass character, or down-firing with the supplied leveling feet to extend low-frequency response. This flexibility helps adapt the enclosure to available space and the acoustic behavior of different vehicles.

Hertz builds the enclosure with 15 mm wood panels, internal panel-to-panel bracing, solid corners, and sound-absorbing material. These construction details are intended to reduce unwanted enclosure resonance while adding rigidity to the shallow design. Rounded enclosure corners also make placement in a trunk, hatch, or cargo area more manageable.

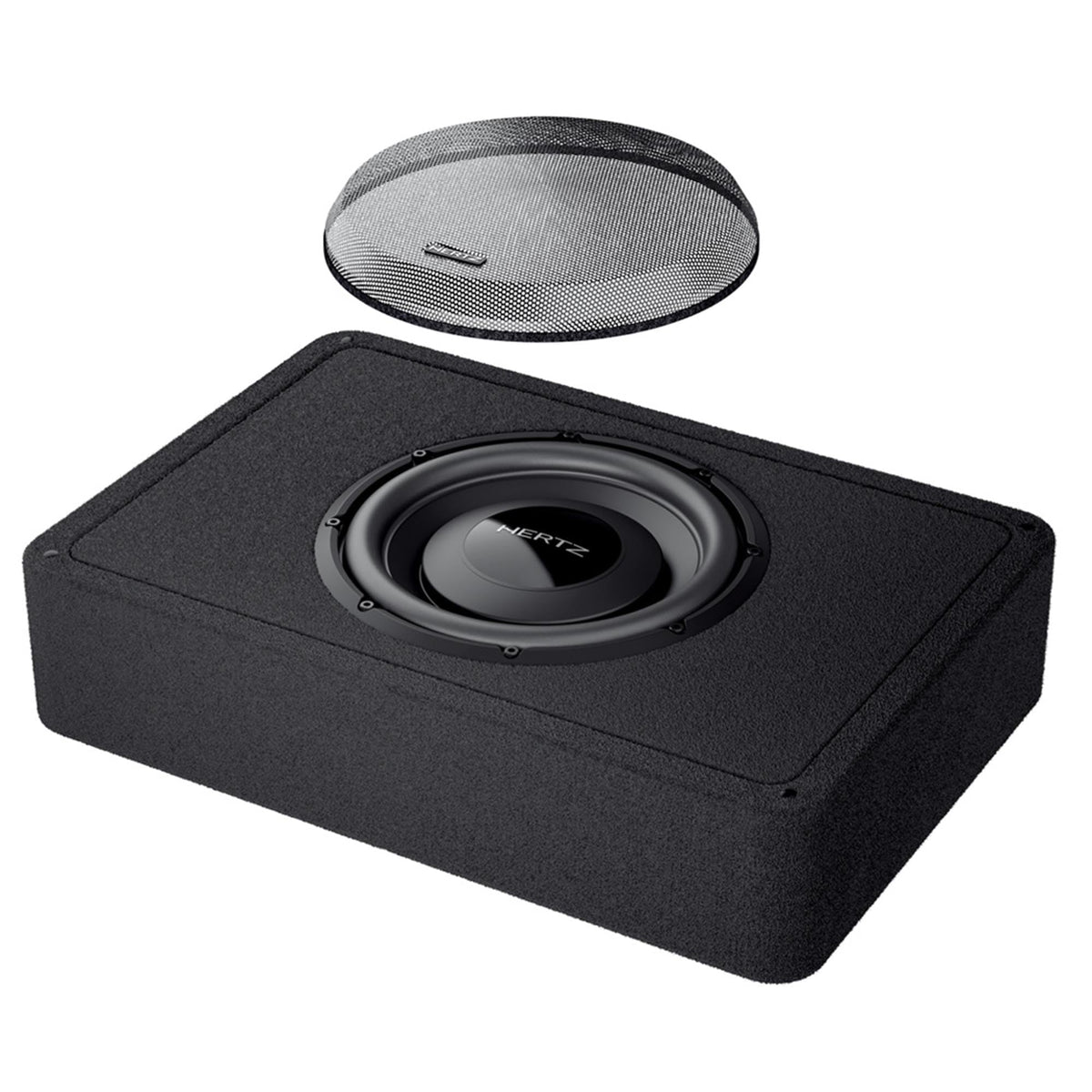

The MPBX300S2-1 uses the SSP Sub Smart Plug connection system, combining a removable Plug-and-Play terminal block with conventional push terminals. This gives installers a quick-disconnect option while retaining a traditional hard-wired connection method. A protective screw-less mesh grille is included, making the enclosure suitable for installations where the woofer may be exposed to cargo or everyday use.

Key Features

• Loaded 12-Inch Subwoofer: Includes a Hertz MPS 300 S2 shallow subwoofer in a matched enclosure.
• 500W Continuous Handling: Supports substantial amplifier power for a compact sealed subwoofer system.
• 2-Ohm Nominal Load: Designed for use with an amplifier rated to drive 2 ohms.
• 2S² Placement Design: Supports up-firing or down-firing installation to tailor bass presentation.
• SSP Connection System: Provides removable Plug-and-Play and traditional push-terminal connection options.
• Rigid Sealed Enclosure: Uses 15 mm wood, internal bracing, and damping material.

Design & Installation

The MPBX300S2-1 is a sealed, ultra-shallow enclosure measuring 607 mm wide, 401 mm deep, and 175 mm high with its feet installed. Its polypropylene cone, rubber surround, high-density-flux ferrite motor, and single copper voice coil are housed in a compact enclosure with internal sound-absorbing material. The included mesh grille helps protect the woofer, while rounded corners and a removable terminal block support clean installation and service access.

Connect this passive enclosure to a dedicated subwoofer amplifier channel that is rated for a 2-ohm load and appropriately matched to its 500-watt continuous power capability. Use a low-pass crossover in the amplifier or DSP to integrate it with the vehicle's main speakers, then test both up-firing and down-firing positions before finalizing placement. For down-firing use, install the supplied leveling feet with their hook-and-loop inserts so the enclosure has the intended clearance from the vehicle floor.
