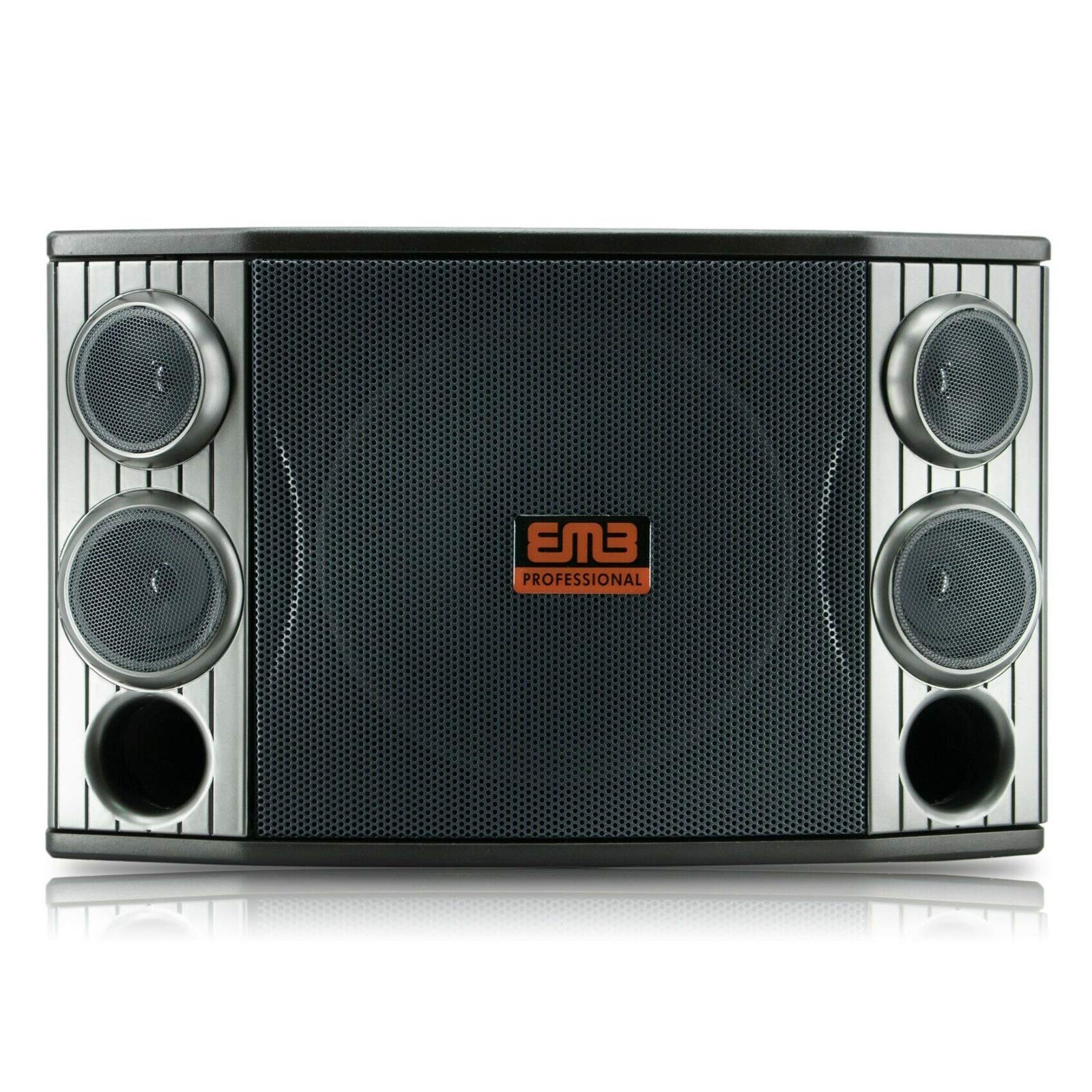

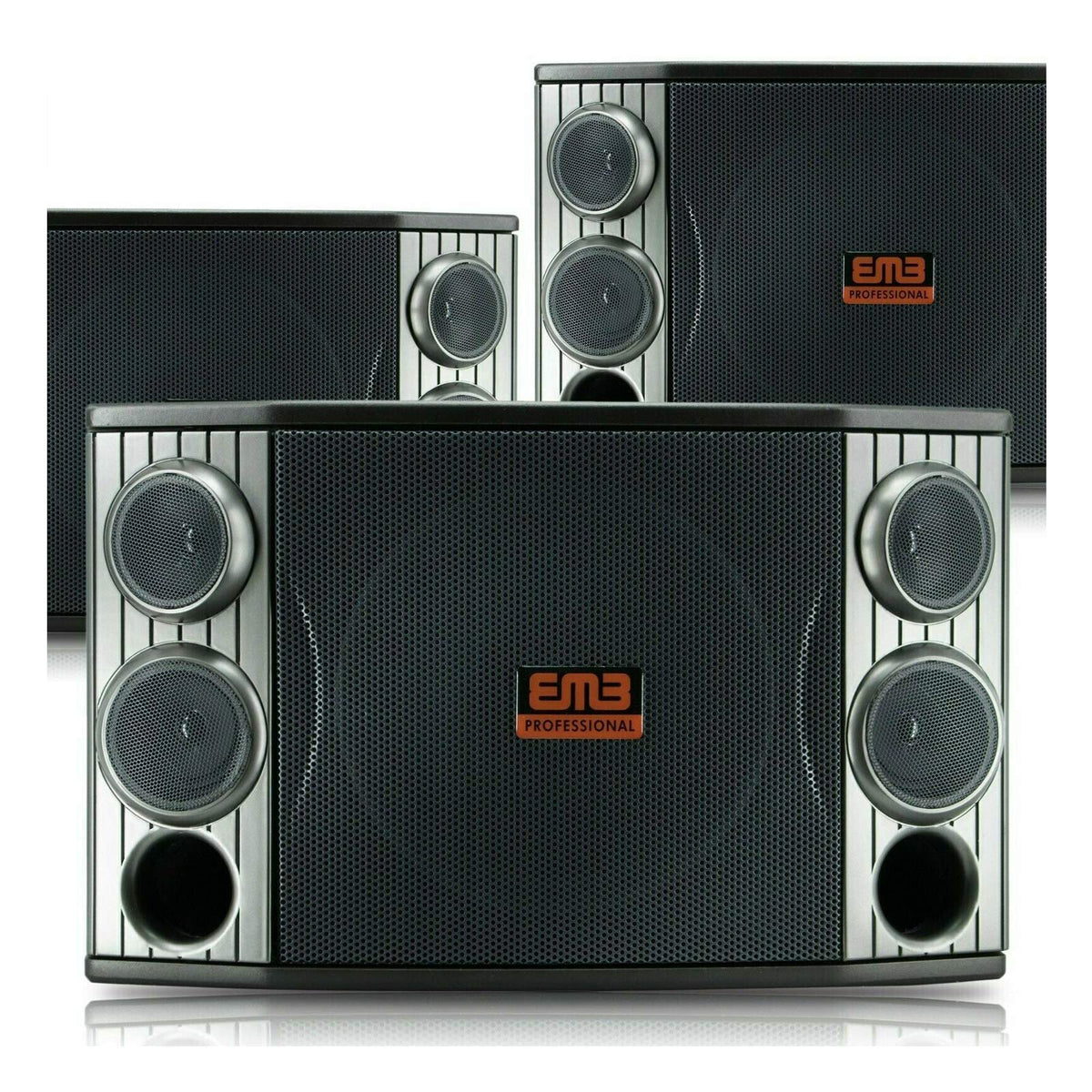

EMB KTV-800 10" 3-Way Karaoke Speaker Pair

The EMB Professional KTV-800 is a pair of passive 10-inch karaoke speakers built for home singing rooms, entertainment spaces, and installed playback systems. Each cabinet uses a 3-way, 5-speaker layout designed to reproduce recorded music along with live microphone vocals. They require a compatible external amplifier and are intended to operate as left and right speakers in a complete karaoke system.

A 10-inch paper-cone woofer supplies the main bass and mid-bass foundation, while two 3-inch squawkers and two 3-inch tweeters add vocal presence and high-frequency detail. The bass-reflex cabinet is designed to support the rhythmic low-frequency content of karaoke backing tracks. This makes the KTV-800 suited to systems where singers need clear musical timing and intelligible vocal playback.

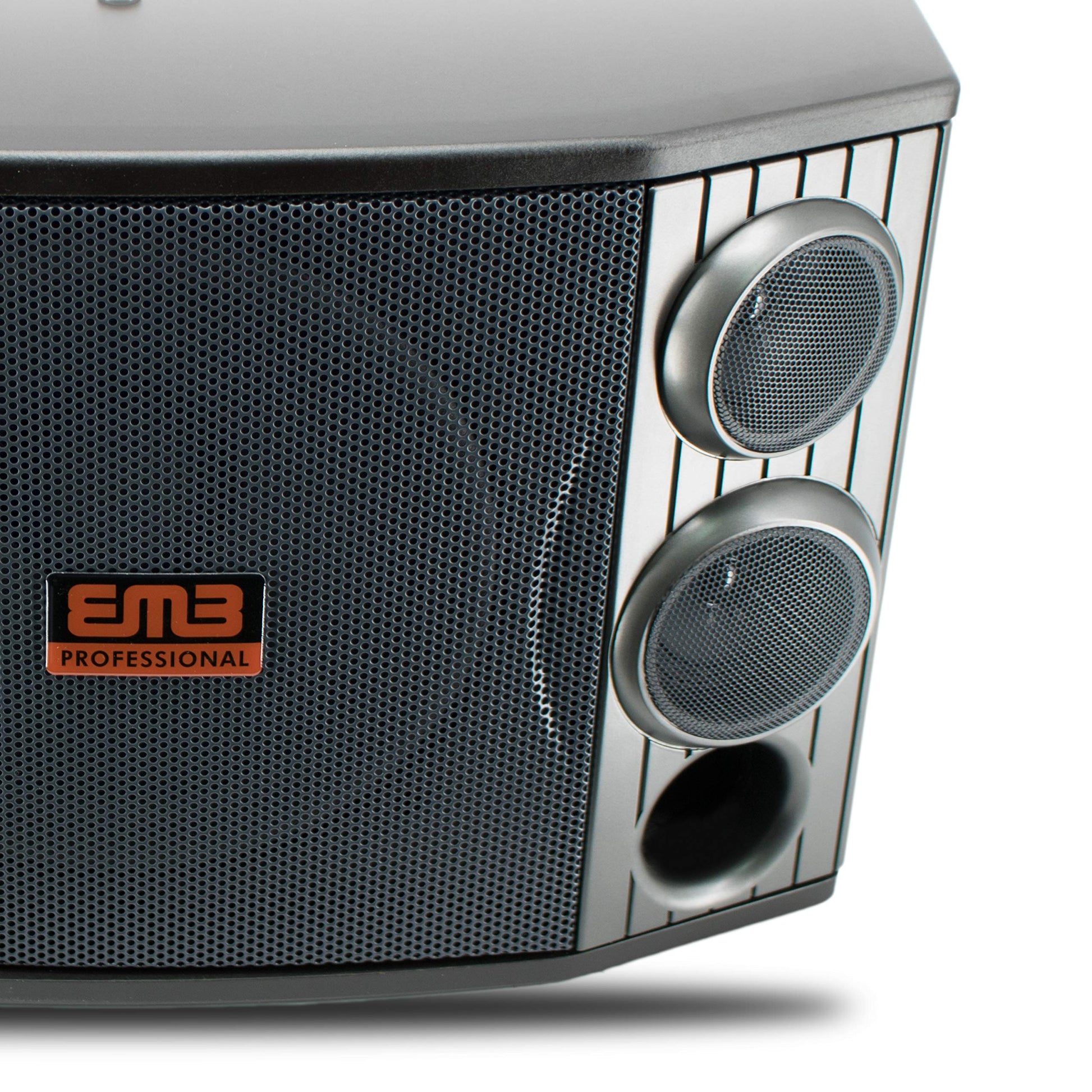

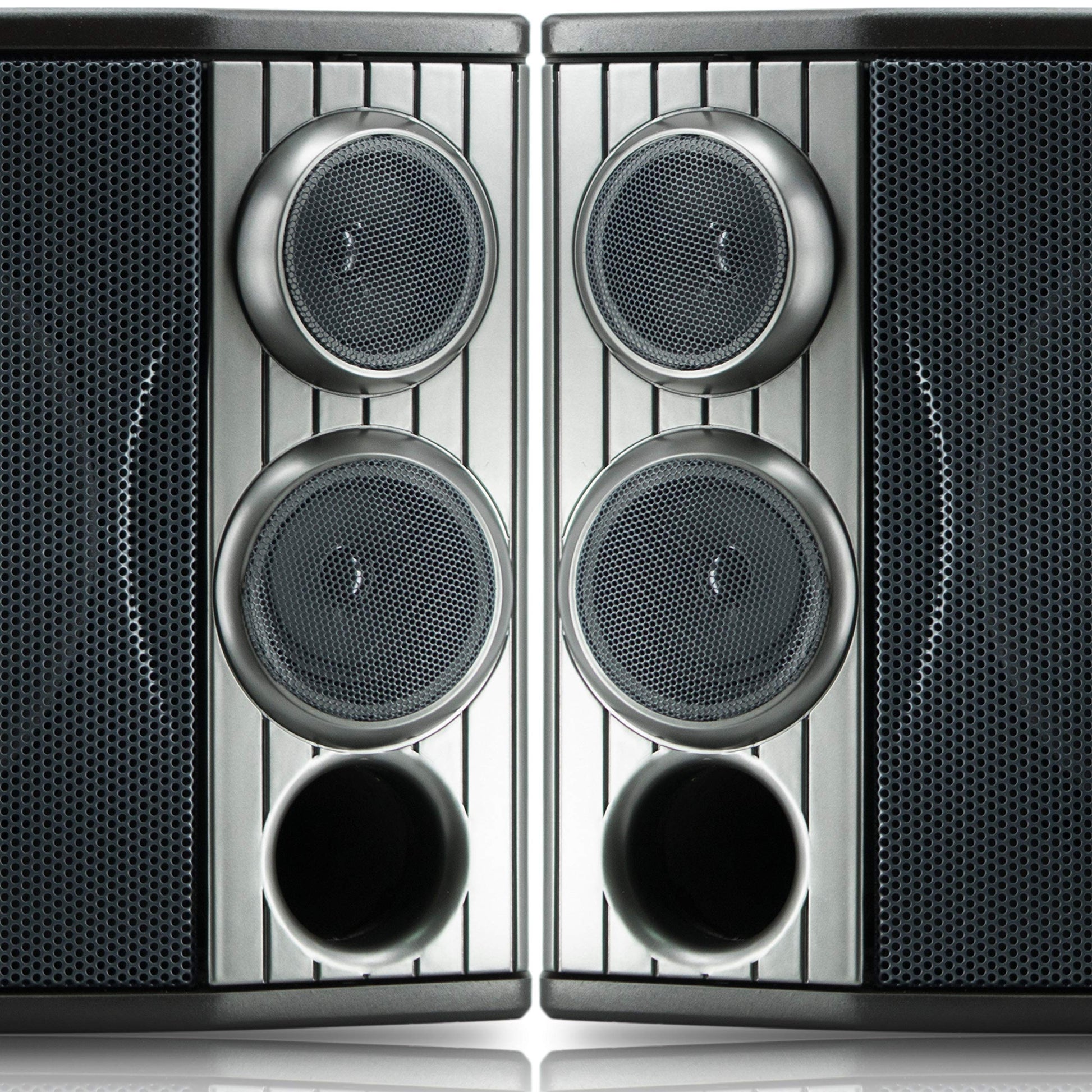

Unlike a conventional front-only loudspeaker arrangement, the KTV-800 places its smaller squawker and tweeter drivers on both sides of the cabinet. Their sound direction can be adjusted individually to help aim higher-frequency output toward the listening area. This layout is intended to broaden coverage for listeners positioned around a room.

The KTV-800 is rated for 800 watts maximum input per speaker, with a 1,600-watt maximum input rating for the pair. Each speaker presents an 8-ohm load, so amplifier selection should account for the amplifier's rated output into 8 ohms. A mixer, microphones, source player, and suitable speaker wiring are needed to create a complete karaoke setup.

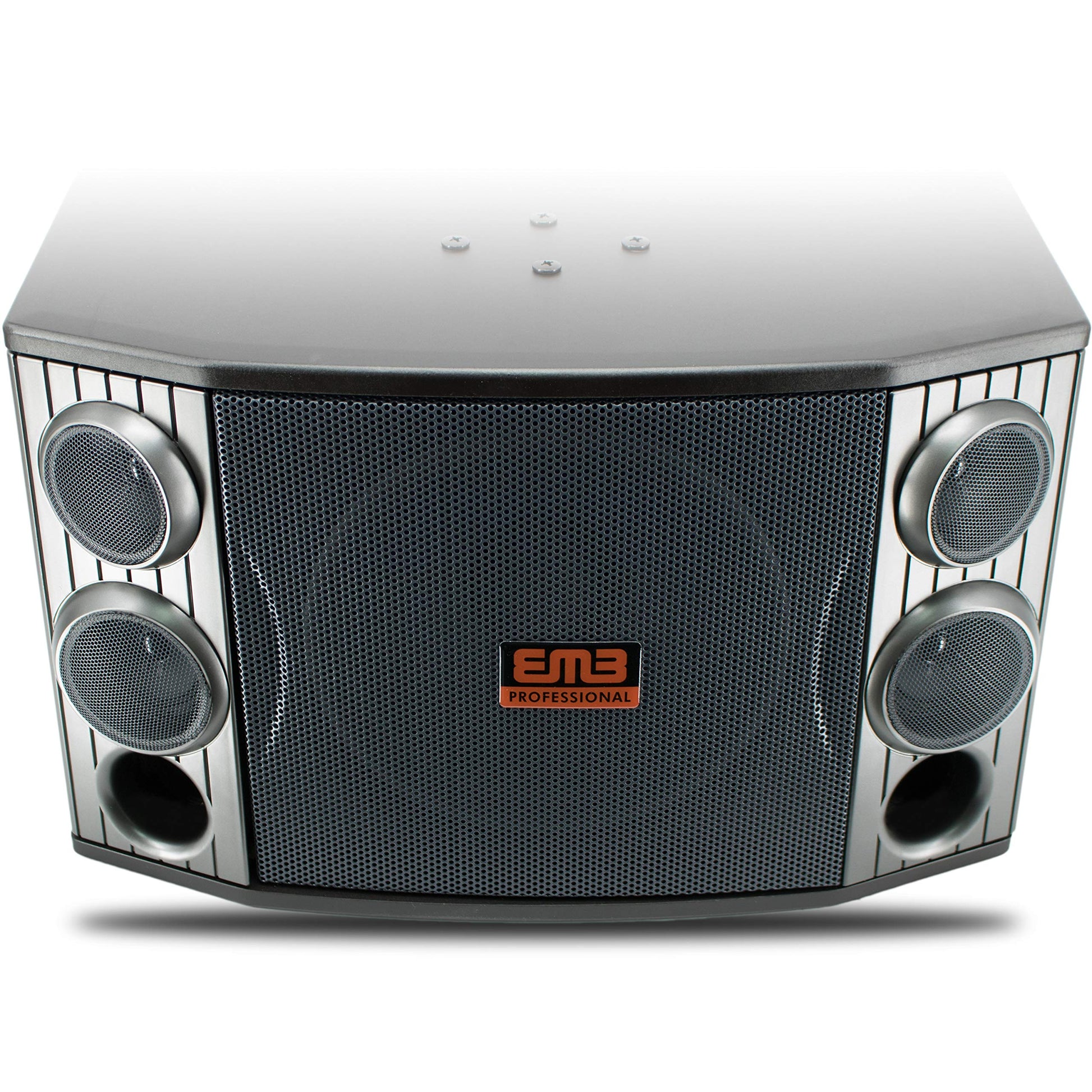

These speakers use substantial wood enclosures with double-layer construction and interlocking cabinet panels. The product information also notes reinforced frames, long voice coils using thick-gauge wire, and large rear magnets behind the speaker cones. Top and bottom mounting provisions allow the pair to be incorporated into fixed or semi-permanent installations where appropriate mounting hardware is used.

Key Features

• 3-Way, 5-Driver Layout: Combines a woofer, two squawkers, and two tweeters in each cabinet.

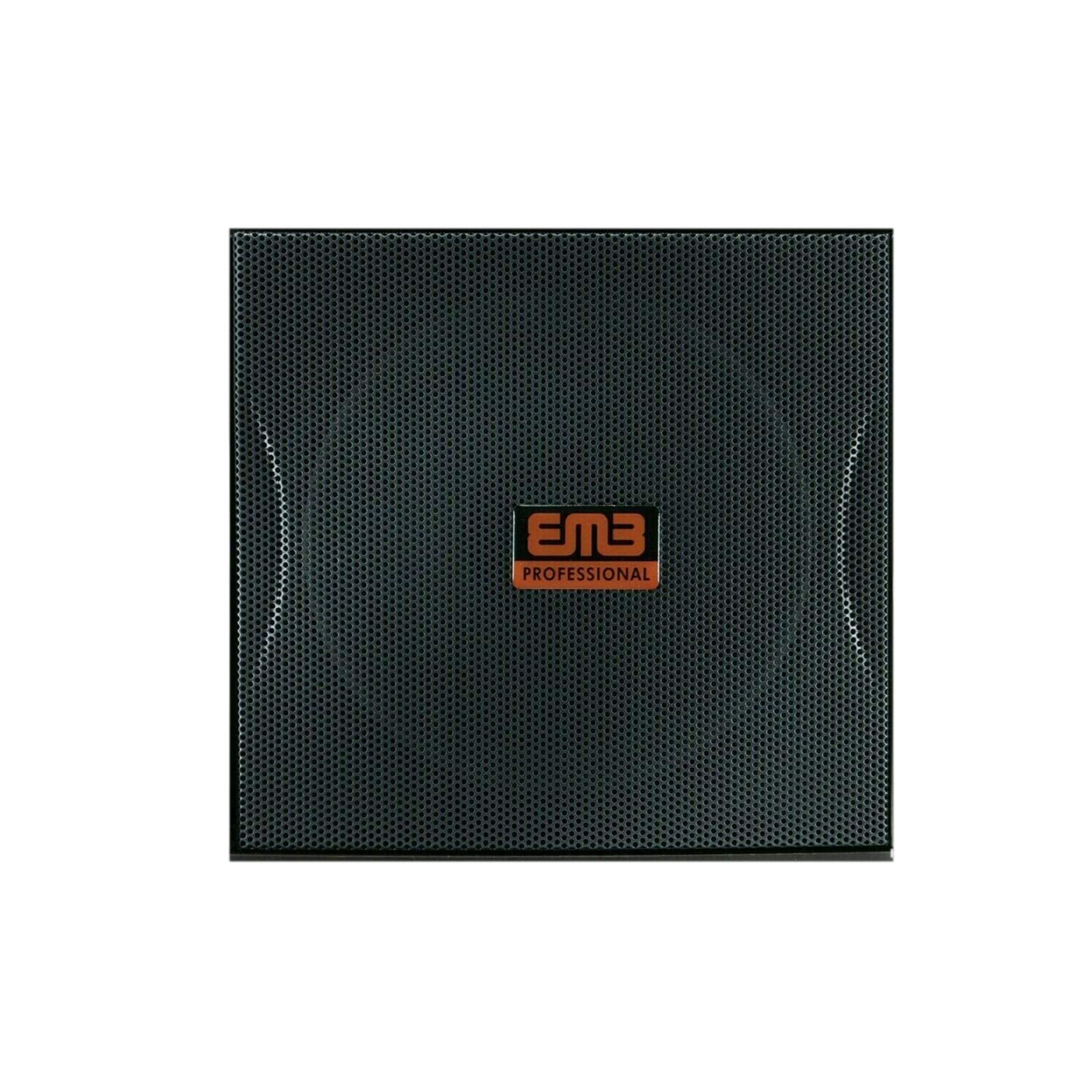

• 10-Inch Paper-Cone Woofer: Provides the primary bass and mid-bass foundation for music playback.

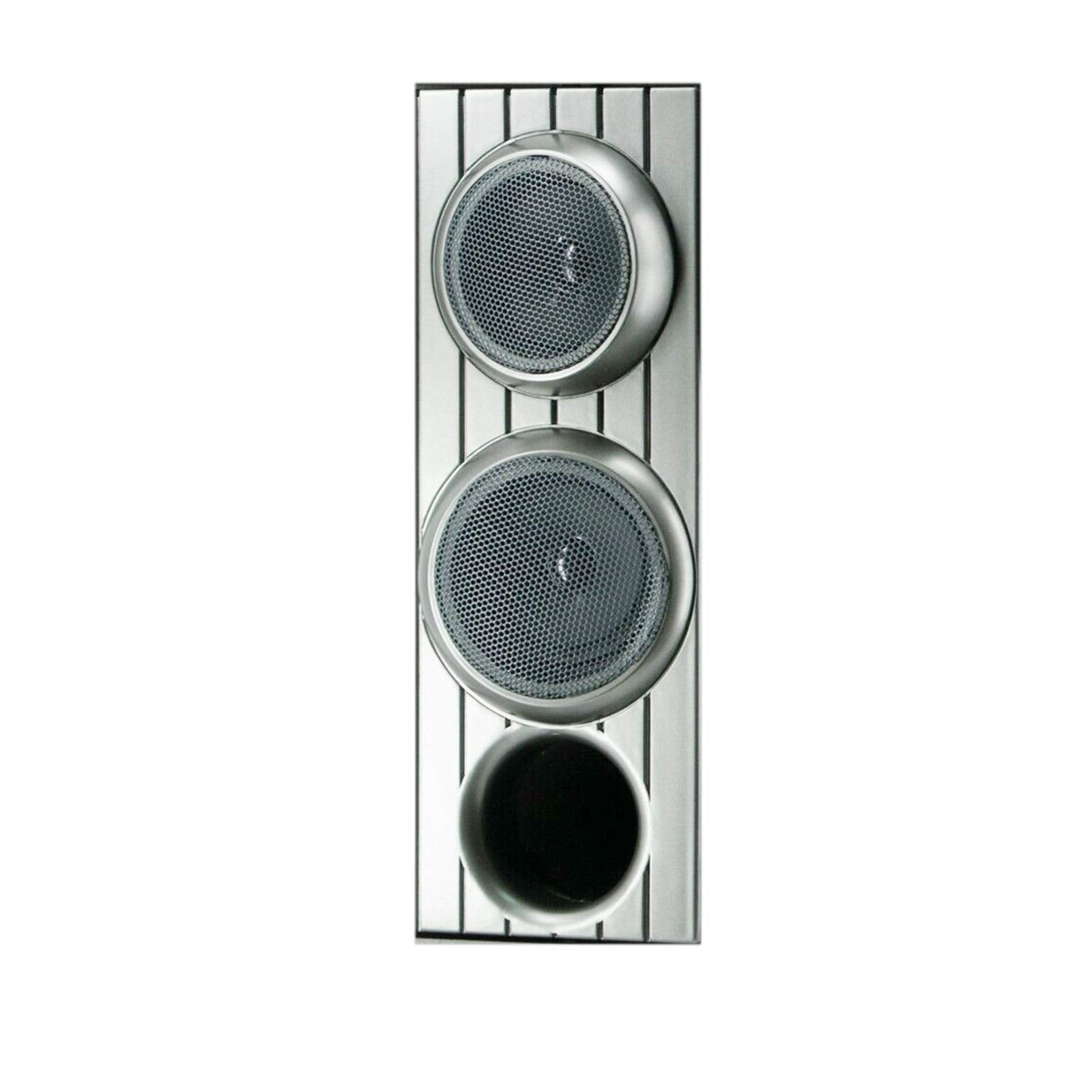

• Side-Mounted Squawkers And Tweeters: Helps distribute vocal and treble detail beyond a narrow front listening position.
• Adjustable High-Frequency Direction: Lets the squawker and tweeter sections be aimed toward the listening area.
• Bass-Reflex Cabinet: Supports low-frequency rhythm in karaoke music and general playback.
• 8-Ohm Passive Design: Connects to a compatible external amplifier for a complete karaoke system.

Design & Installation

Each KTV-800 cabinet uses double-layer wood housing and interlocking panels intended to reinforce the enclosure assembly. The drivers use paper cones, while the speaker frame joins the cone and magnet structure. Product information also identifies a long, thick-gauge-wire voice coil and a large magnet behind the speaker cone.

Use the speakers as a left/right pair with an external amplifier that supports 8-ohm speaker loads. Connect them with appropriate speaker cable, then position or mount the cabinets using the top and bottom mounting provisions and compatible hardware. Aim the adjustable squawker and tweeter sections toward the main listening area; an external mixer, microphones, and playback source are required for karaoke use.
