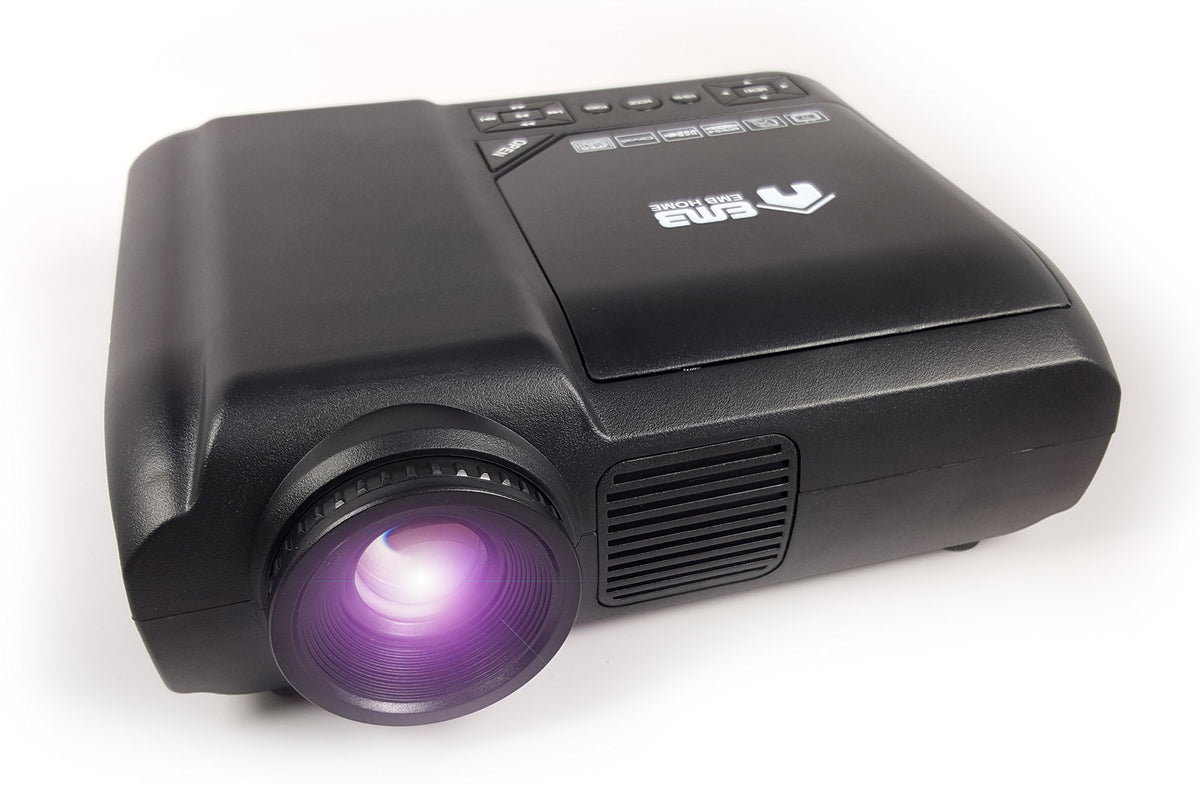

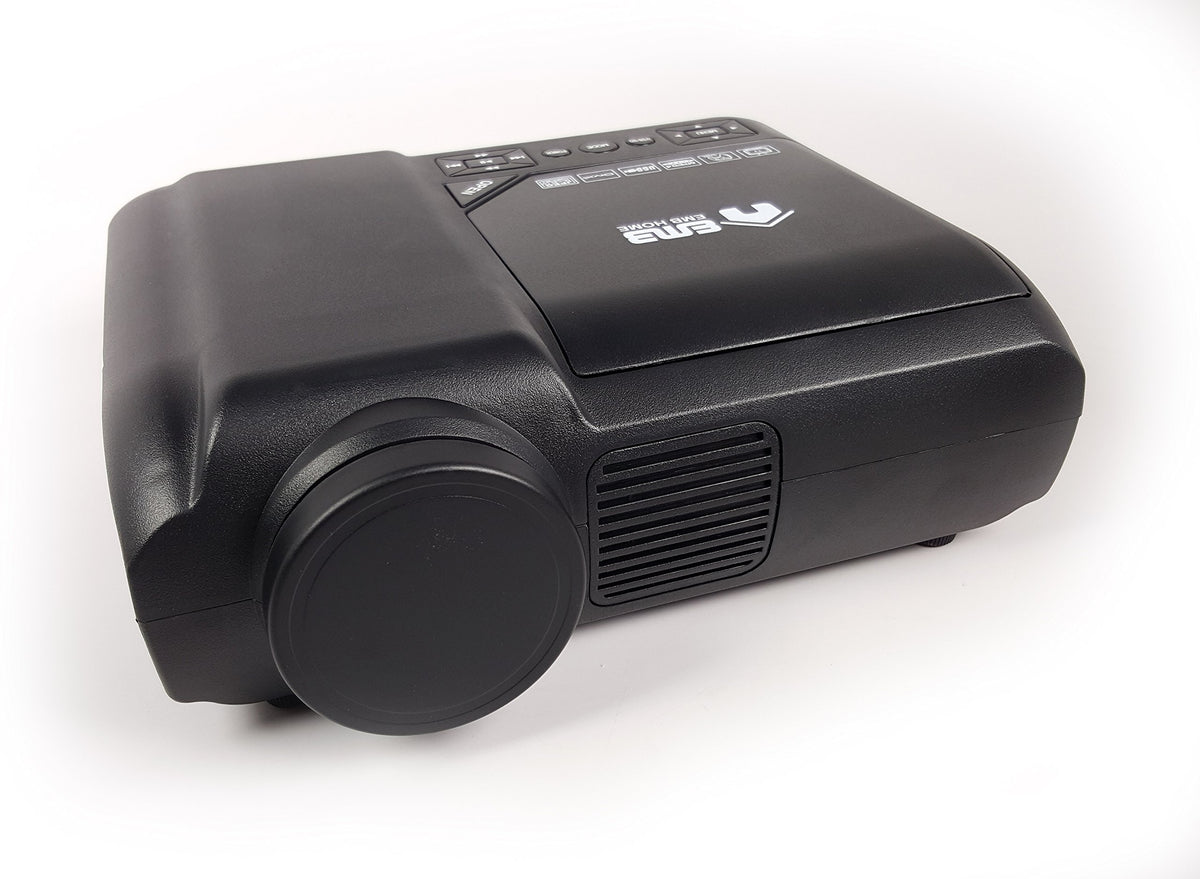

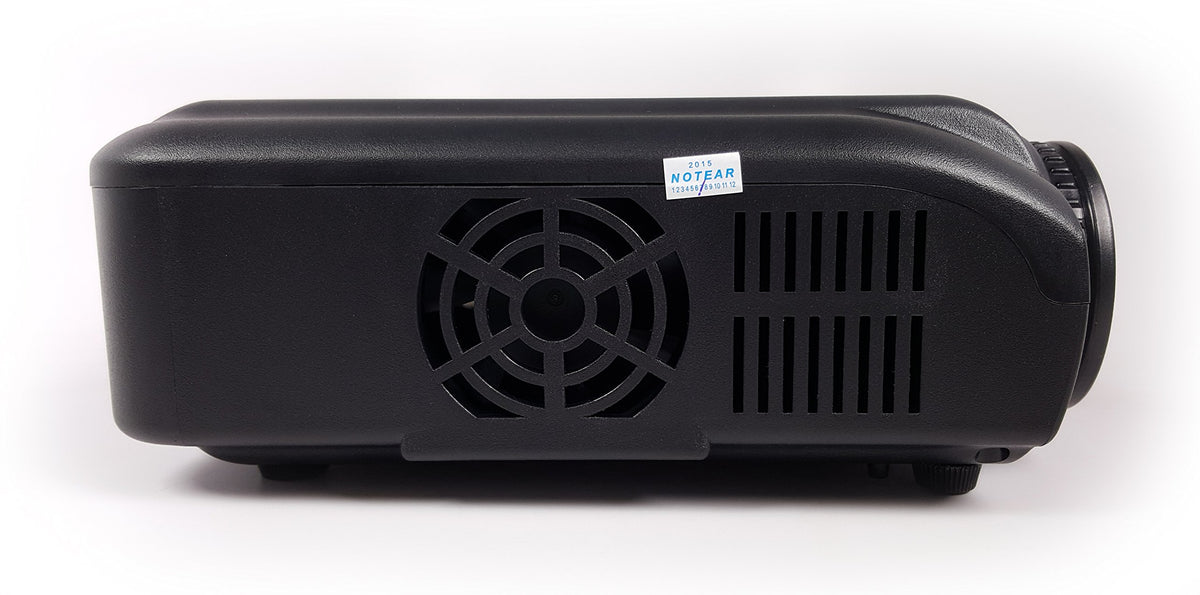

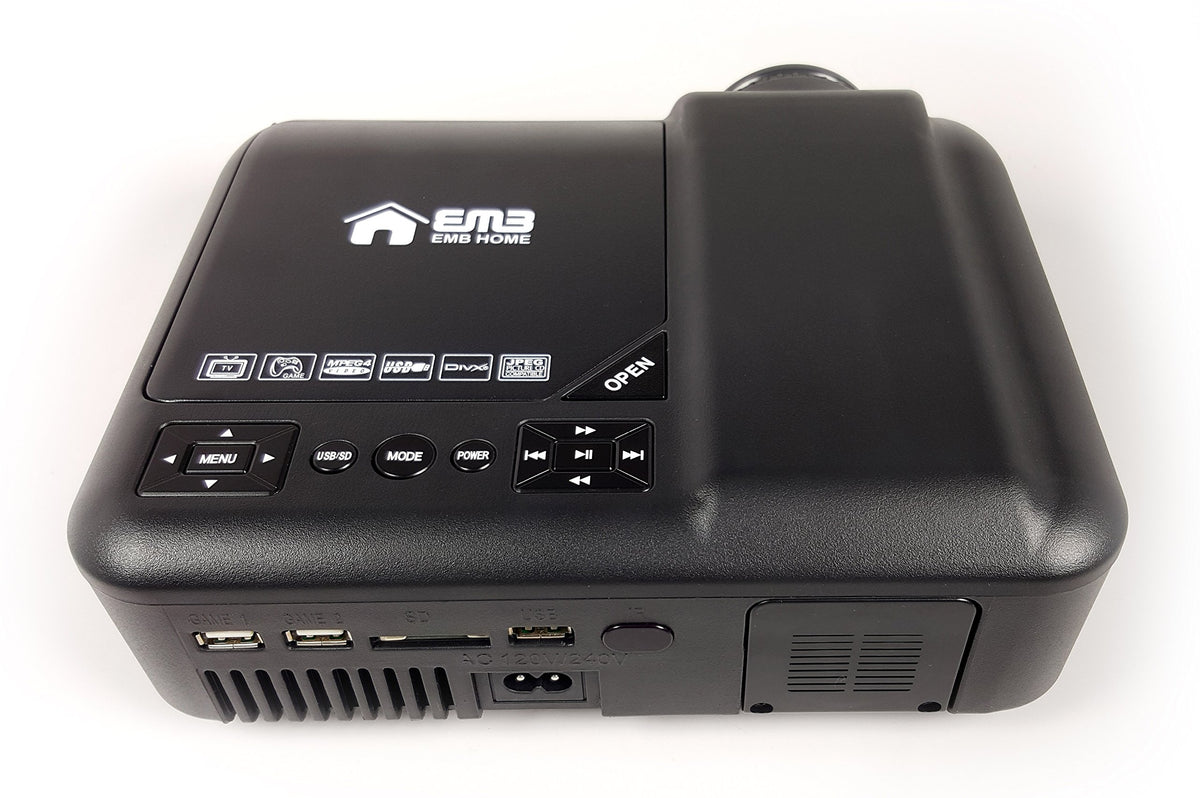

EMB Home EBP200 Portable DVD LED Projector

The EMB Home EBP200 is a compact LED projector with an integrated DVD player for basic big-screen viewing without requiring a separate disc player. It is designed for home entertainment, casual media playback, gaming connections, and simple business or educational use. Its portable format and multiple media-input options help consolidate discs, stored files, and compatible AV sources into one device.

With a stated 10 to 80-inch projection-image range, the EBP200 is intended for smaller viewing spaces where a modest projected picture is more practical than a television or monitor. Manual focus lets the user adjust image sharpness after positioning the projector. The specified 0.5 to 2.5 meter projection distance supports flexible placement on a table, wall, or ceiling setup.

The projector uses an LED light source rated for a minimum 20,000-hour life, reducing the need for routine lamp replacement. Its 60 ANSI-lumen peak brightness, 100:1 contrast ratio, and 240 x 320 resolution make it most appropriate for dim, controlled environments. This is a basic multimedia projector rather than a high-resolution home-theater display.

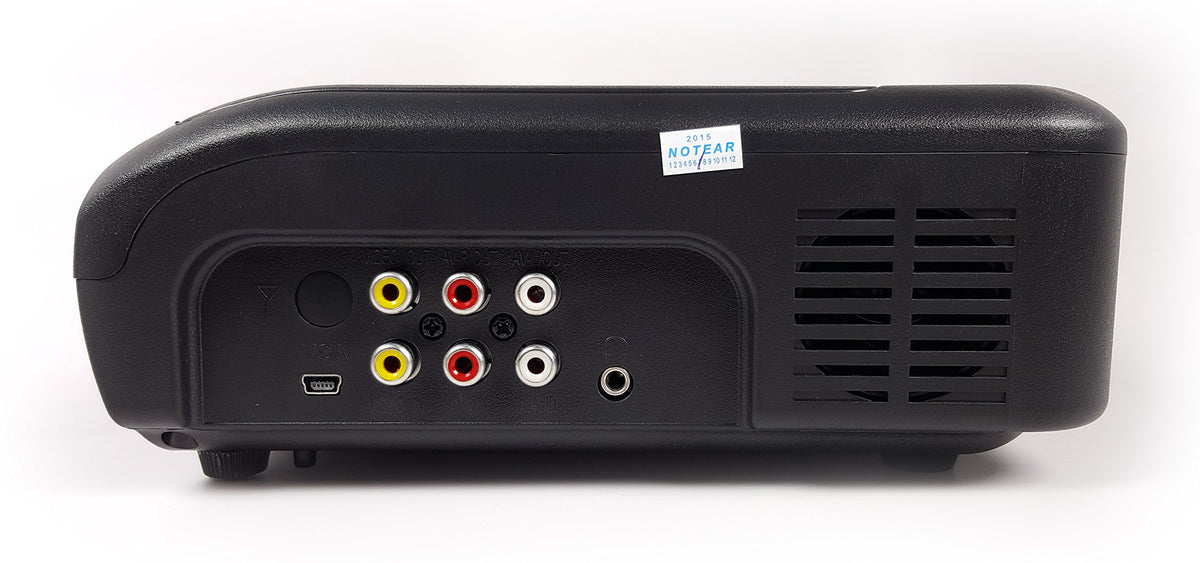

For standalone playback, the EBP200 includes dual 1-watt stereo speakers and an integrated DVD function. It also provides audio L/R output, headphone output, and an output listed for an external stereo speaker. These options allow the projector to be used quietly with headphones or connected to a compatible external audio system.

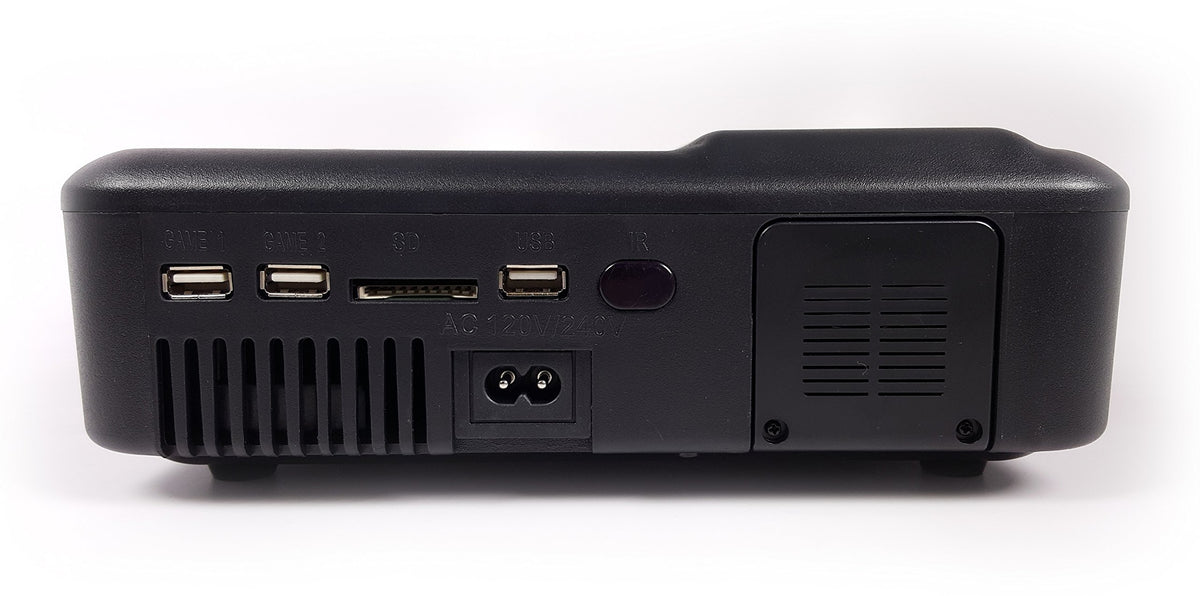

USB Host, MMC card, disc, TV, and AV input functions give the EBP200 several content-access options. Supported media includes common JPEG-family image files, selected AVI, ASF, RM/RMVB, and FLV video files, plus audio CD, WMA, and WAV audio. It can serve as a simple all-in-one projector for discs and stored media, or as part of a basic AV and gaming setup.

Key Features

• Integrated DVD Playback: Plays compatible DVDs directly through the projector.
• LED Light Source: Rated for a minimum 20,000-hour operating life.
• 10 to 80-Inch Image: Supports small-format projected viewing in compact spaces.
• Manual Focus: Lets users adjust sharpness for the installation distance.
• Multimedia Connectivity: Supports USB Host, MMC card, AV, disc, and TV functions.
• Stereo Audio Options: Includes dual speakers plus headphone and audio outputs.

Design & Installation

The EBP200 has a portable LED-projector design with integrated DVD playback and built-in stereo speakers. Specific enclosure materials are not published, but its design is intended for table, ceiling, or wall placement. The 4:3 projection format and manual-focus control keep operation straightforward for basic media and presentation use.

Place the projector 0.5 to 2.5 meters from the projection surface, then adjust the manual focus for the clearest available image. For the most usable picture, use it in a dim room and select an image size appropriate to the available distance. Connect compatible content through the AV input, USB Host port, MMC card slot, disc function, or TV function, and use headphones or compatible external audio equipment when more private or higher-output sound is needed.
