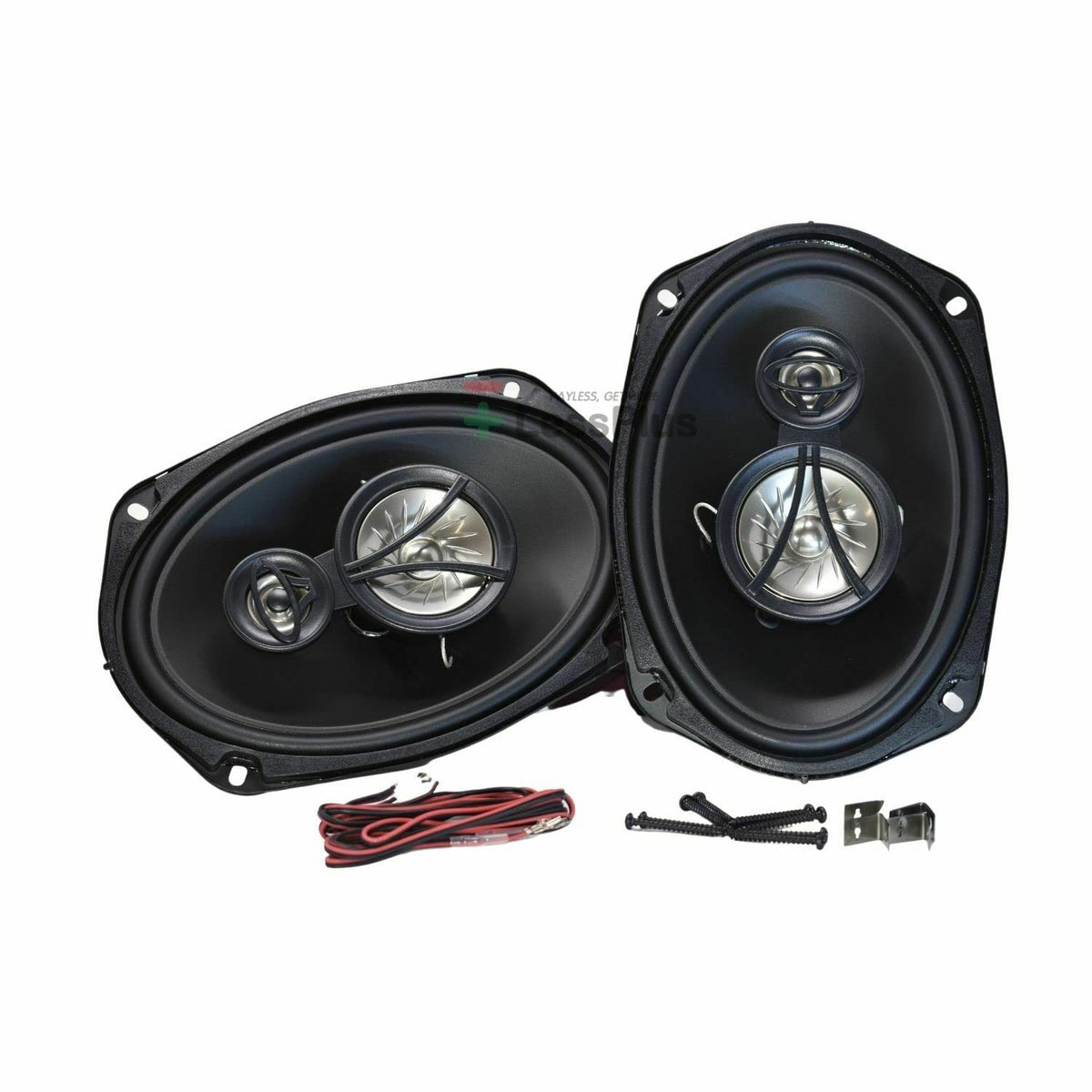

Cerwin-Vega XED693 6 x 9" 3-Way Coaxial Speakers

The Cerwin-Vega XED693 is a pair of 6 x 9-inch 3-way coaxial car speakers designed as a direct sound-system upgrade for compatible factory speaker locations. They combine woofer, midrange, and tweeter elements in each speaker to cover a broad range of music from a single mounting position. This makes them a practical option for refreshing worn factory speakers or building an entry-level aftermarket system.

With 45 watts RMS and 350 watts maximum power handling per speaker, the XED693 is suited to use with an aftermarket receiver or a properly matched external amplifier. Its 4-ohm single-voice-coil design is common in automotive audio systems. Check the power rating and impedance capability of the connected head unit or amplifier before installation.

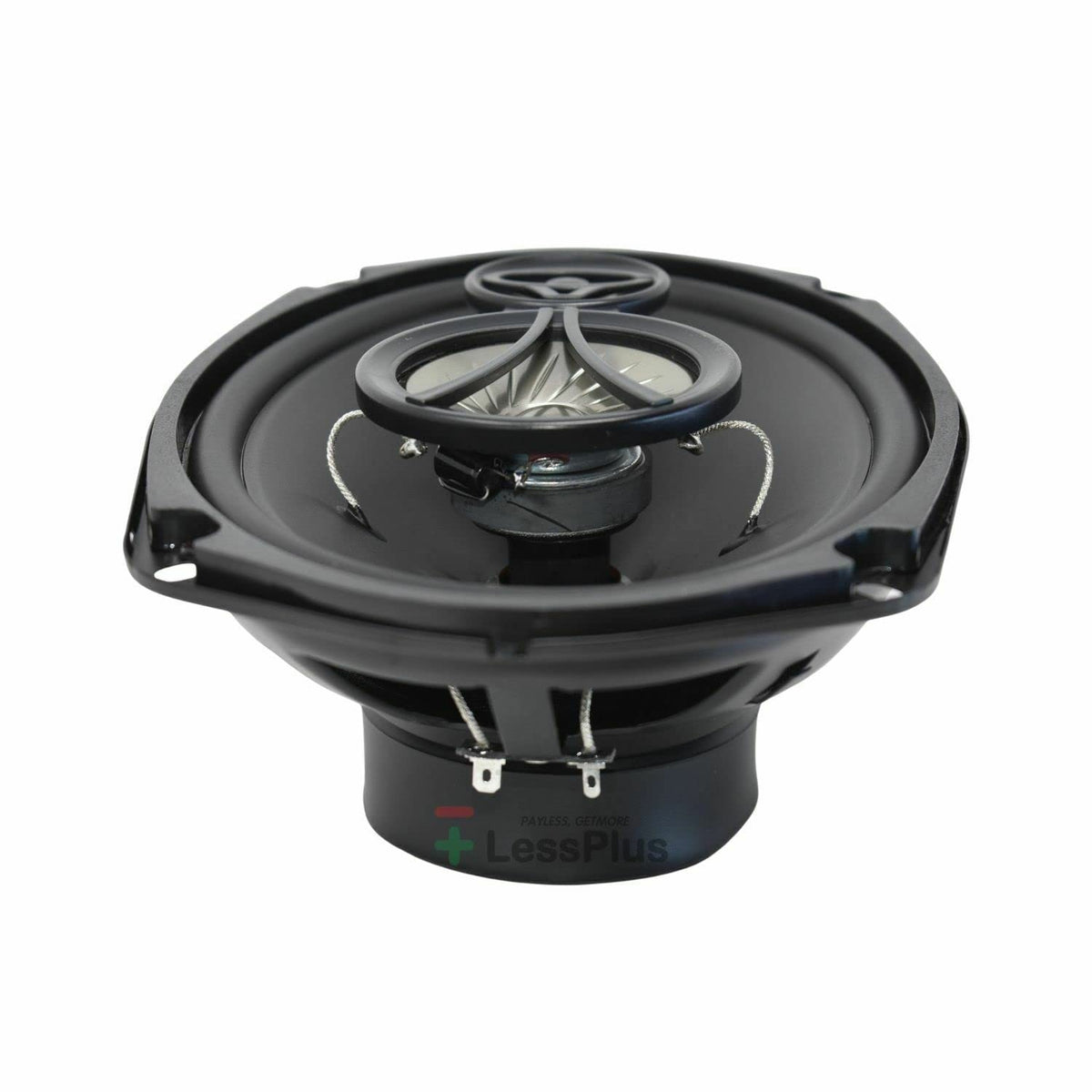

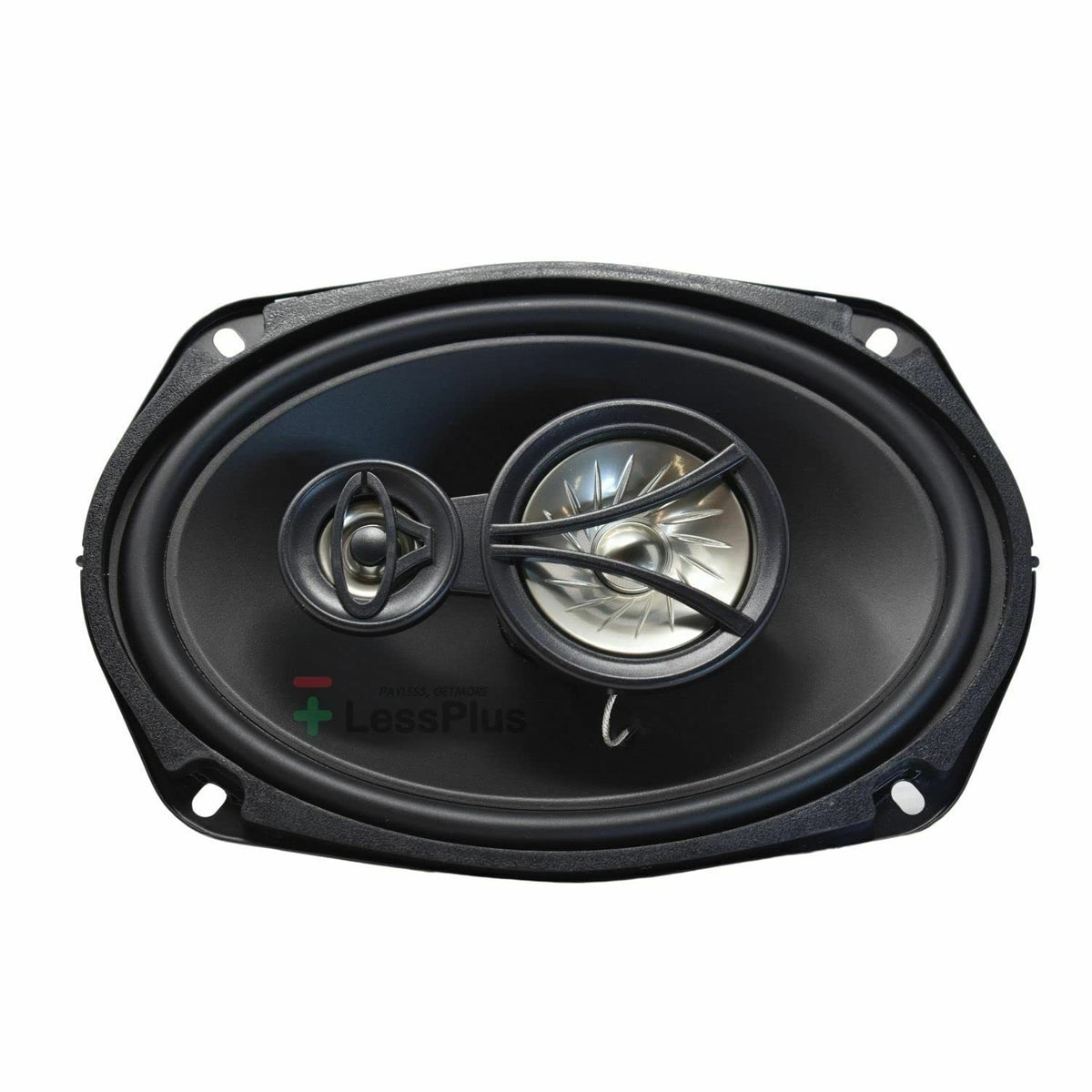

The 3-way coaxial layout uses a curvilinear polypropylene cone for the main driver, a dedicated 2.5-inch balanced metal-dome midrange, and a 0.75-inch balanced piezo metal-dome CV tweeter. This arrangement is intended to separate midrange and high-frequency reproduction from the larger woofer. The result is a full-range speaker format that can replace a single 6 x 9-inch factory speaker location.

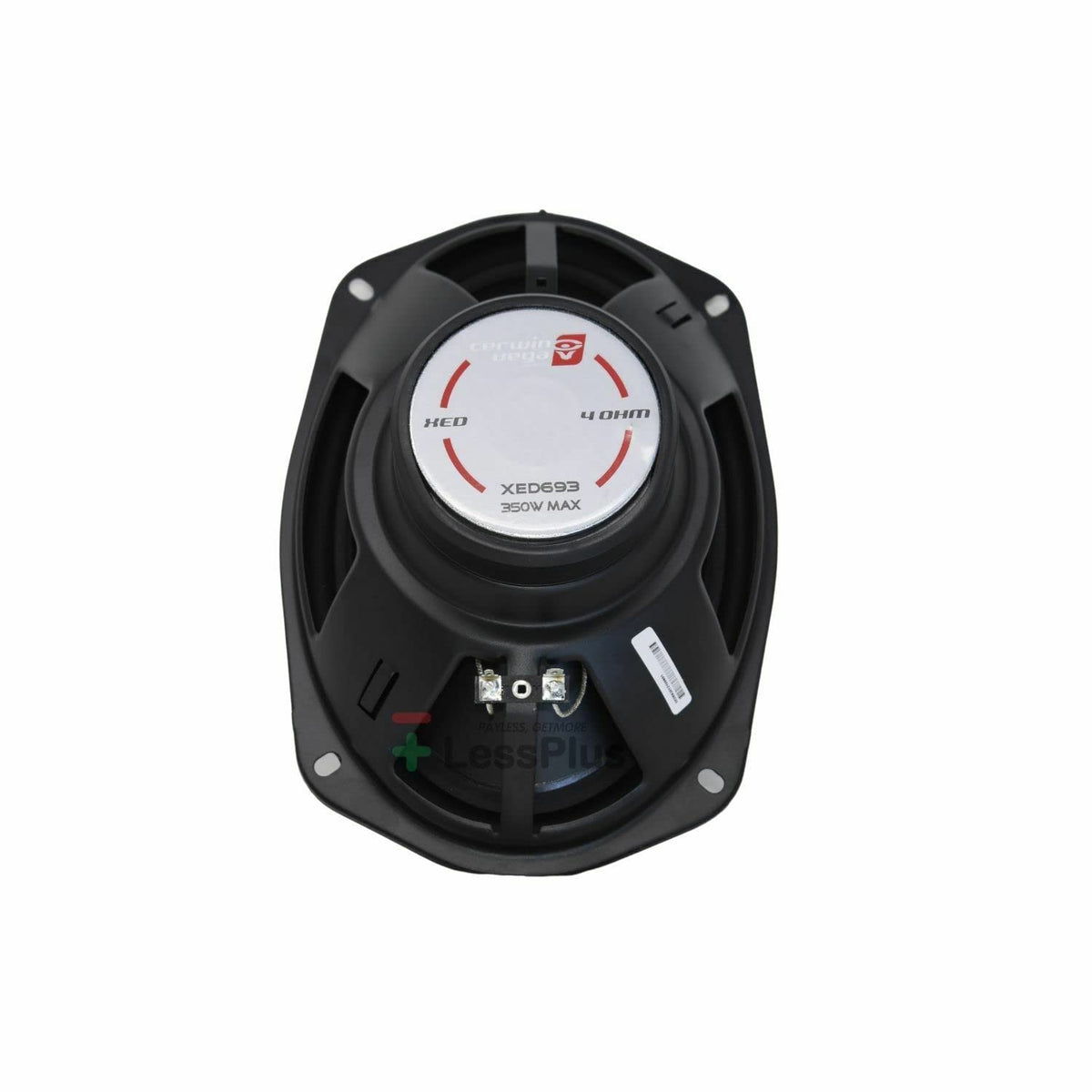

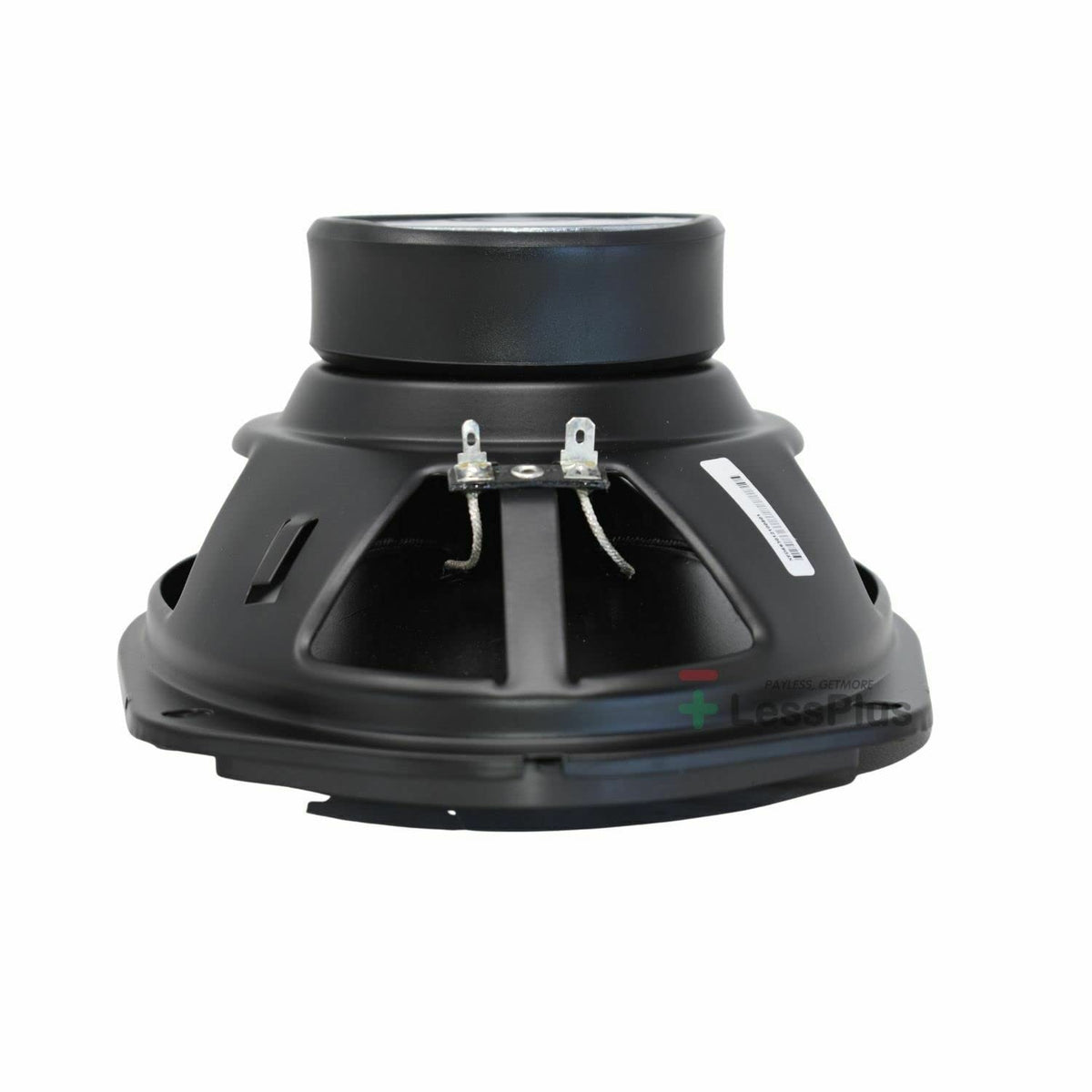

Construction includes a stamped-steel basket and ferrite magnet motor structure, with an internal crossover to manage the speaker's integrated driver system. The current manufacturer listing specifies a treated-foam surround, while the product manual identifies a butyl-rubber surround. Verify the physical product packaging if surround material is important for a particular installation or replacement match.

The XED693 can be used in compatible doors, rear decks, or other 6 x 9-inch vehicle locations, provided there is sufficient clearance behind the mounting surface. Its 3.4-inch mounting depth and 5.94 x 7.04-inch mounting opening requirements should be compared with the vehicle's available space. Grilles and mounting hardware are included for installations where they are needed.

Key Features

• 6 x 9-Inch Format: Fits many vehicle locations designed for 6 x 9-inch speakers.
• 3-Way Coaxial Design: Integrates woofer, midrange, and tweeter drivers in each speaker.
• 45W RMS Handling: Supports appropriately matched receiver or amplifier power.
• 4-Ohm Impedance: Works with many conventional car-audio speaker outputs.
• Internal Crossover: Directs frequencies among the integrated driver elements.
• Grilles And Hardware: Provides included installation and protective accessories.

Design & Installation

The XED693 uses a curvilinear polypropylene cone, aluminum diaphragm material, stamped-steel basket, and ferrite magnet. Its integrated driver array includes a 2.5-inch balanced metal-dome midrange and a 0.75-inch balanced piezo metal-dome CV tweeter. The compact coaxial format keeps the multiple driver elements within the main speaker assembly.

Confirm the vehicle accepts a 6 x 9-inch speaker and measure for the specified 3.4-inch mounting depth before ordering. The mounting opening should accommodate approximately 5.94 x 7.04 inches, and the speaker frame should be sealed securely against the mounting surface to help prevent air leaks. Observe positive and negative terminal polarity, use secure wiring connections, and match amplifier gain conservatively to the 45-watt RMS rating.
