Audiotek ATW460BK 1" Titanium Super Tweeters (Pair)

The Audiotek ATW460BK is a pair of 1-inch super tweeters designed to add dedicated high-frequency output to a car audio system. They are intended for listeners building or upgrading systems that need more presence from vocals, cymbals, and other upper-frequency details. The compact driver format makes them suitable for custom installations where larger speakers are not practical.

Each ATW460BK tweeter is specified with an 8-ohm impedance, 100 dB sensitivity, and a 3,000 Hz to 25,000 Hz frequency-response range. Its stated 600-watt maximum power handling identifies it as a high-output tweeter for systems designed around amplified audio. Match the tweeters with compatible amplification and a properly planned crossover strategy for the installation.

The design uses a super-tweeter format with a bullet-style center section. This configuration is intended to support focused high-frequency reproduction in systems that also use midrange drivers and subwoofers. It is a practical fit for custom door-panel, dash, pillar, or enclosure-based speaker arrays when the mounting dimensions are observed.

An aluminum dome/diaphragm, aluminum voice coil, and die-cast aluminum frame are listed for the ATW460BK. These materials support a rigid, durable driver assembly for automotive audio use. The product is also listed with a capacitor filter to help manage the signal delivered to the tweeter.

The ATW460BK can be used as part of a component-style car audio upgrade rather than as a full-range speaker replacement. It complements compatible midrange drivers by covering the upper-frequency portion of the system. Because this UPC corresponds to a two-tweeter package, it can be used for left- and right-channel installation.

Key Features

• 1-Inch Super Tweeters: Compact high-frequency drivers for custom car audio systems.
• Pair Package: Includes two ATW460BK tweeters for stereo installation.
• 600W Maximum Power: Listed maximum power handling for each tweeter.
• 8-Ohm Impedance: Supports matching with compatible amplifier channels and crossovers.
• Aluminum Construction: Aluminum diaphragm, voice coil, and die-cast frame are listed.
• Capacitor Filter: Listed filtering helps direct appropriate frequencies to the tweeters.

Design & Installation

The ATW460BK uses a die-cast aluminum frame and is listed with an aluminum dome/diaphragm and aluminum voice coil. Its 1-inch driver and bullet-style super-tweeter layout are designed for dedicated high-frequency duty. The frame diameter is listed as 2 inches, while mounting depth is listed as 2-7/8 inches.

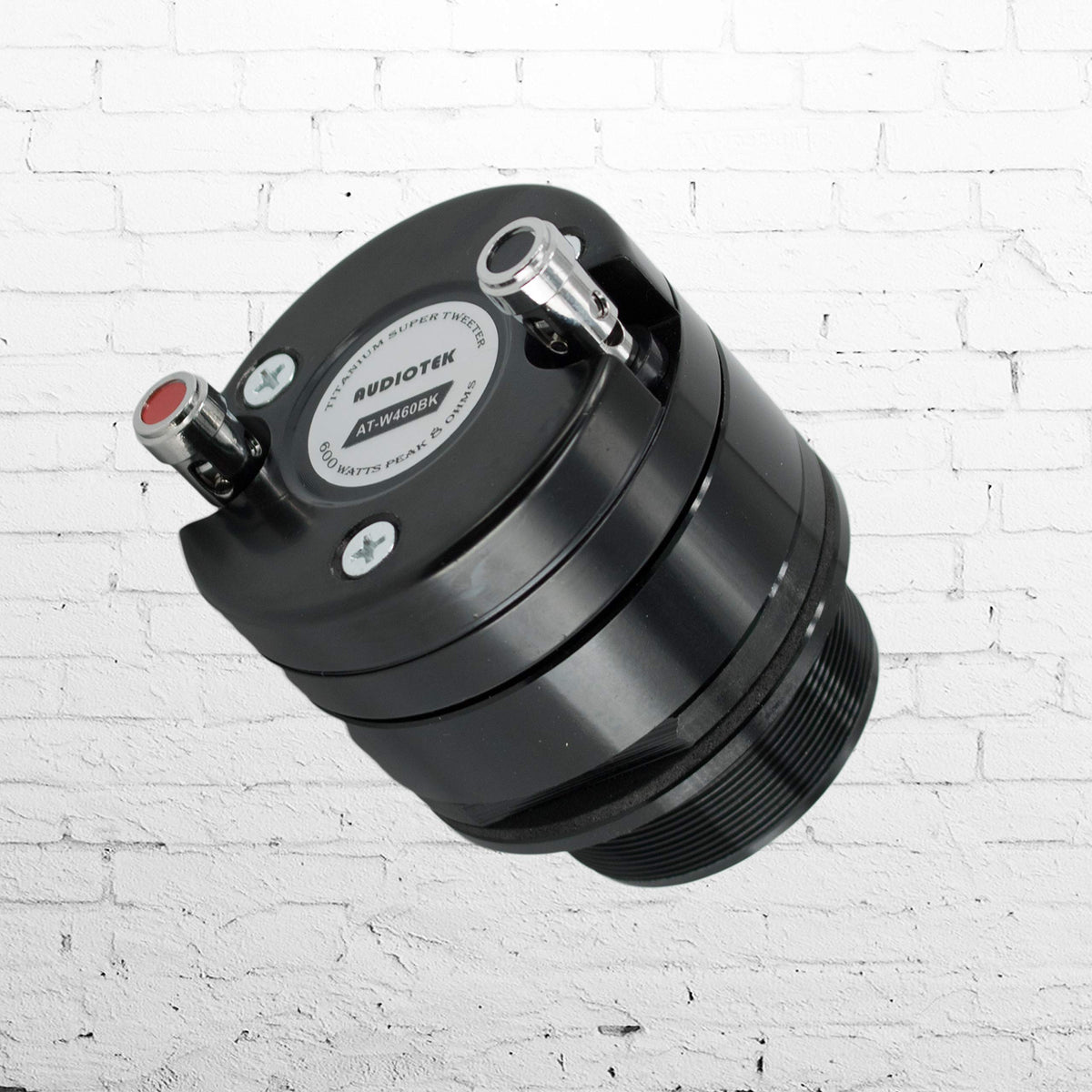

Install the pair in symmetrical left and right locations, using the listed mounting dimensions to confirm clearance before cutting or drilling. Connect through compatible wiring and a system designed for 8-ohm tweeters; the product is listed with spade terminals and a capacitor filter. Use these tweeters alongside appropriate midrange or full-range speakers rather than expecting them to reproduce bass or midbass frequencies.
