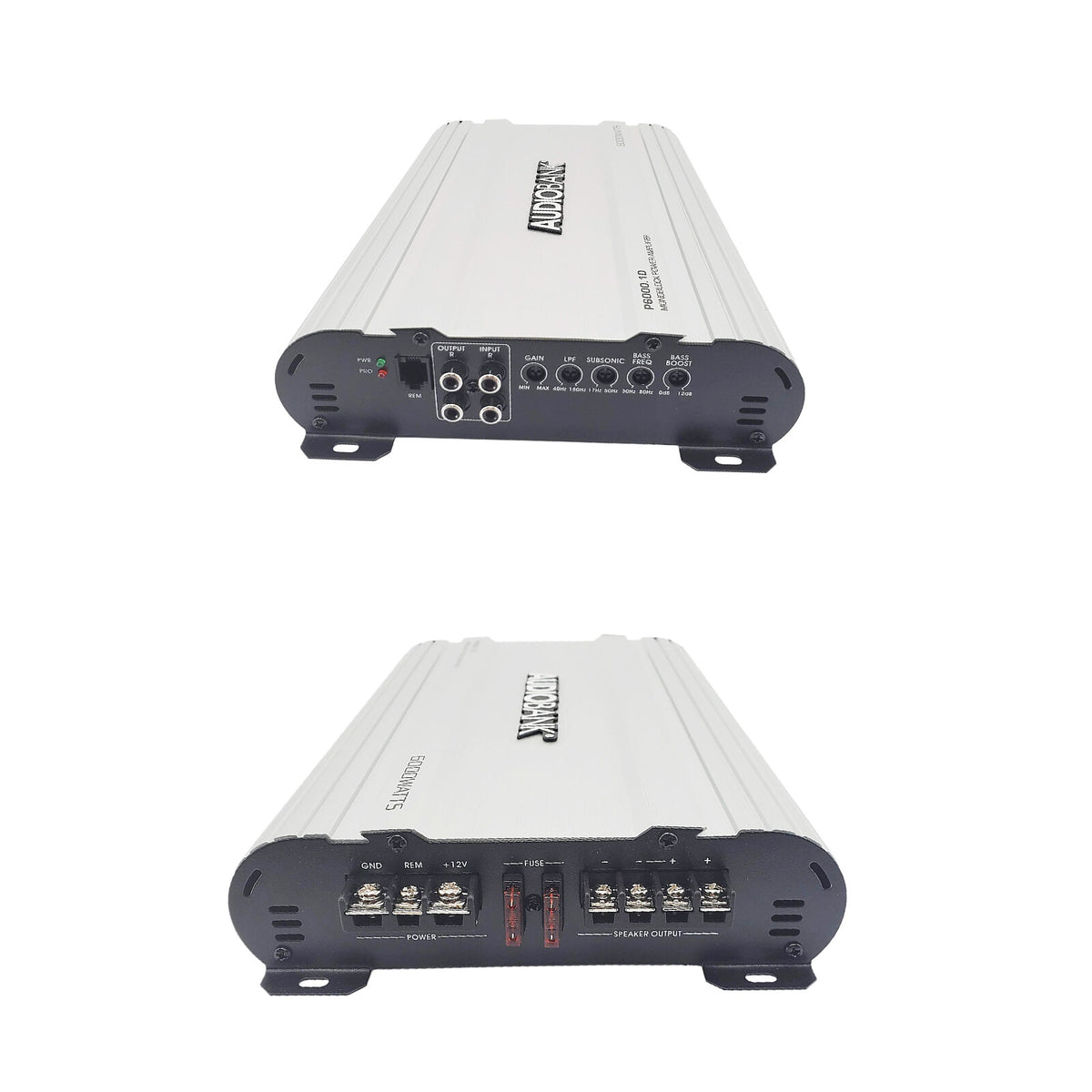

Audiobank P6000.1D Monoblock 6000 Watts Class D Amp Audio Bass Amplifiers
- Single-channel monoblock subwoofer amplifier
- 1-ohm stable operation
- 6000W maximum output at 1 ohm
- Variable 40-180 Hz low-pass crossover
- Includes 4-gauge amplifier installation kit
Product Info
| Brand | AUDIOBANK |
|---|---|
| Model / SKU | P6000-1D |
| UPC | 701160346549 |
| Availability | In stock and ready to quote |
The Audiobank P6000.1D is a single-channel monoblock car audio amplifier packaged with a 4-gauge installation kit. It is designed for adding dedicated low-frequency amplification to a vehicle sound system using a compatible subwoofer. Its selectable 1-, 2-, or 4-ohm operation gives installers flexibility when matching the amplifier to a subwoofer wiring configuration.
This amplifier is intended for car, truck, motorcycle, RV, and ATV audio installations where a separate bass amplifier is needed. The monoblock layout concentrates its output into one subwoofer channel rather than powering a full set of speakers. A remote subwoofer level control allows bass level adjustment from the driver seat after the system is installed.
The P6000.1D is specified with maximum output ratings of 6000 watts at 1 ohm, 4000 watts at 2 ohms, and 3000 watts at 4 ohms. Variable gain, bass boost, and a low-pass crossover help tailor the amplifier to the connected subwoofer and the rest of the audio system. Its listed frequency response is 17 Hz to 180 Hz for bass-focused applications.
A MOSFET pulse-width-modulated power supply supports the amplifier's power section, while the aluminum alloy heatsink is designed to help manage operating heat. Soft turn-on operation, thermal protection, and speaker-short protection add practical safeguards for everyday use. LED power and protection indicators provide at-a-glance operating status.
The included 4-gauge wiring kit provides key installation components for a basic amplifier connection. It includes power and ground cable, an AGU fuse holder, fuses, RCA cable, remote turn-on wire, speaker wire, and terminals. This bundle is suited to shoppers building or refreshing a dedicated subwoofer amplifier installation.
Key Features
- Monoblock Design: Provides one dedicated channel for a compatible subwoofer system.
- 1-Ohm Stable Operation: Supports compatible 1-, 2-, and 4-ohm speaker loads.
- Variable Low-Pass Crossover: Adjusts the bass passband from 40 to 180 Hz.
- Remote Bass Level Control: Lets the driver adjust subwoofer level conveniently.
- MOSFET PWM Power Supply: Supports the amplifier's internal power conversion section.
Design & Installation
The P6000.1D uses an aluminum alloy heatsink and nickel-plated RCA and speaker-level input connections. Its compact listed dimensions are 8 inches wide, 2 inches high, and 12 inches deep. LED power and protection indicators, soft turn-on circuitry, and protection circuits support practical system monitoring.
Mount the amplifier in a secure, ventilated location and wire it with the included 4-gauge kit components as appropriate for the vehicle installation. Match the final subwoofer load to the amplifier's supported 1-, 2-, or 4-ohm operation, and set gain and crossover controls during system tuning. The kit includes a 17-foot power cable, 3-foot ground cable, 17-foot RCA cable, turn-on wire, speaker wire, fuse holder, fuses, and terminals.
| Brand | Audiobank |
|---|---|
| Model | P6000.1D |
| Product Type | Monoblock car audio amplifier with installation kit |
| Amplifier Channels | 1 |
| Amplifier Class | Class A/B |
| Maximum Output Power | 6000W |
| Maximum Power at 1 Ohm | 6000W x 1 |
| Maximum Power at 2 Ohms | 4000W x 1 |
| Maximum Power at 4 Ohms | 3000W x 1 |
| Stable Impedance | 1, 2, or 4 ohms |
| Bridgeable | No |
| Tri-Mode Operation | Yes |
| Frequency Response | 17 Hz-180 Hz |
| Low-Pass Crossover | Variable, 40 Hz-180 Hz |
| Bass Boost | Variable, 0 to +12 dB |
| Signal-to-Noise Ratio | 90 dB |
| Total Harmonic Distortion | 0.01% at RMS output |
| Channel Separation | 90 dB |
| Damping Factor | 125+ |
| Fuse Rating | 40A x 2 |
| Power Supply | MOSFET pulse-width-modulated |
| Line-Level Inputs | Yes |
| Speaker-Level Inputs | Yes |
| Input Connectors | Nickel-plated RCA and speaker-level inputs |
| Input Gain Control | Continuously variable |
| Remote Subwoofer Level Control | Yes |
| Remote Turn-On/Turn-Off Circuit | Yes |
| Soft Turn-On Circuit | Yes |
| Thermal Protection | Yes |
| Speaker-Short Protection | Yes |
| Status Indicators | LED power and protection indicators |
| Heatsink Material | Aluminum alloy |
| Amplifier Width | 8 in |
| Amplifier Height | 2 in |
| Amplifier Depth | 12 in |
| Included Installation Kit Gauge | 4 gauge |
| Included Power Cable | 17 ft, 4 gauge |
| Included Ground Cable | 3 ft, 4 gauge |
| Included Fuse Holder | Inline AGU fuse holder |
| Included Kit Fuses | 80A and 100A |
| Included RCA Cable | 17 ft, double-shielded |
| Included Turn-On Wire | 17 ft, 18 gauge |
| Included Speaker Wire | 20 ft, 16 gauge |
| Included Accessories | Terminals and installation accessories |
| Included Amplifier Accessory | Remote bass control |
| Included Documentation | Manual |
What type of speaker is this amplifier designed to power?
The P6000.1D is a monoblock amplifier intended for a compatible subwoofer installation. It has one output channel rather than multiple full-range speaker channels.
What subwoofer impedances can be used?
The amplifier is listed as stable at 1, 2, or 4 ohms. The final impedance depends on the subwoofer or subwoofers and how their voice coils are wired.
Are the listed wattage figures RMS ratings?
No RMS power rating is confirmed in the available product information. The published figures are maximum output ratings: 6000W at 1 ohm, 4000W at 2 ohms, and 3000W at 4 ohms.
Does the package include wiring for installation?
Yes. The package includes a 4-gauge amplifier kit with power and ground cable, an AGU fuse holder, fuses, RCA cable, turn-on wire, speaker wire, and terminals.
Can bass level be adjusted from the driver's seat?
Yes. A remote subwoofer level control is included for convenient bass-level adjustment. Gain, bass boost, and low-pass crossover controls are also provided on the amplifier.
