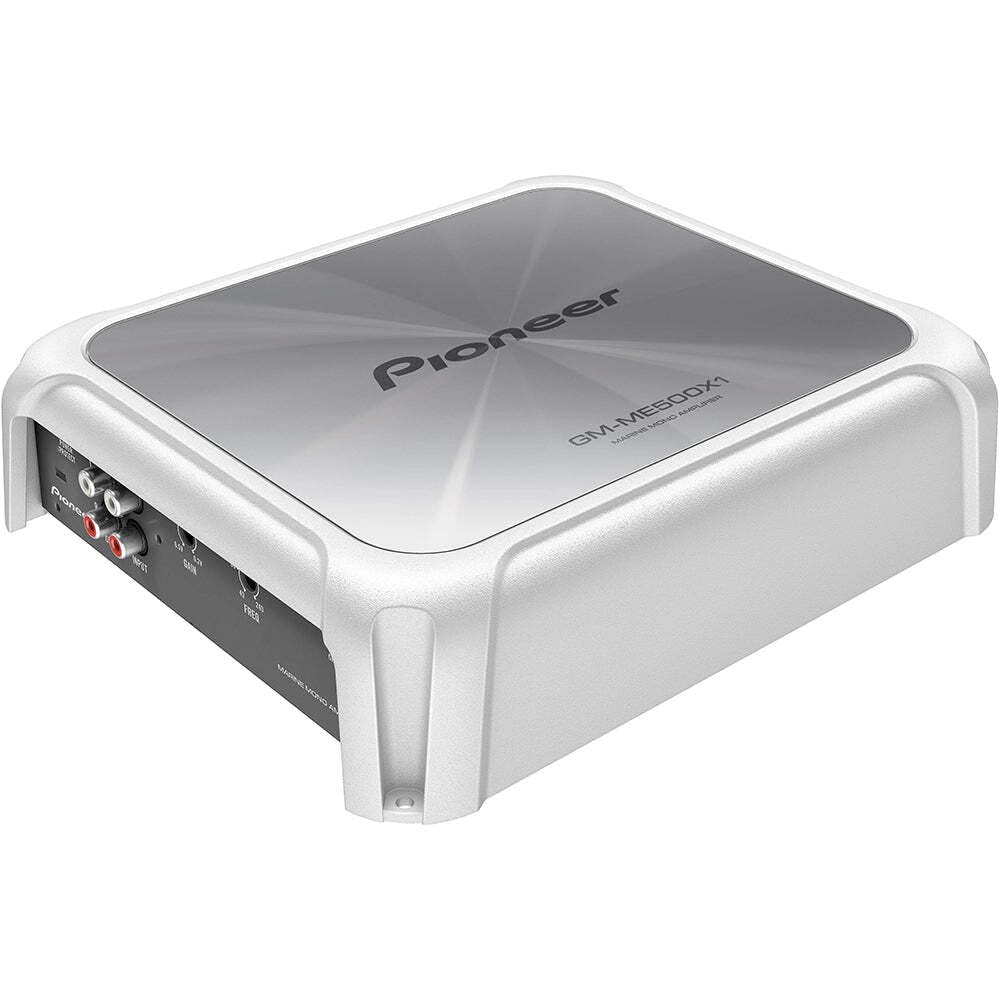

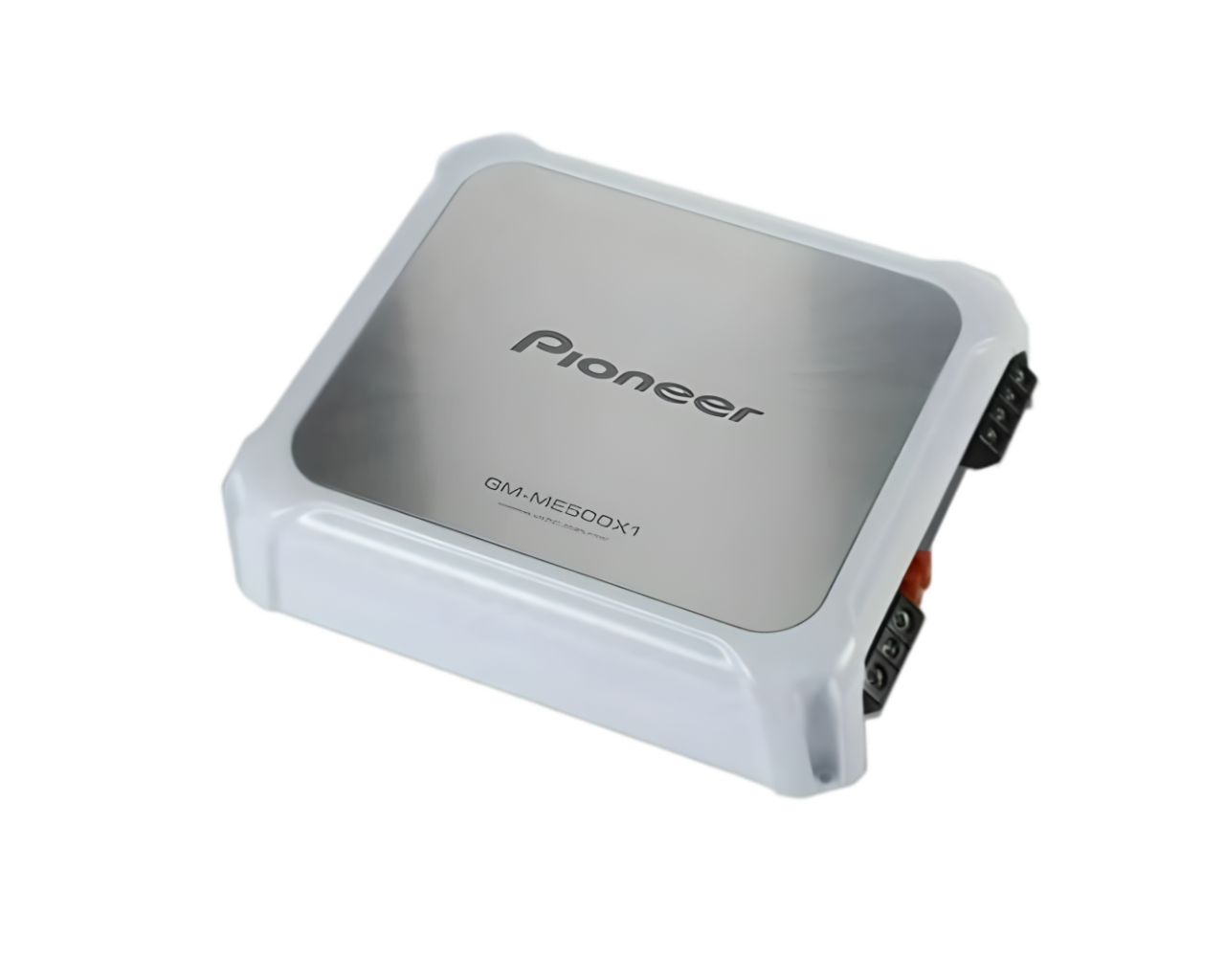

Pioneer GM-ME500X1 Marine Class D Mono Amplifier – 1600W Subwoofer Amplifier with Advanced Features for High-Impact Bass

High-Power Mono Subwoofer Amplifier for Marine Audio Systems
The Pioneer GM-ME500X1 is a high-performance marine subwoofer amplifier designed to provide powerful, deep bass to your marine audio system. With a maximum power output of 1600 watts, this Class D amplifier ensures your subwoofers receive the power they need for impressive low-end response. It’s capable of 300 watts RMS x 1 at 4 ohms, 500 watts RMS x 1 at 2 ohms, and up to 800 watts RMS x 1 at 1 ohm, delivering clear and punchy bass without distortion, even at high volumes. Whether you’re out on the water or in a powersport vehicle, this amplifier will give you the robust bass performance you need.

Advanced Audio Features for Customizable Sound
The GM-ME500X1 offers advanced features to help you fine-tune your bass for optimal sound quality. It includes a variable low-pass filter (40-240 Hz, 12 dB/octave), allowing you to adjust the bass frequencies to suit your preferences. Additionally, the amplifier has a selectable subsonic filter (30 Hz, 24 dB/octave) that helps eliminate unwanted low frequencies, ensuring that only the most impactful bass reaches your subwoofer. With a frequency response range of 10-240 Hz and CTA-2006 compliance, the amplifier ensures a high-quality sound that’s ideal for marine environments.

Durable Marine-Ready Design
Built to withstand the harsh conditions of the marine environment, the Pioneer GM-ME500X1 features conformal-coated circuit boards and rubber covers to protect the internal components. This rugged design ensures that the amplifier is resistant to water, humidity, and salt, making it a perfect choice for use on boats, in powersport vehicles, or even in convertibles. With preamp and speaker-level inputs, this amplifier provides easy integration into any audio system. For optimal installation, 4-gauge power and ground leads are recommended, and the fuse rating is 40A x 2.

 Highlights:

• 1600W Maximum Power Output: Delivers up to 1600W total power for subwoofers, ensuring deep and powerful bass.
• Variable Low-Pass Filter: Allows you to adjust bass frequencies from 40-240 Hz (12 dB/octave) for optimal sound customization.
• Selectable Subsonic Filter: 30 Hz, 24 dB/octave subsonic filter eliminates unwanted low frequencies, keeping your bass clean and tight.
• Multiple Power Ratings: Provides 300 watts RMS at 4 ohms, 500 watts RMS at 2 ohms, and 800 watts RMS at 1 ohm, offering flexibility for different audio setups.
• CTA-2006 Compliant: Offers high-quality sound with a frequency response range of 10-240 Hz, ensuring accurate bass reproduction.
• Durable Marine Construction: Equipped with conformal-coated circuit boards and rubber covers to protect the amplifier from water, dust, and salt exposure.
• Preamp and Speaker-Level Inputs: Offers compatibility with a variety of audio setups, providing easy integration into your system.
• Compact Design: Measures 9-7/8" x 2-3/8" x 8-1/2", making it ideal for marine and powersport installations where space is limited.
• Powerful Performance: High power handling and efficiency make it suitable for driving powerful subwoofers without distortion.
• Easy Installation: 4-gauge power and ground leads are recommended for optimal performance, and the fuse rating of 40A x 2 ensures protection.
